Chapter 30 File Manager
NXC Series User’s Guide
353
Copy Use this button to save a duplicate of a shell script file on the NXC.

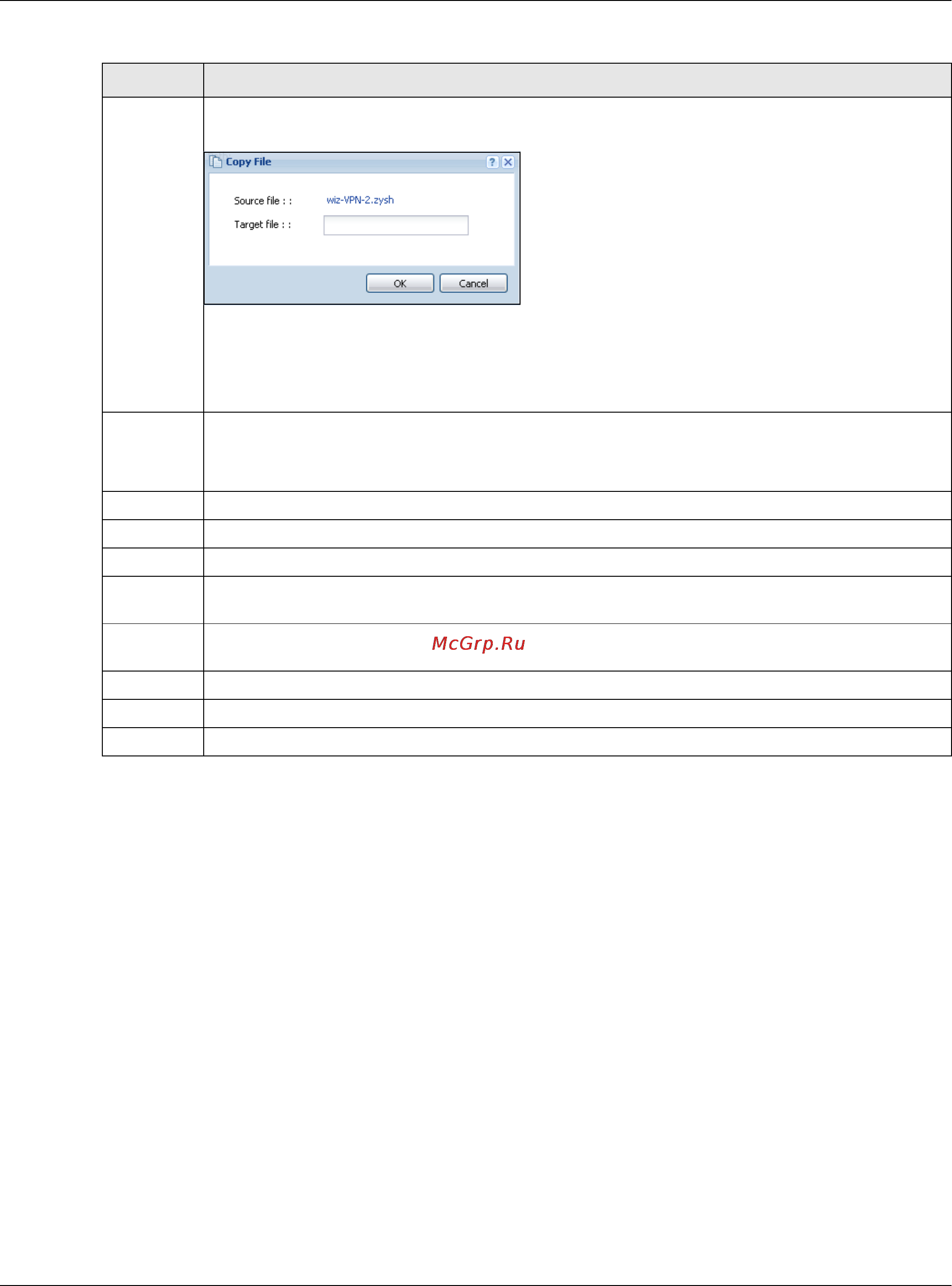

Click a shell script file’s row to select it and click Copy to open the Copy File screen.
Specify a name for the duplicate file. Use up to 25 characters (including a-zA-Z0-
9;‘~!@#$%^&()_+[]{}’,.=-).
Click OK to save the duplicate or click Cancel to close the screen without saving a duplicate of
the configuration file.
Apply Use this button to have the NXC use a specific shell script file.
Click a shell script file’s row to select it and click Apply to have the NXC use that shell script file.
You may need to wait awhile for the NXC to finish applying the commands.
# This column displays the number for each shell script file entry.
File Name This column displays the label that identifies a shell script file.
Size This column displays the size (in KB) of a shell script file.
Last
Modified
This column displays the date and time that the individual shell script files were last changed or
saved.
Upload
Shell Script
The bottom part of the screen allows you to upload a new or previously saved shell script file
from your computer to your NXC.
File Path Type in the location of the file you want to upload in this field or click Browse ... to find it.
Browse... Click Browse... to find the .zysh file you want to upload.
Upload Click Upload to begin the upload process. This process may take up to several minutes.
Table 181 Maintenance > File Manager > Shell Script (continued)
LABEL DESCRIPTION
