Chapter 16 Firewall
NXC Series User’s Guide
189

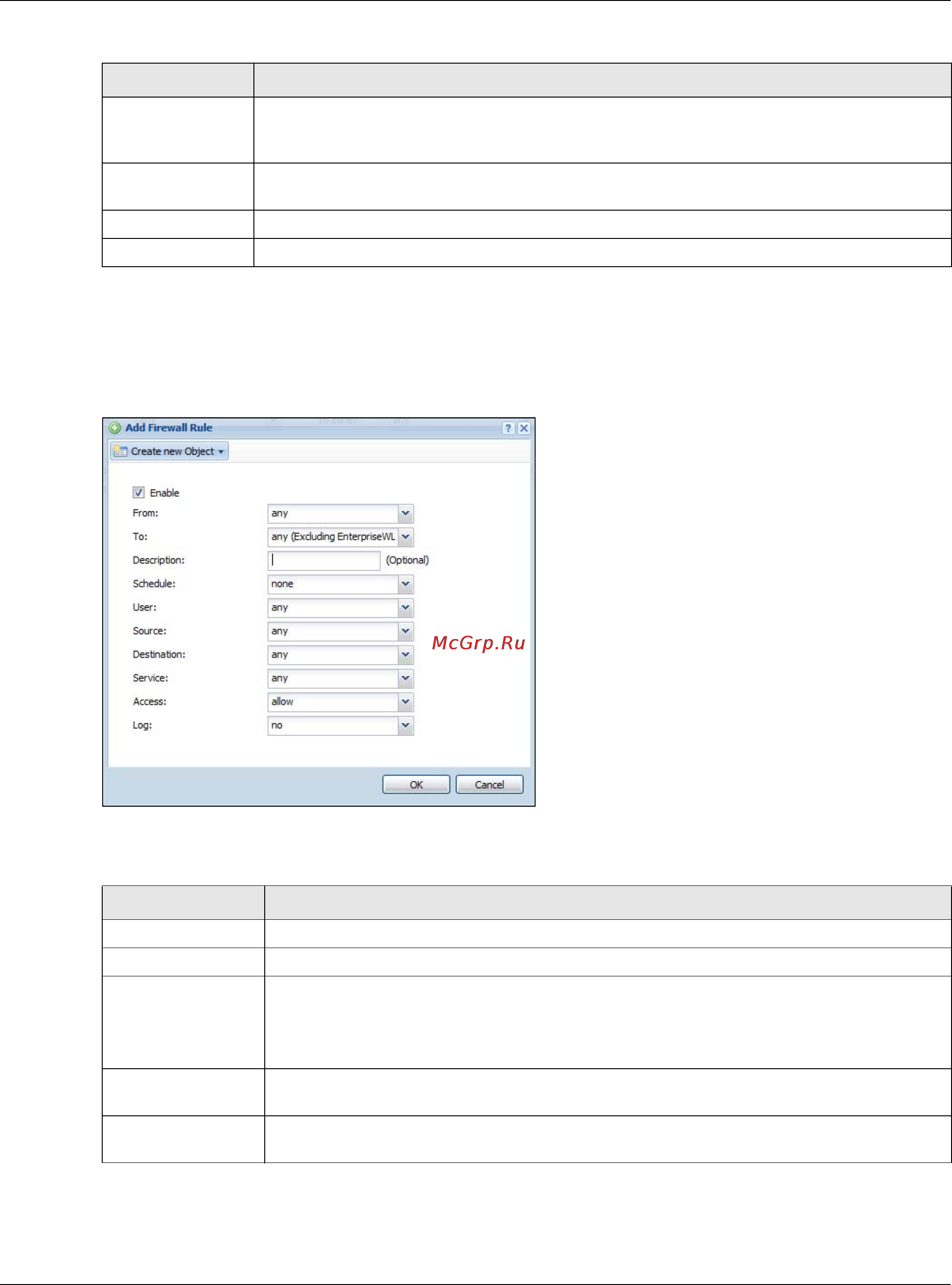

16.2.1 Add/Edit Firewall Screen
In the Firewall screen, click the Edit or Add icon to display this screen.
Figure 105 Configuration > Firewall > Add/Edit
The following table describes the labels in this screen.
Access This field displays whether the firewall silently discards packets (deny), discards packets
and sends a TCP reset packet to the sender (reject) or permits the passage of packets
(allow).
Log This field shows you whether a log (and alert) is created when packets match this rule or
not.
Apply Click Apply to save your changes back to the NXC.
Reset Click Reset to return the screen to its last-saved settings.
Table 92 Configuration > Firewall (continued)
LABEL DESCRIPTION
Table 93 Configuration > Firewall > Add/Edit
LABEL DESCRIPTION
Create new Object Use to configure any new settings objects that you need to use in this screen.
Enable Select this check box to activate the firewall rule.
From
To
For through-NXC rules, select the direction of travel of packets to which the rule applies.
any means all interfaces.
EnterpriseWLAN means packets destined for the NXC itself.
Description Enter a descriptive name of up to 60 printable ASCII characters for the firewall rule.
Spaces are allowed.
Schedule Select a schedule that defines when the rule applies. Otherwise, select none and the
rule is always effective.
