Chapter 23 Schedules
NXC Series User’s Guide
252
23.2.1 Add/Edit Schedule One-Time Rule
The Add/Edit Schedule One-Time Rule screen allows you to define a one-time schedule or edit
an existing one. To access this screen, go to the Schedule screen and click either the Add icon or
an Edit icon in the One Time section.

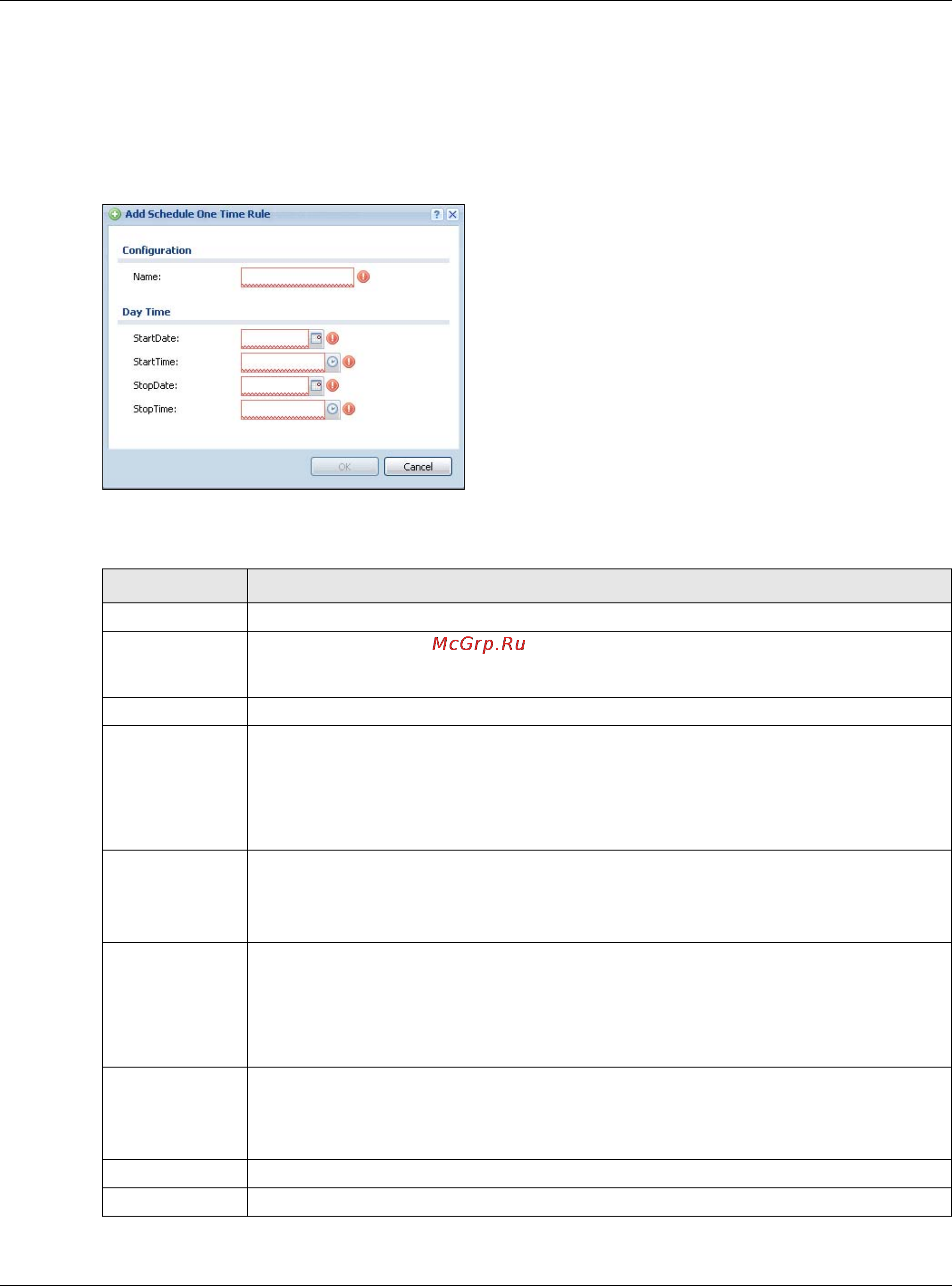

Figure 145 Configuration > Object > Schedule > Add/Edit (One-Time)
The following table describes the labels in this screen.
Table 132 Configuration > Object > Schedule > Add/Edit (One-Time)
LABEL DESCRIPTION
Configuration
Name Type the name used to refer to the one-time schedule. You may use 1-31 alphanumeric
characters, underscores(
_), or dashes (-), but the first character cannot be a number. This
value is case-sensitive.
Date Time
StartDate Specify the year, month, and day when the schedule begins.
Year - 1900 - 2999
Month - 1 - 12
Day - 1 - 31 (it is not possible to specify illegal dates, such as February 31.)
StartTime Specify the hour and minute when the schedule begins.
Hour - 0 - 23
Minute - 0 - 59
StopDate Specify the year, month, and day when the schedule ends.
Year - 1900 - 2999
Month - 1 - 12
Day - 1 - 31 (it is not possible to specify illegal dates, such as February 31.)
StopTime Specify the hour and minute when the schedule ends.
Hour - 0 - 23
Minute - 0 - 59
OK Click OK to save your changes back to the NXC.
Cancel Click Cancel to exit this screen without saving your changes.
