Chapter 14 Captive Portal
NXC Series User’s Guide
166

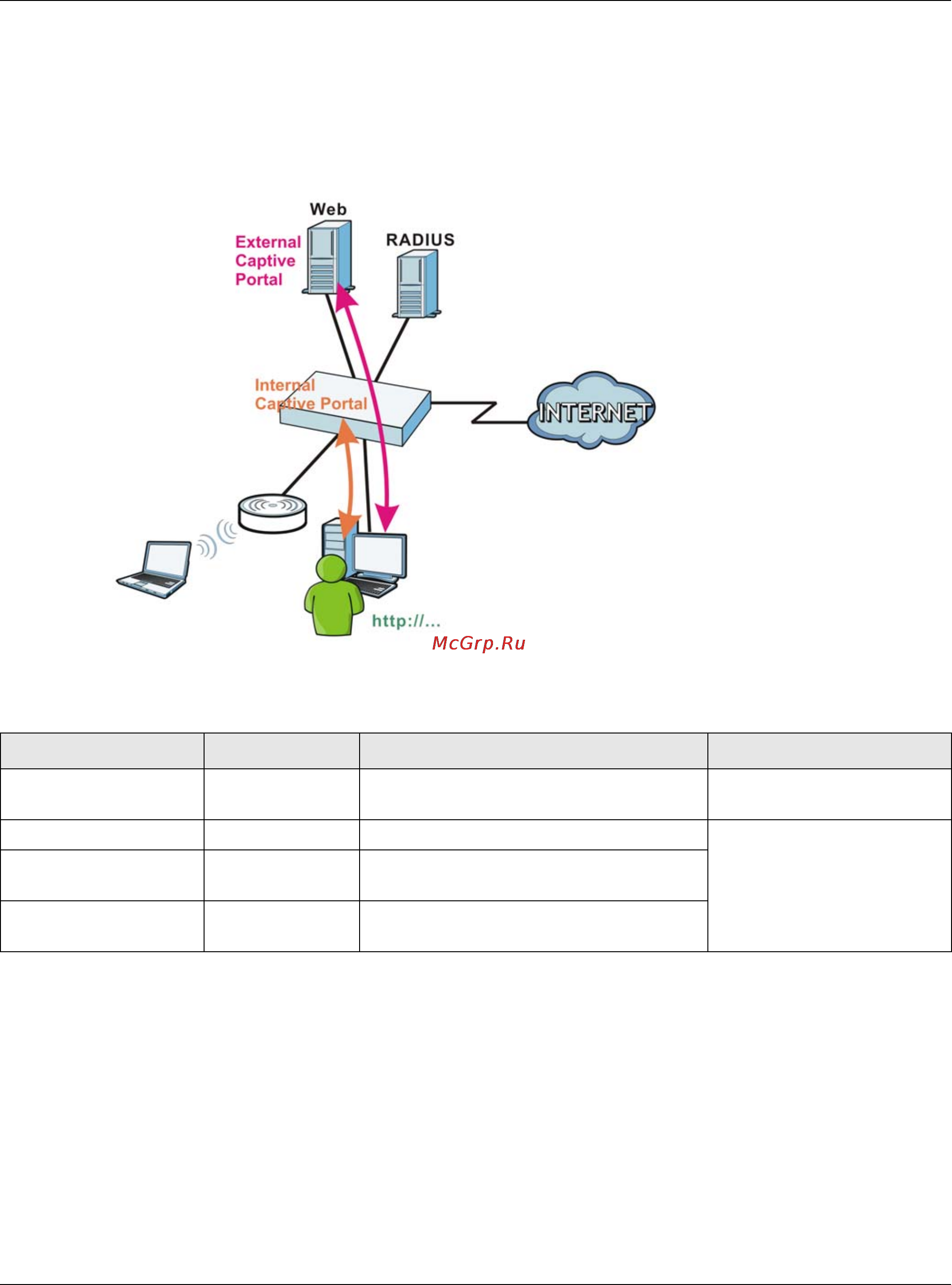

14.1.1 Captive Portal Type
The NXC allows you to use either an internal captive web portal (built into the NXC) or external
captive web portal (on an external web server). You can even customize the portal page(s). See
Section 14.3.1 on page 175 and Section 14.3.2 on page 177 for portal pages details.
The following table shows you the differences between available web portal options.
14.1.2 What You Can Do in this Chapter
•The Captive Portal screen (Section 14.2 on page 167) configures which HTTP-based network
services default to the captive portal page when a client makes an initial network connection.
•The Login Page screen (Section 14.3 on page 173) assigns a default login page or create a
customized one.
Table 82 Captive Portal Options
OPTION PORTAL TYPE USER-DEFINED PORTAL PAGES WHERE TO CONFIGURE
External Web Portal External Login, Logout, Welcome, Session,
Error
Captive Portal > Captive
Portal
Default Login Page Internal N/A
Captive Portal > Login
Page
Customized Login
Page
Internal Login, Access
Uploaded Web Portal
File
Internal Login, Logout, Welcome, Session,
Error
