Chapter 7 Wireless
NXC Series User’s Guide
93
7.2 Controller
Use this screen to set how the NXC allows new APs to connect to the network. Click Configuration
> Wireless > Controller to access this screen.

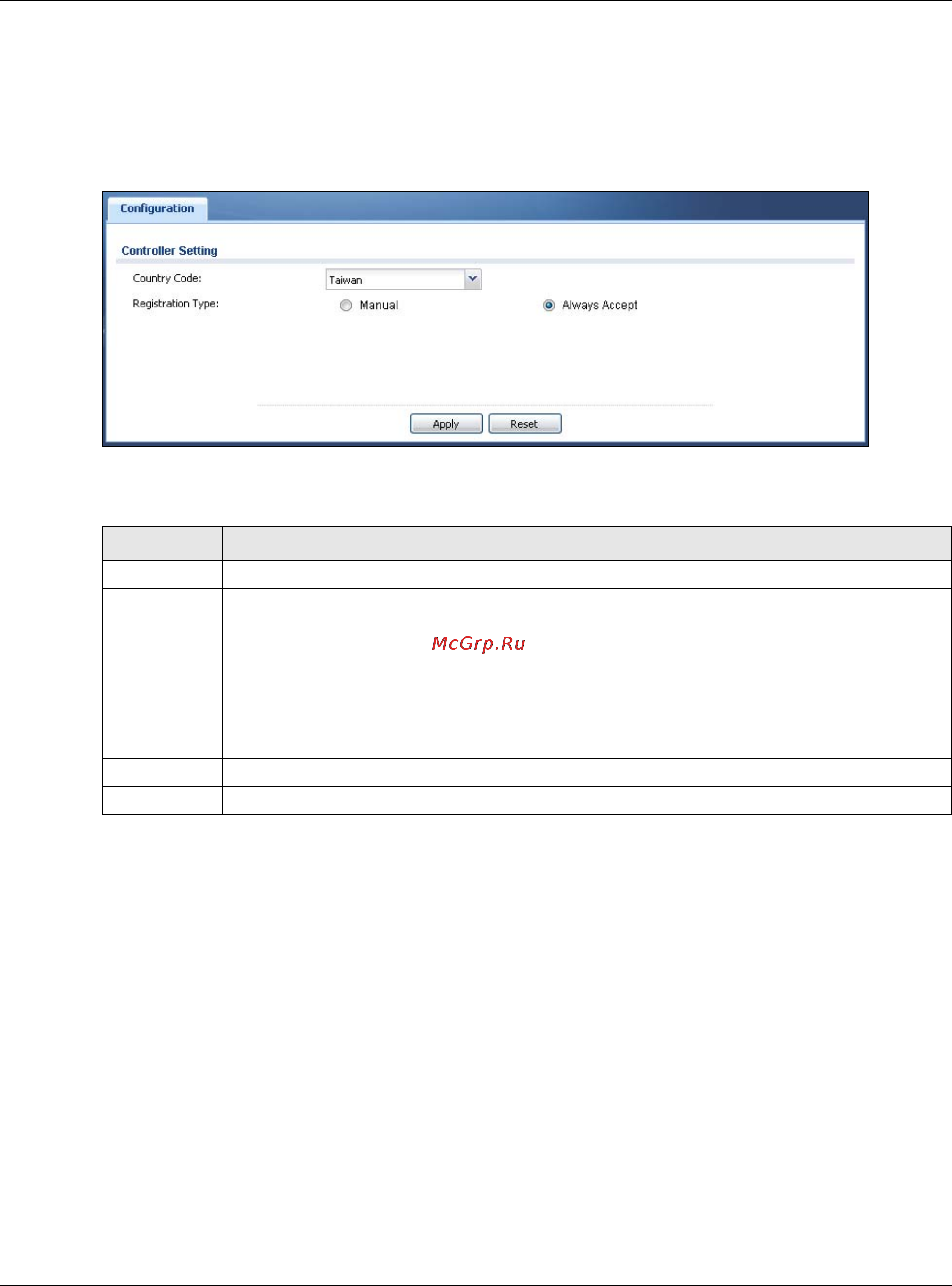

Figure 45 Configuration > Wireless > Controller
Each field is described in the following table.
Table 47 Configuration > Wireless > Controller
LABEL DESCRIPTION
Country Code Select the country where the NXC is located/installed.
Registration
Type
Select Manual to add each AP to the NXC for management, or Always Accept to
automatically add APs to the NXC for management.
Note: Select the Manual option for managing a specific set of APs. This is recommended as the
registration mechanism cannot automatically differentiate between friendly and rogue
APs. For details on how to handle rogue APs, see Section 5.15 on page 83.
APs must be connected to the NXC by a wired connection or network.
Apply Click Apply to save your changes back to the NXC.
Reset Click Reset to return the screen to its last-saved settings.
