Chapter 5 Monitor
NXC Series User’s Guide
68

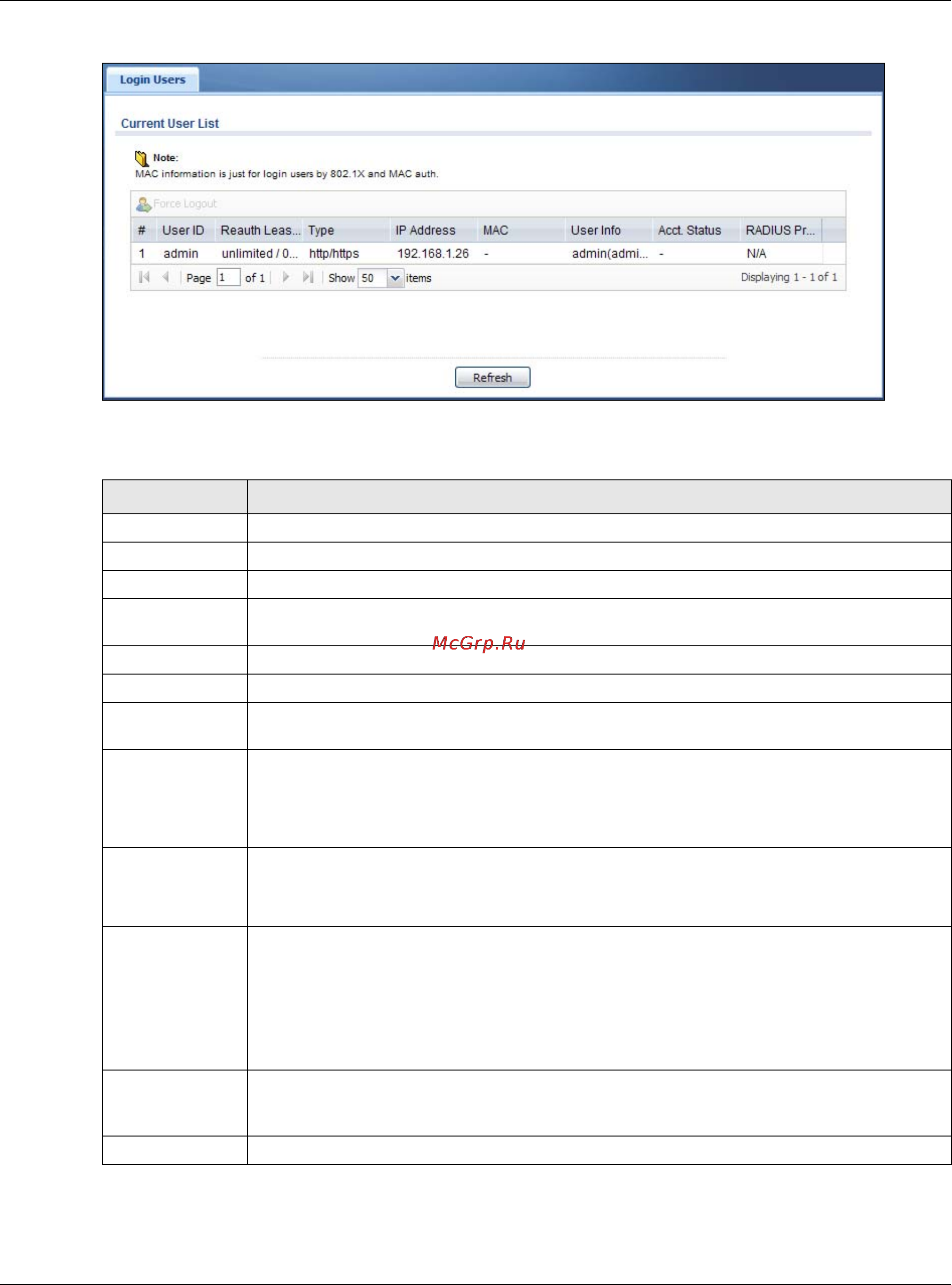

Figure 30 Monitor > System Status > Login Users
The following table describes the labels in this screen.
Table 31 Monitor > System Status > Login Users
LABEL DESCRIPTION
Force Logout Select a user ID and click this icon to end a user’s session.
# This field is a sequential value and is not associated with any entry.
User ID This field displays the user name of each user who is currently logged in to the NXC.
Reauth Lease T. This field displays the amount of reauthentication time remaining and the amount of lease
time remaining for each user. See Chapter 17 on page 194.
Type This field displays the way the user logged in to the NXC.
IP address This field displays the IP address of the computer used to log in to the NXC.
MAC For an IEEE 802.1x or MAC authentication login, this field displays the MAC address of the
user’s computer. A “-” displays for other types of login.
User Info This field displays the types of user accounts the NXC uses.
If the user type is ext-user (external user), this field will show its external-group
information when you move your mouse over it. If the external user matches two external-
group objects, both external-group object names will be shown.
Authenticator This field displays the IP address of the authenticator that helps clients to log in with a QR
code.
A “-” displays if the user logged in without an authenticator’s help.
Acct. Status For a captive portal login, this field displays the accounting status of the account used to
log into the NXC.
Accounting-on means accounting is being performed for the user login.
Accounting-off means accounting has stopped for this user login.
A “-” displays if accounting is not enabled for this login.
RADIUS Profile
Name
This field displays the name of the RADIUS profile used to authenticate the login through
the captive portal. N/A displays for logins that do not use the captive portal and RADIUS
server authentication.
Refresh Click this button to update the information in the screen.
