NXC Series User’s Guide
28
CHAPTER 3
The Web Configurator
3.1 Overview
The NXC Web Configurator allows easy management using an Internet browser.
In order to use the Web Configurator, you must:
• Use Internet Explorer 7.0 and later versions, Mozilla Firefox 9.0 and later versions, Safari 4.0 and
later versions, or Google Chrome 10.0 and later versions.
• Allow pop-up windows
• Enable JavaScript (enabled by default)
• Enable Java permissions (enabled by default)
• Enable cookies
The recommended screen resolution is 1024 x 768 pixels and higher.
3.2 Access
1 Make sure your NXC hardware is properly connected. See the Quick Start Guide.

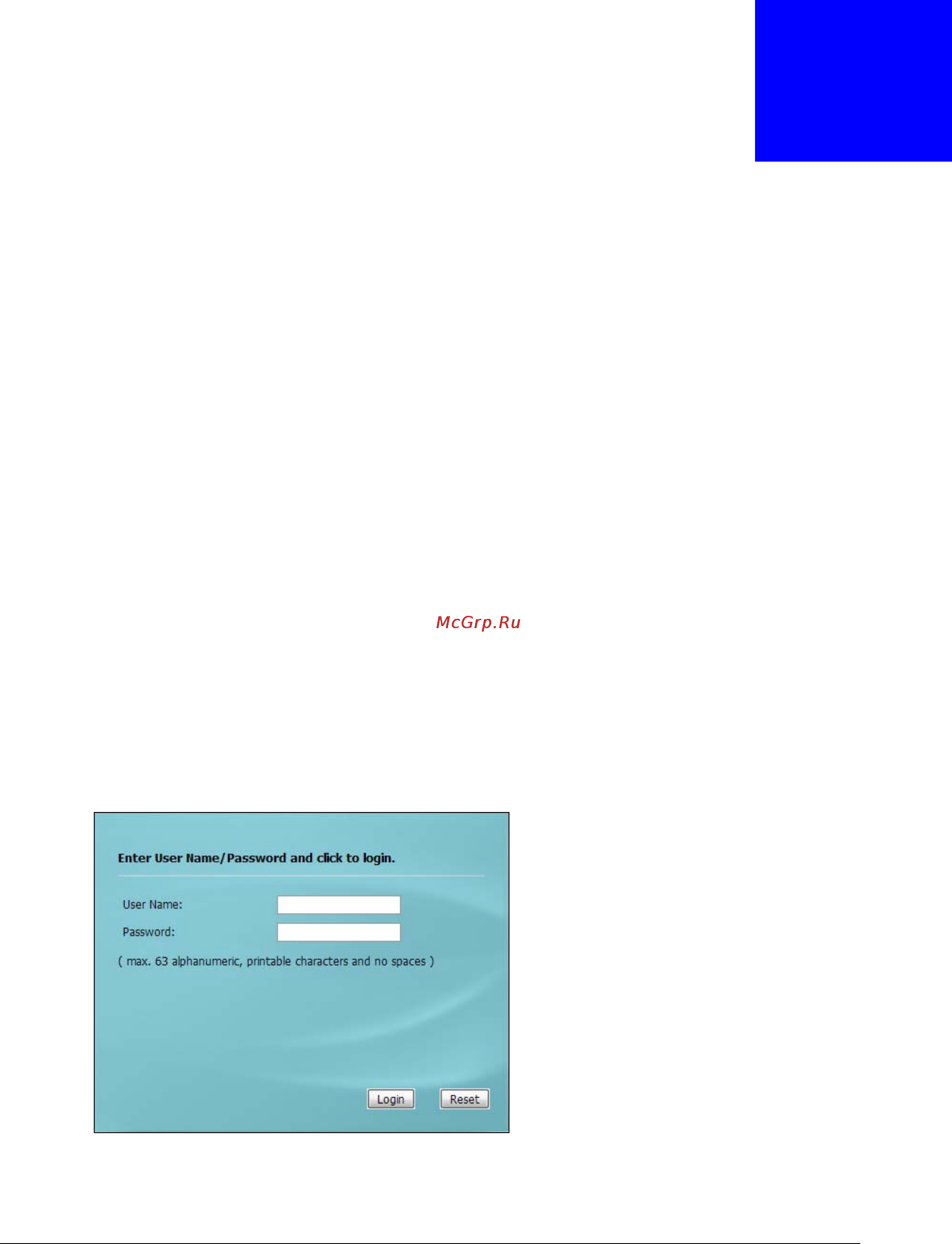

2 Browse to http://192.168.1.1. The Login screen appears.
3 Enter the user name (default: “admin”) and password (default: “1234”).
