Chapter 3 The Web Configurator
NXC Series User’s Guide
35

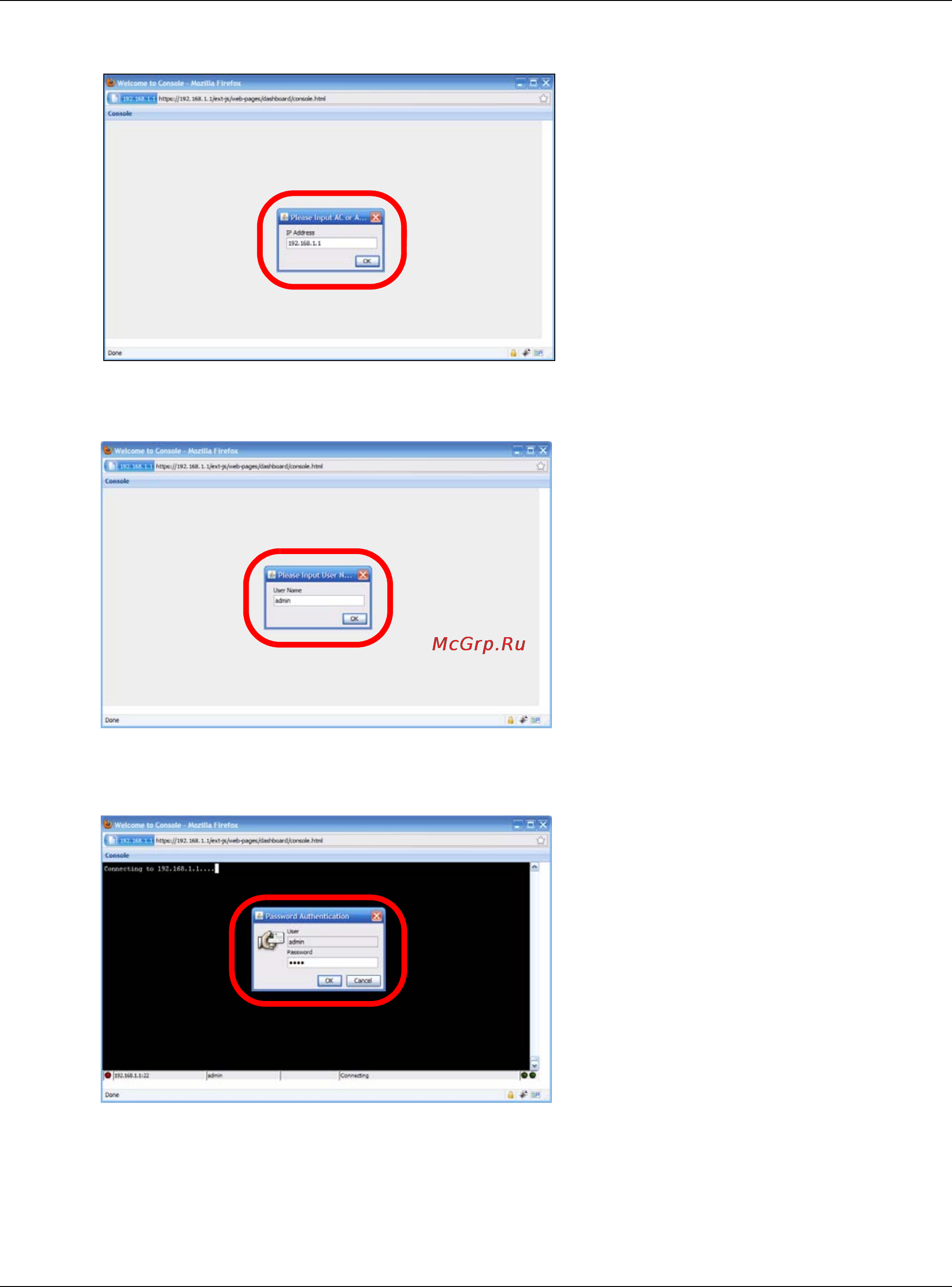

2 Enter the IP address of the NXC and click OK.
3 Next, enter the User Name of the account being used to log into your target device and then click
OK.
4 You may be prompted to authenticate your account password, depending on the type of device that
you are logging into. Enter the password and click OK.
