Appendix C Importing Certificates
NXC Series User’s Guide
422

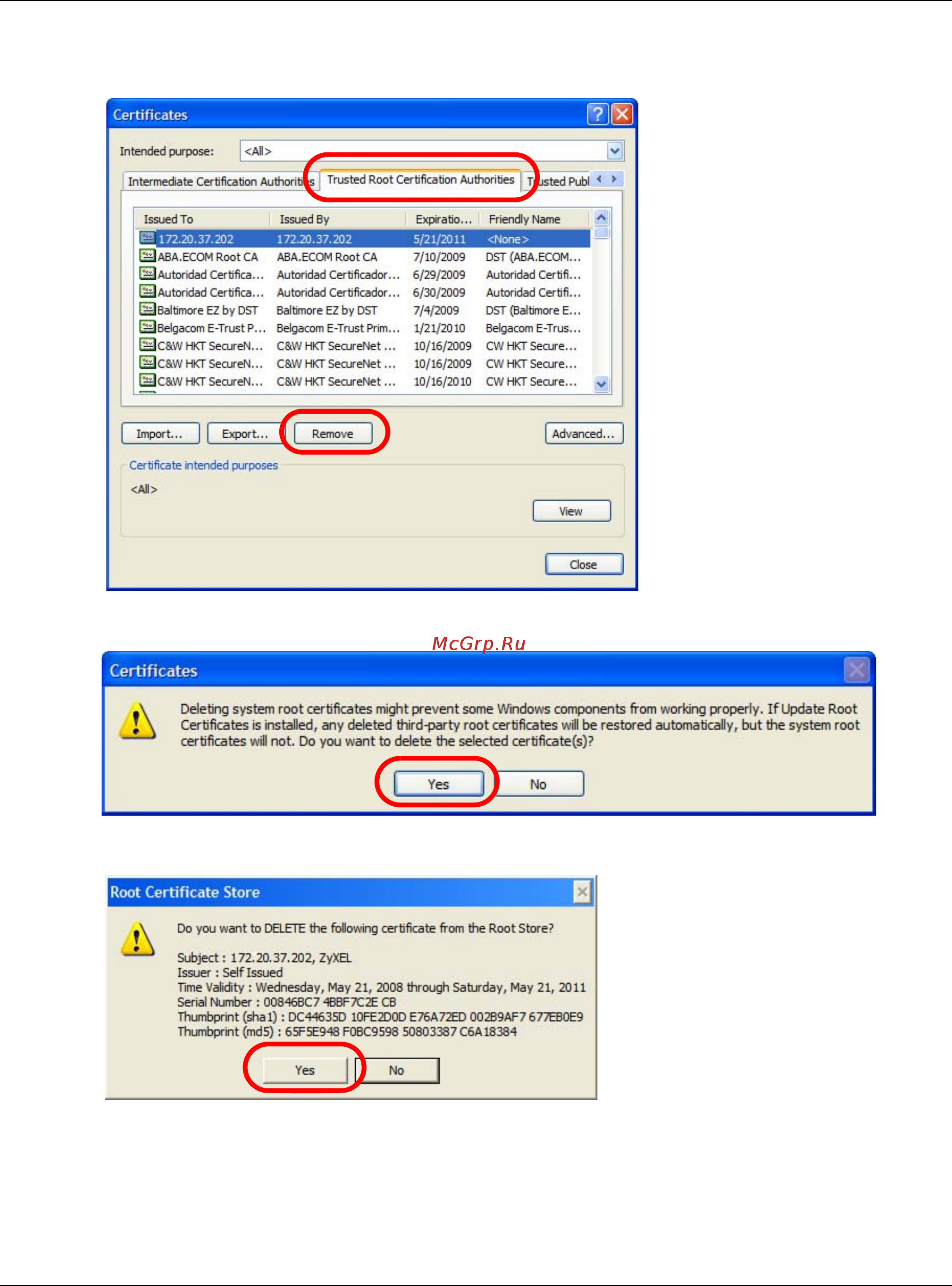

3 In the Certificates dialog box, click the Trusted Root Certificates Authorities tab, select the
certificate that you want to delete, and then click Remove.
4 In the Certificates confirmation, click Yes.
5 In the Root Certificate Store dialog box, click Yes.
6 The next time you go to the web site that issued the public key certificate you just removed, a
certification error appears.
