Chapter 14 Captive Portal
NXC Series User’s Guide
176

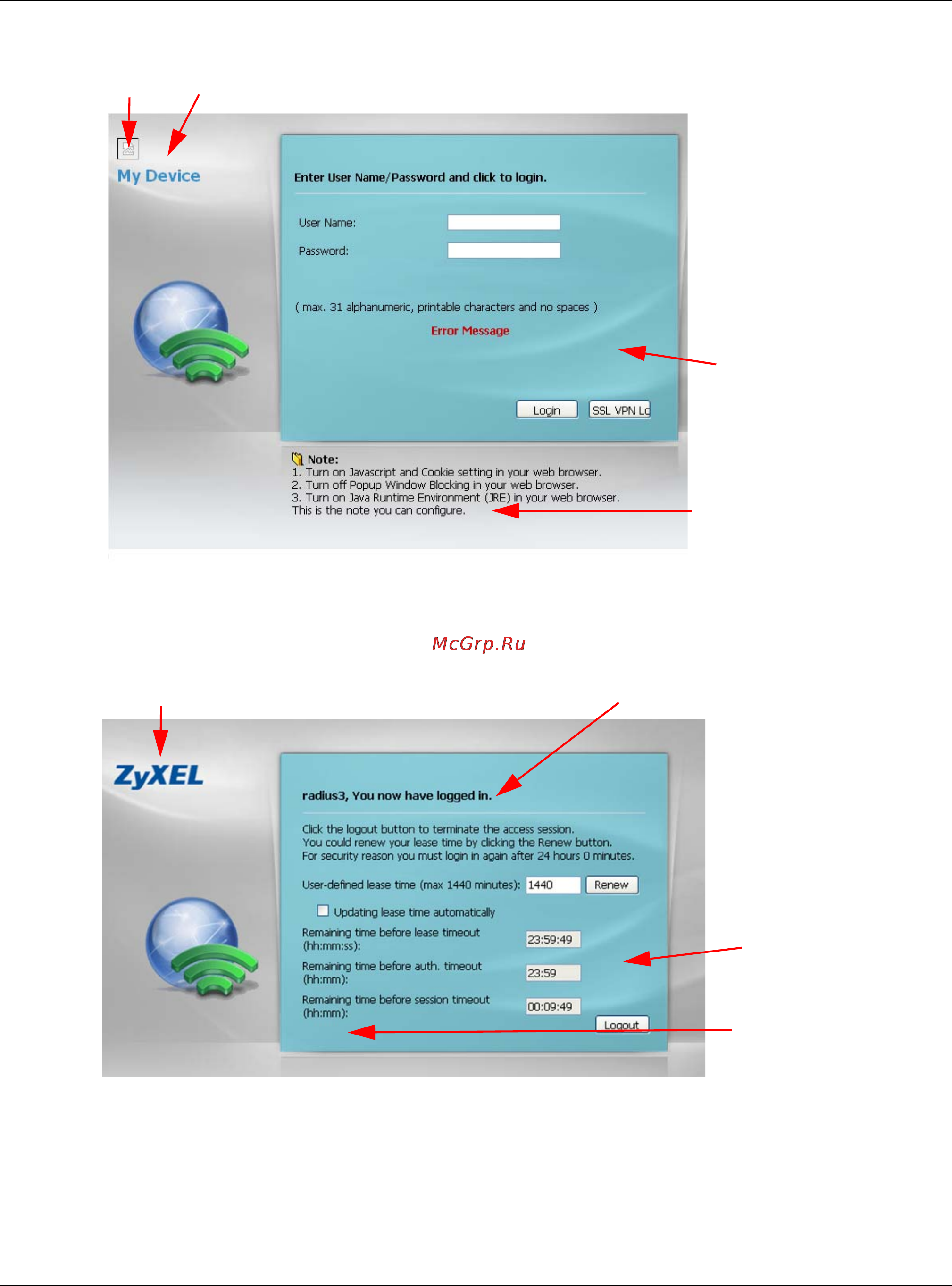

Figure 93 Login Page Customization
Figure 94 Access Page Customization
Logo
Title
Message Color
Note Message
Background
(last line of text)
(color of all text)
Logo
Title
Message Color
Note Message
(last line of text)
(color of all text)
Background
