Chapter 28 System
NXC Series User’s Guide
312

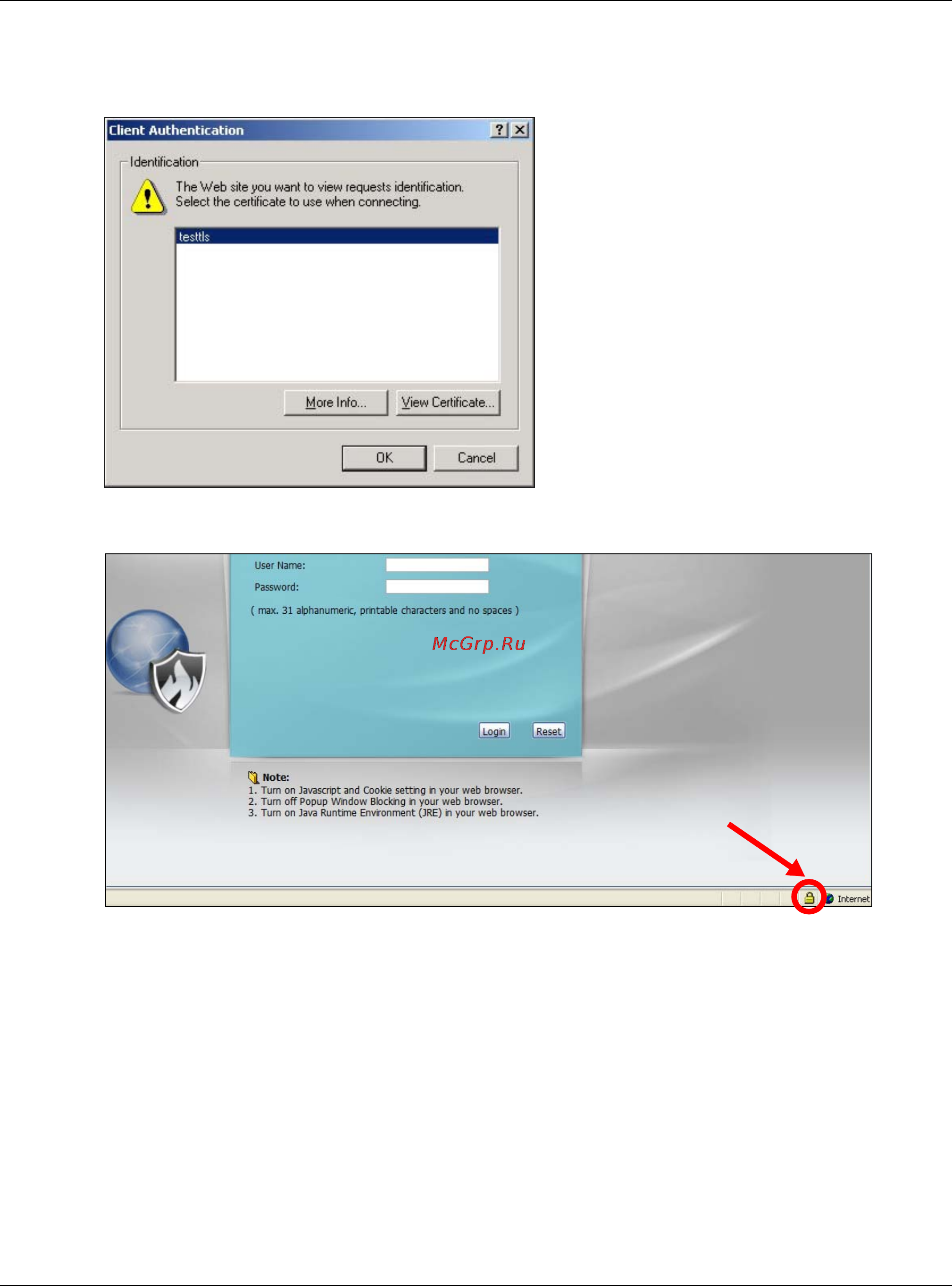

2 When Authenticate Client Certificates is selected on the NXC, the following screen asks you to
select a personal certificate to send to the NXC. This screen displays even if you only have a single
certificate as in the example.
3 You next see the Web Configurator login screen.
28.8 SSH
You can use SSH (Secure SHell) to securely access the NXC’s command line interface. Specify which
zones allow SSH access and from which IP address the access can come.
SSH is a secure communication protocol that combines authentication and data encryption to
provide secure encrypted communication between two hosts over an unsecured network. In the
following figure, computer A on the Internet uses SSH to securely connect to the WAN port of the
NXC for a management session.
