Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
102
Scroll down to UTM Profile, select Anti-Virus and select a profile from the list box (EICAR in this
example).

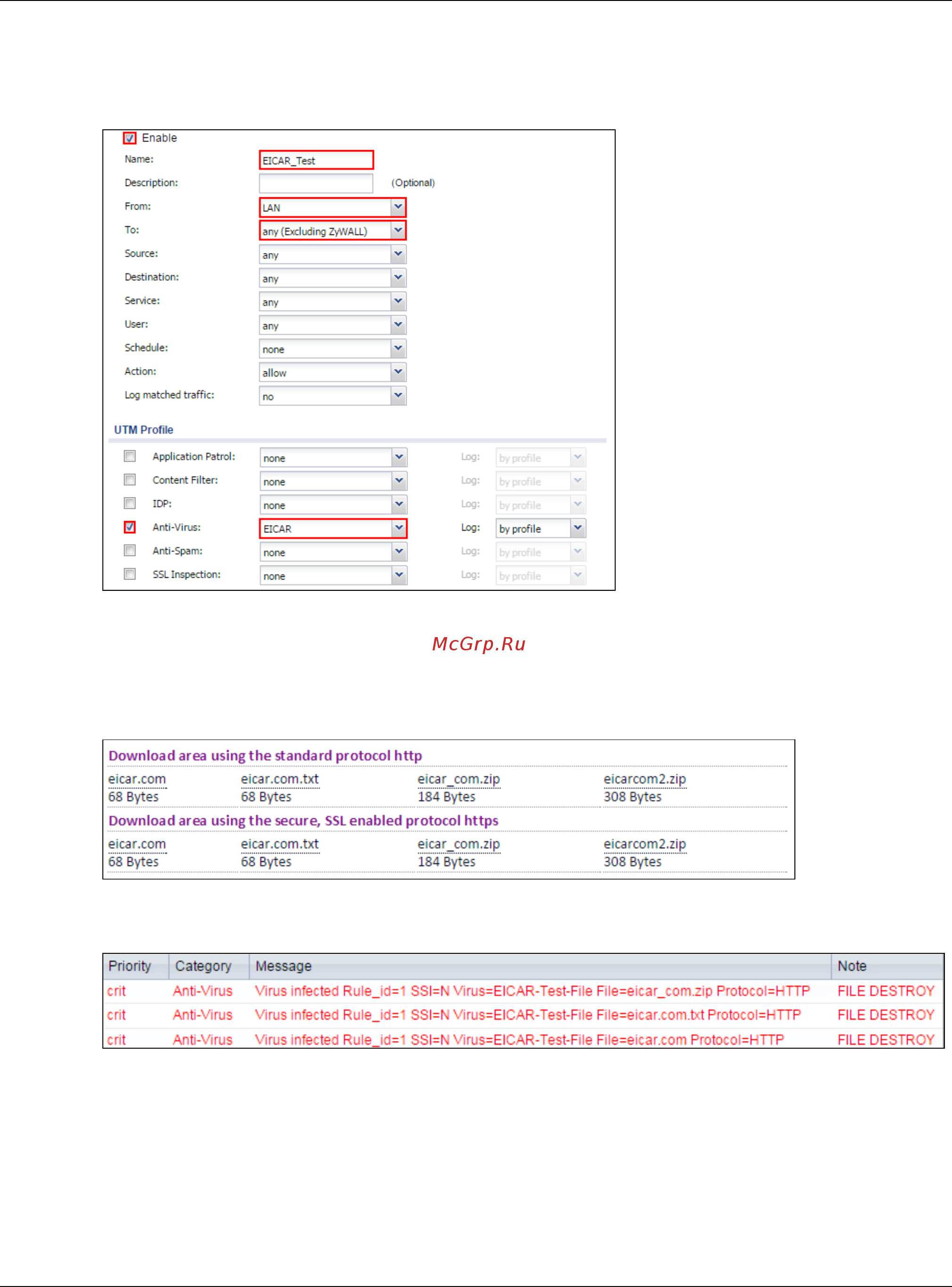

Figure 194 CONFIGURATION > Security Policy > Policy Control
3.10.3 Test the Result
1 Download EICAR Malware File for testing the result: http://www.eicar.org/85-0-Download.html
Figure 195 Download EICAR Malware File for Testing
2 Go to the ZyWALL/USG Monitor > Log to see [crit] log message such as below.
Figure 196 Monitor > Log
3.10.4 What Could Go Wrong?
1 If you are not able to see the Log message, the EICAR virus file might be detected and blocked by
other Anti-Virus software before ZyWALL/USG scans the virus file.
2 If you are not be able to configure any Anti-Virus policies or it’s not working, there are two
possible reasons:
