Chapter 1 Set Up Your Network
ZyWALL/USG Series Handbook
29
1.3 How to Let a Server Use the Same Public IP Address as
the WAN Interface Using the Bridge Interface
This is an example of using ZyWALL/USG to configure an internal server in bridge mode without
applying network address translation (NAT). The Internet users can reach this server directly by its
public IP address.

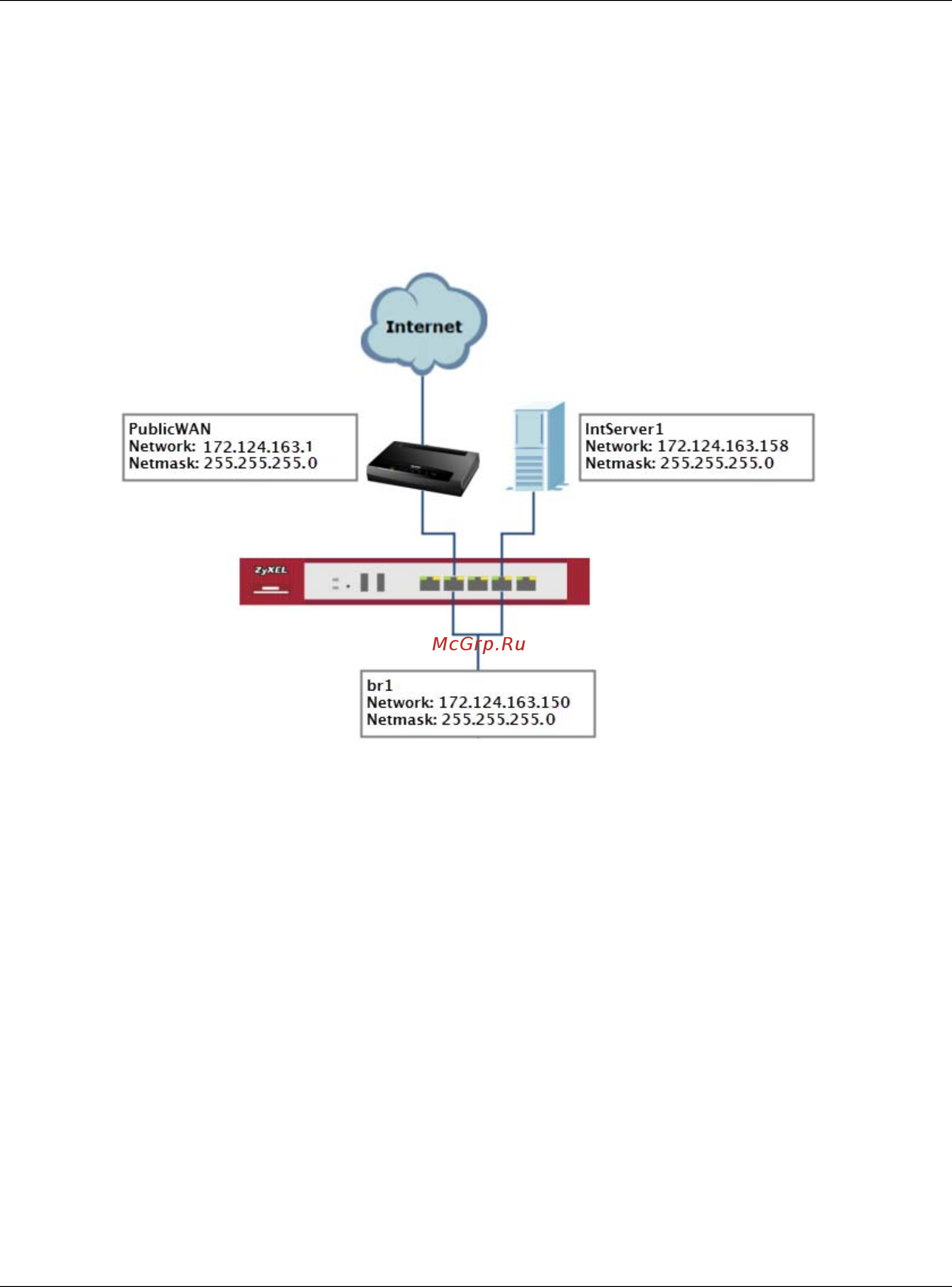

Figure 25 ZyWALL/USG with Bridge Interface Example
Note: All network IP addresses and subnet masks are used as examples in this article.
Please replace them with your actual network IP addresses and subnet masks. This
example was tested using USG310 (Firmware Version: ZLD 4.13).
