Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
160
4.6.2 Set Up the IPSec VPN Tunnel on the SonicWALL
1 In the SonicWALL VPN > Settings > VPN Policies, click Add to create a new VPN policy. Select
Policy Type to be the Site to Site, select Authentication Method to be the IKE using
Preshared Secret. Type the ZyWALL/USG's WAN IP Address to be the IPsec Primary Gateway
Name or Address (in the example, 172.10.120.11).
In the IKE Authentication section, set the Shared Secret to be the same as your ZyWALL/USG’s
Pre-Shared Key. Then, set the Local IKE ID and the Peer IKE ID to match your ZyWALL/USG’s
VPN Gateway > Show Advanced Settings > Authentication > Local ID Type and Peer ID
Type.

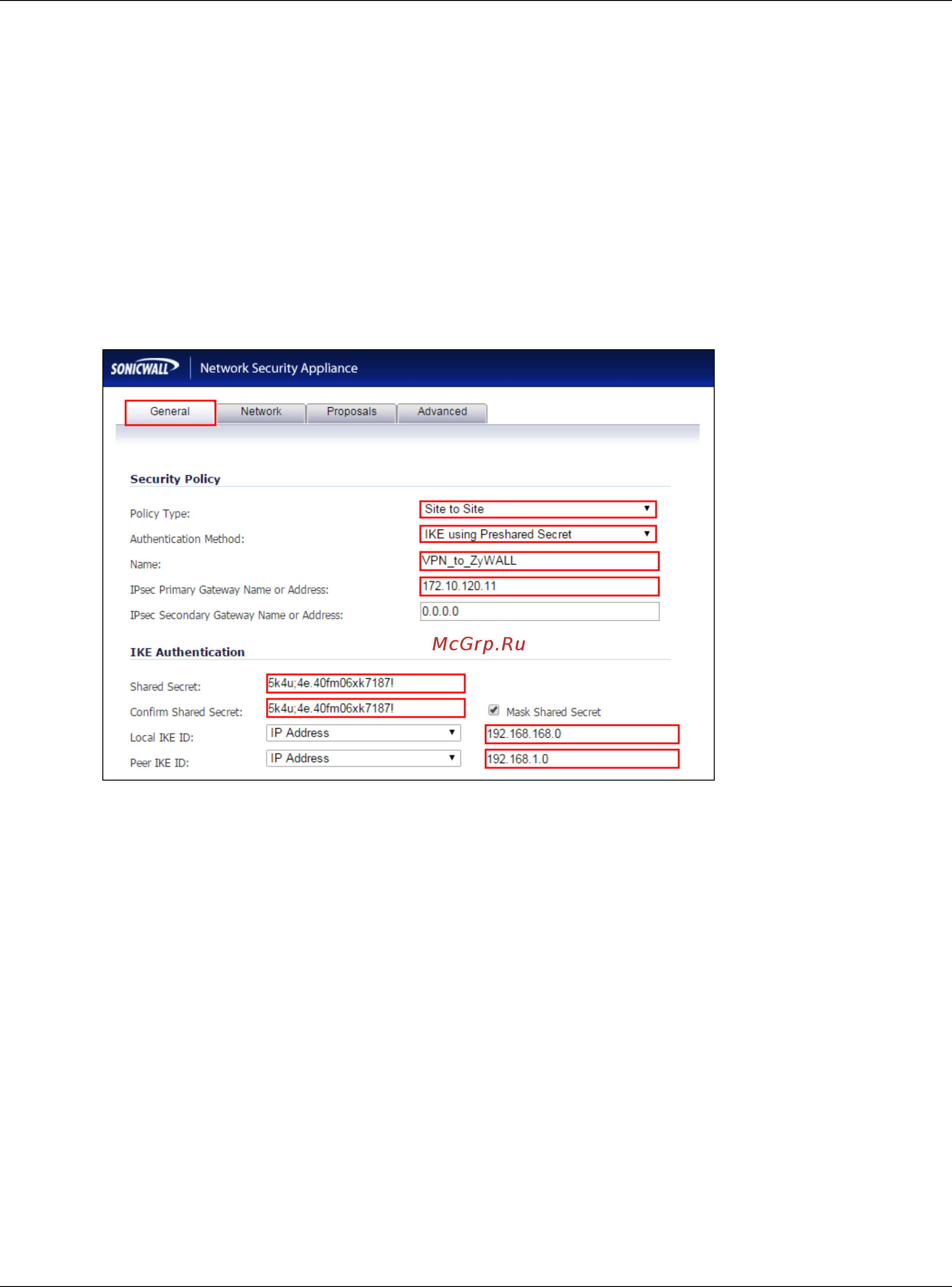

Figure 334 VPN > Settings > VPN Policies > General
