Chapter 8 Maintain Your Device
ZyWALL/USG Series Handbook
324
8.2 How to Manage ZyWALL/USG Firmware
This is an example of using ZyWALL/USG to check your current firmware version and upload
firmware to the ZyWALL/USG. You can upload firmware to be the Running firmware or Standby
firmware.

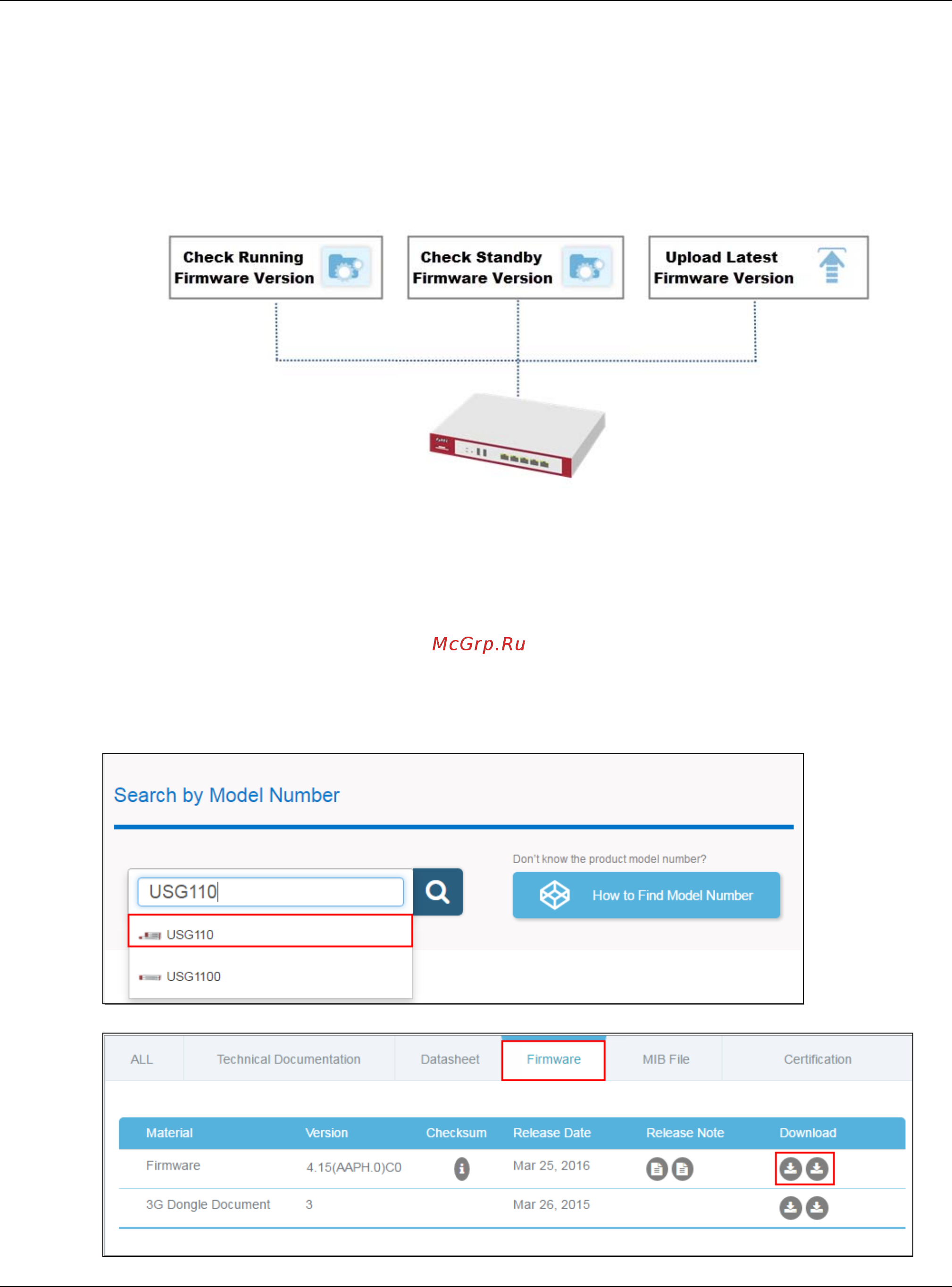

Figure 692 ZyWALL/USG with Firmware Management Example
Note: The firmware update can take up to five minutes. Do not turn off or reset the
ZyWALL/USG while the firmware update is in progress. This example was using
USG110 (Firmware Version: ZLD 4.15).
8.2.1 Download the Current Firmware Version from ZyXEL.com
1 Go to www.zyxel.com/support/download_landing.shtml and download the current firmware
package.
Figure 693 Search Model
Figure 694 Download Firmware Zip File
