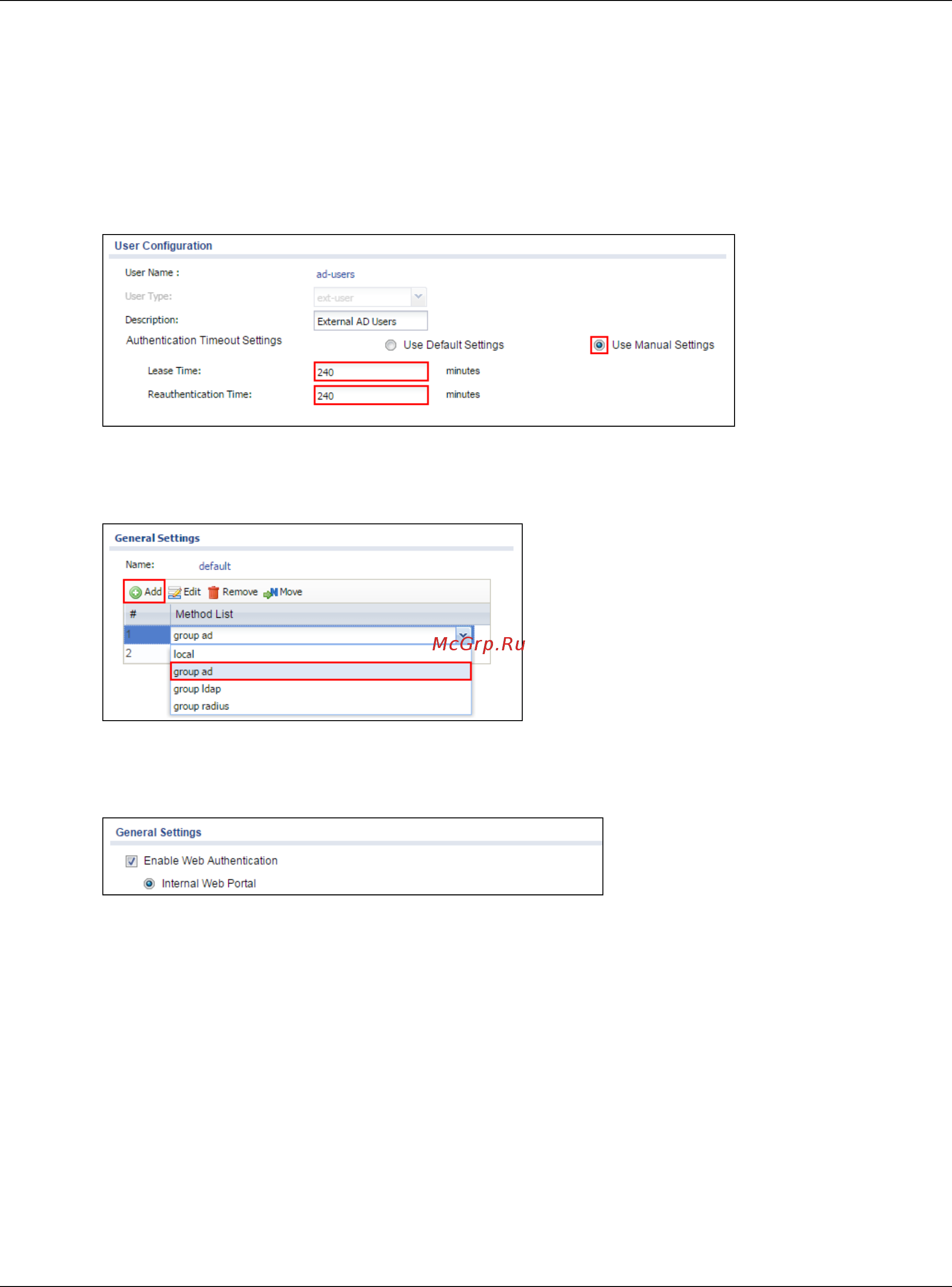

Chapter 2 Set Up WiFi
ZyWALL/USG Series Handbook
44
2.3.1 Set Up the Wi-Fi Guest Account and Authentication Method on the
ZyWALL/USG
1 In the ZyWALL/USG, go to CONFIGURATION > Object > User/Group > User > ad-users, set
the Authentication Timeout Settings to Use Manual Settings and enter the number of minutes
this user has to renew the current session before the user is logged out.
Figure 58 CONFIGURATION > Object > User/Group > User > ad-users
2 In the ZyWALL/USG, go to CONFIGURATION > Object > Authentication Method > default >
Edit Authentication Method default, click Add to insert group ad in the table. Click OK.
Figure 59 CONFIGURATION > Object > User/Group > User > ad-users
3 In the ZyWALL/USG, go to CONFIGURATION > Web Authentication > General Settings and
select Enable Web Authentication.
Figure 60 CONFIGURATION > Web Authentication > General Settings
