Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
81
5 Leave all UTM Profiles disabled.

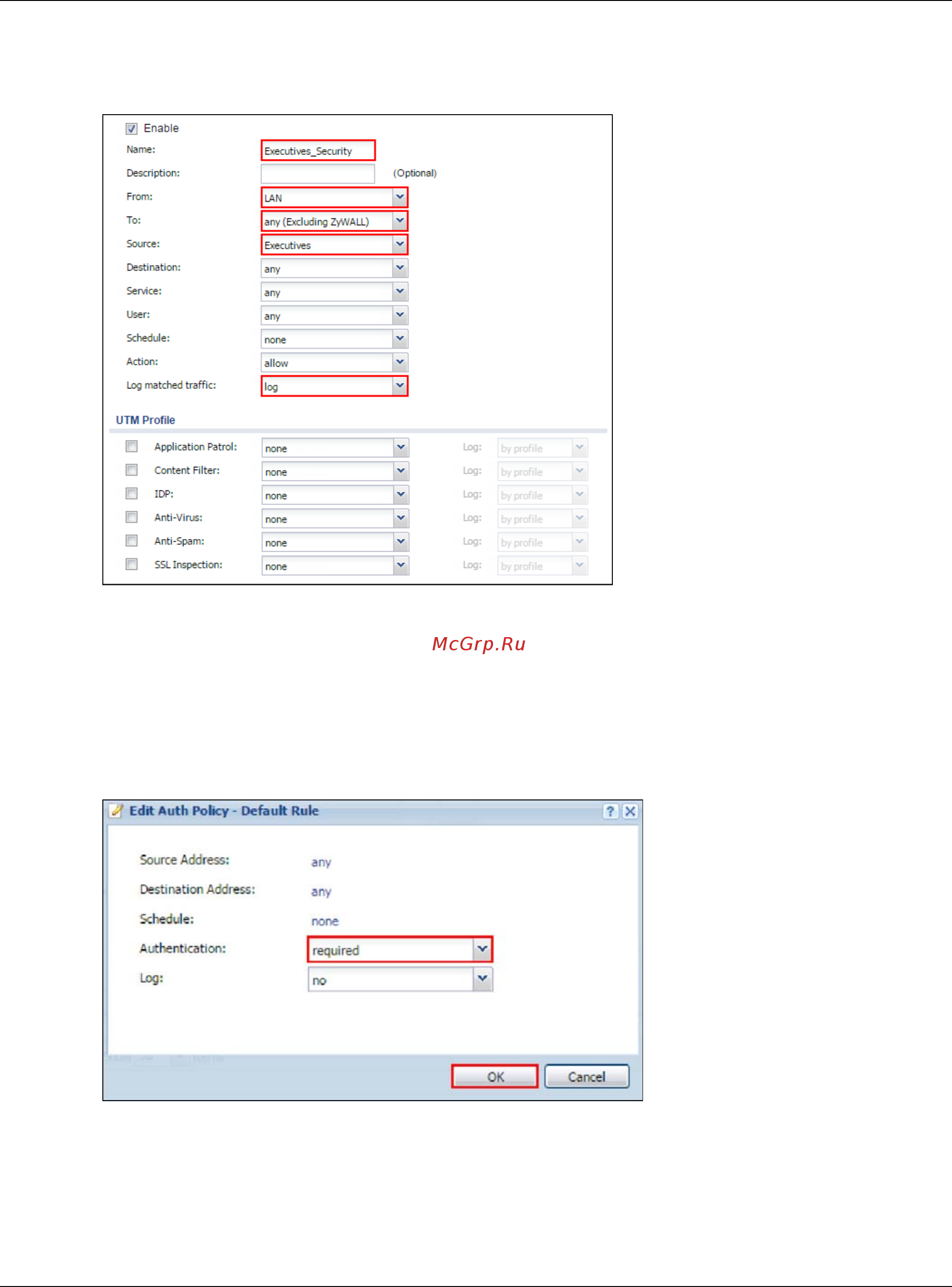

Figure 141 CONFIGURATION > Security Policy > Policy Control > Add corresponding >
Executives_Security
3.6.3 Set Up the Web Authentication on the ZyWALL/USG
1 In the ZyWALL/USG, go to CONFIGURATION > Web Authentication > Web Authentication
Policy Summary > Edit to configure policy to redirect HTTP traffic to the user login screen. Set
the Authentication to be required.
Figure 142 CONFIGURATION > Web Authentication > Web Authentication Policy Summary
> Edit
