Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
200
4.8.13 Spoke_Branch_B
1 Go to CONFIGURATION > VPN > IPSec VPN > VPN Gateway, select Enable. Type the VPN
Gateway Name used to identify this VPN gateway.
Then, configure the Secure Gateway IP as the Hub_HQ’s Gateway IP address (in the example,
172.16.10.1). Type a secure Pre-Shared Key (8-32 characters) which must match your
Hub_HQ’s Pre-Shared Key and click OK.

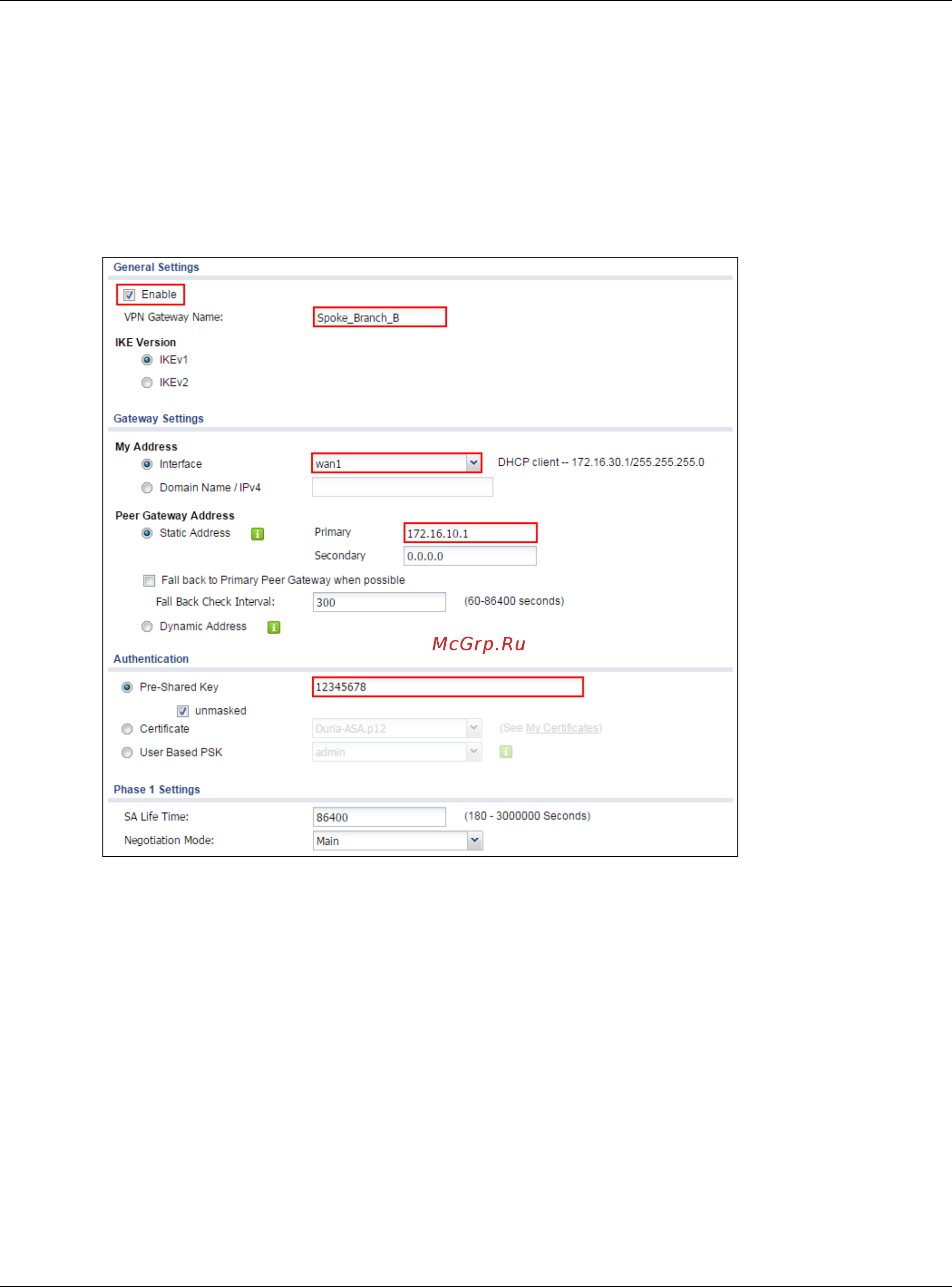

Figure 420 CONFIGURATION > VPN > IPSec VPN > VPN Gateway
