Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
83
3.7 How To Control Access To Google Drive
This is an example of using a ZyWALL/USG UTM Profile in a Security Policy to block access to a
specific file transfer service. You can use Application Patrol and Policy Control to make sure that a
certain file transfer service cannot be accessed through both HTTP and HTTPS protocols.

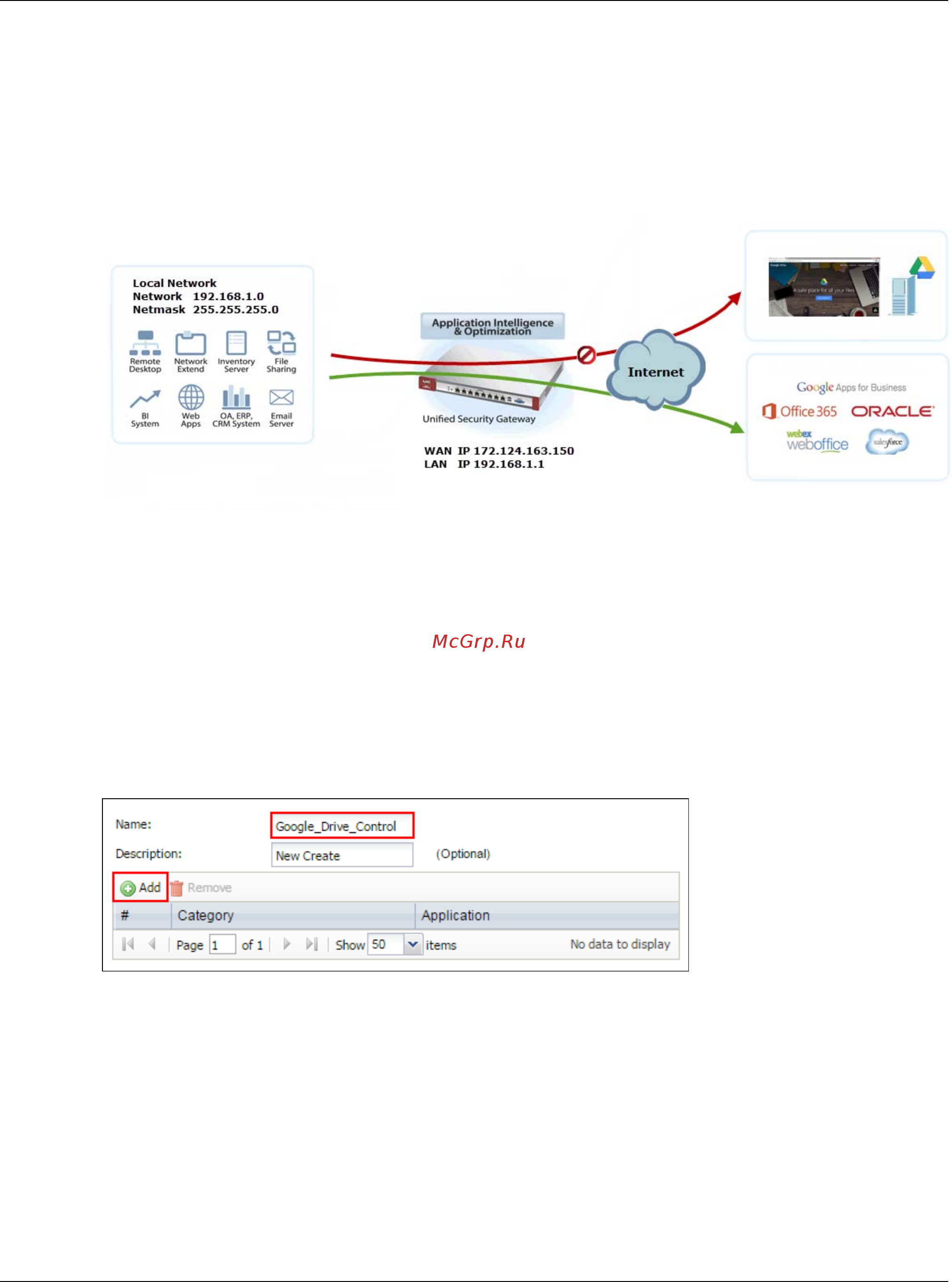

Figure 146 ZyWALL/USG with Control Access To Google Drive Settings Example
Note: All network IP addresses and subnet masks are used as examples in this article.
Please replace them with your actual network IP addresses and subnet masks. This
example was tested using USG310 (Firmware Version: ZLD 4.13).
3.7.1 Set Up the Application Patrol on the ZyWALL/USG
1 In the ZyWALL/USG, go to CONFIGURATION > Object > Application > Add Application Rule.
Configure a Name for you to identify the Application Profile. Then, click Add to create an
Application Object.
Figure 147 CONFIGURATION > Object > Application > Add Application Rule
