Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
85
3.7.2 Set Up the SSL Inspection on the ZyWALL/USG
In the ZyWALL/USG, go to CONFIGURATION > UTM Profile > SSL Inspection > Add rule,
configure a Name for you to identify the SSL Inspection profile.
Then, select the CA Certificate to be the certificate used in this profile. Select Block to Action for
Connection with SSL v2 and select Log type to be log alert. Leave other actions as default
settings.

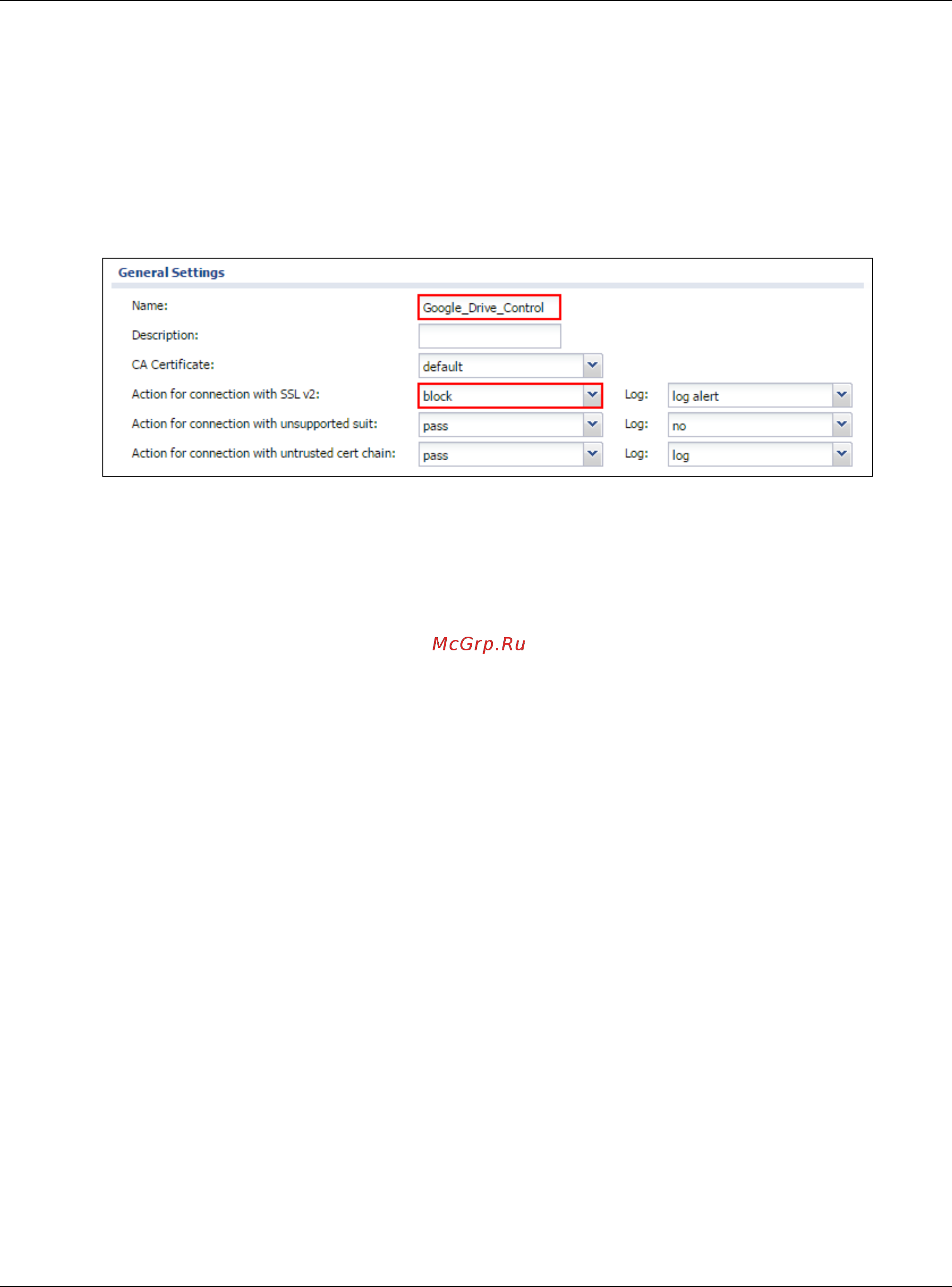

Figure 151 CONFIGURATION > UTM Profile > SSL Inspection > Add rule
