Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
214
4.9.6 Spoke_Branch_B
1 Go to CONFIGURATION > VPN > IPSec VPN > VPN Gateway, select Enable. Type the VPN
Gateway Name used to identify this VPN gateway.
Then, configure the Primary Gateway IP as the Hub_HQ’s wan1 IP address (in the example,
172.16.10.1) and Secondary Gateway IP as the Hub_HQ’s wan2 IP address (in the example,
172.100.110.1). Select Fall back to Primary Peer Gateway when possible and set desired Fall
Back Check Interval time.
Type a secure Pre-Shared Key (8-32 characters) which must match your Hub_HQ’s Pre-Shared
Key and click OK.

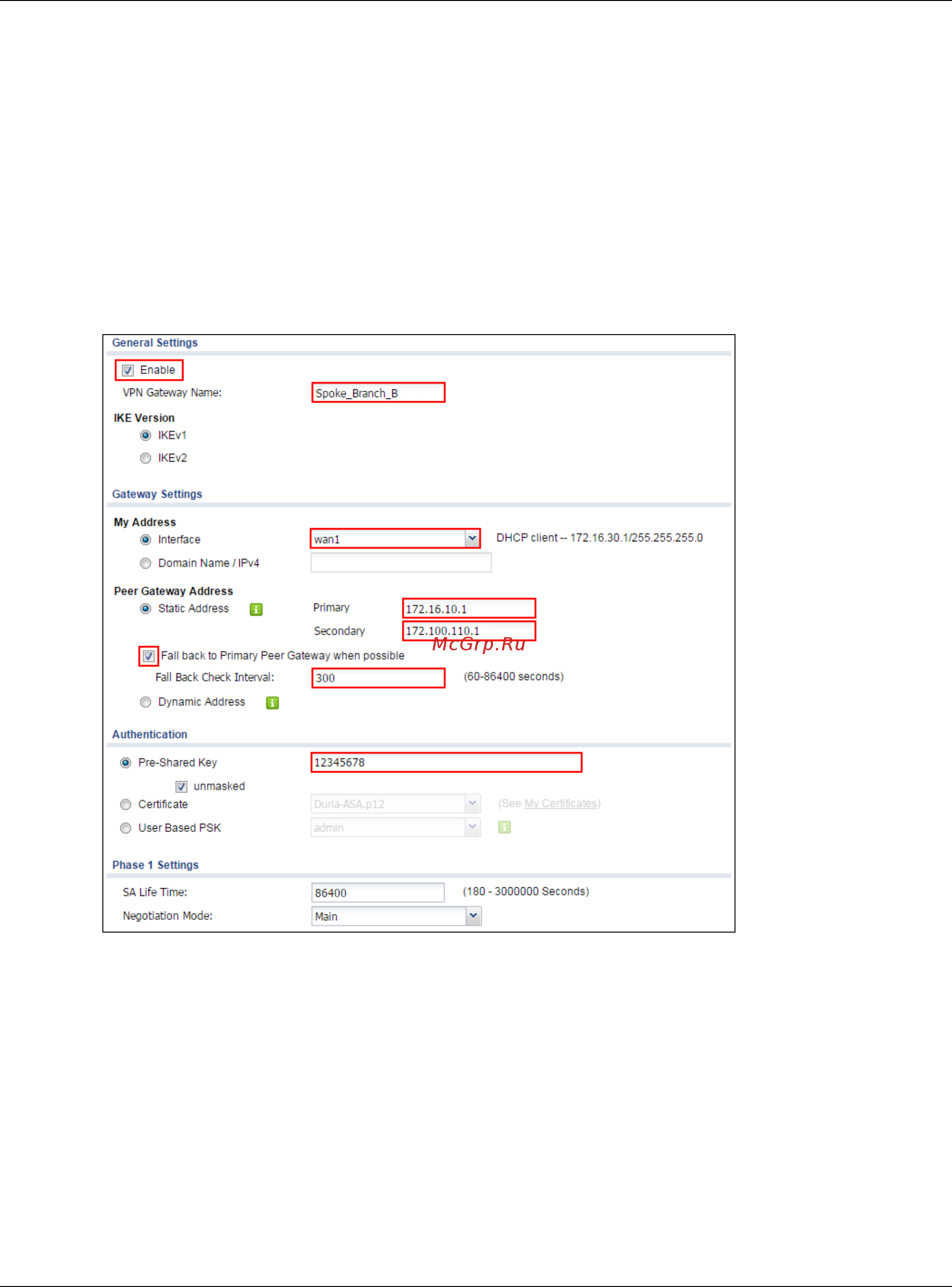

Figure 449 CONFIGURATION > VPN > IPSec VPN > VPN Gateway
