1.4 How to Allow Public Access to a Server Behind
ZyWALL/USG
This is an example of using ZyWALL/USG to configure a securely access to internal server behind
ZyWALL/USG with network address translation (NAT). The Internet users can reach this server
directly by its public IP address and a NAT mapping rule will forward the traffic from the Internet to
the Intranet. It provides security and decrease the number of IP addresses an organization needs.

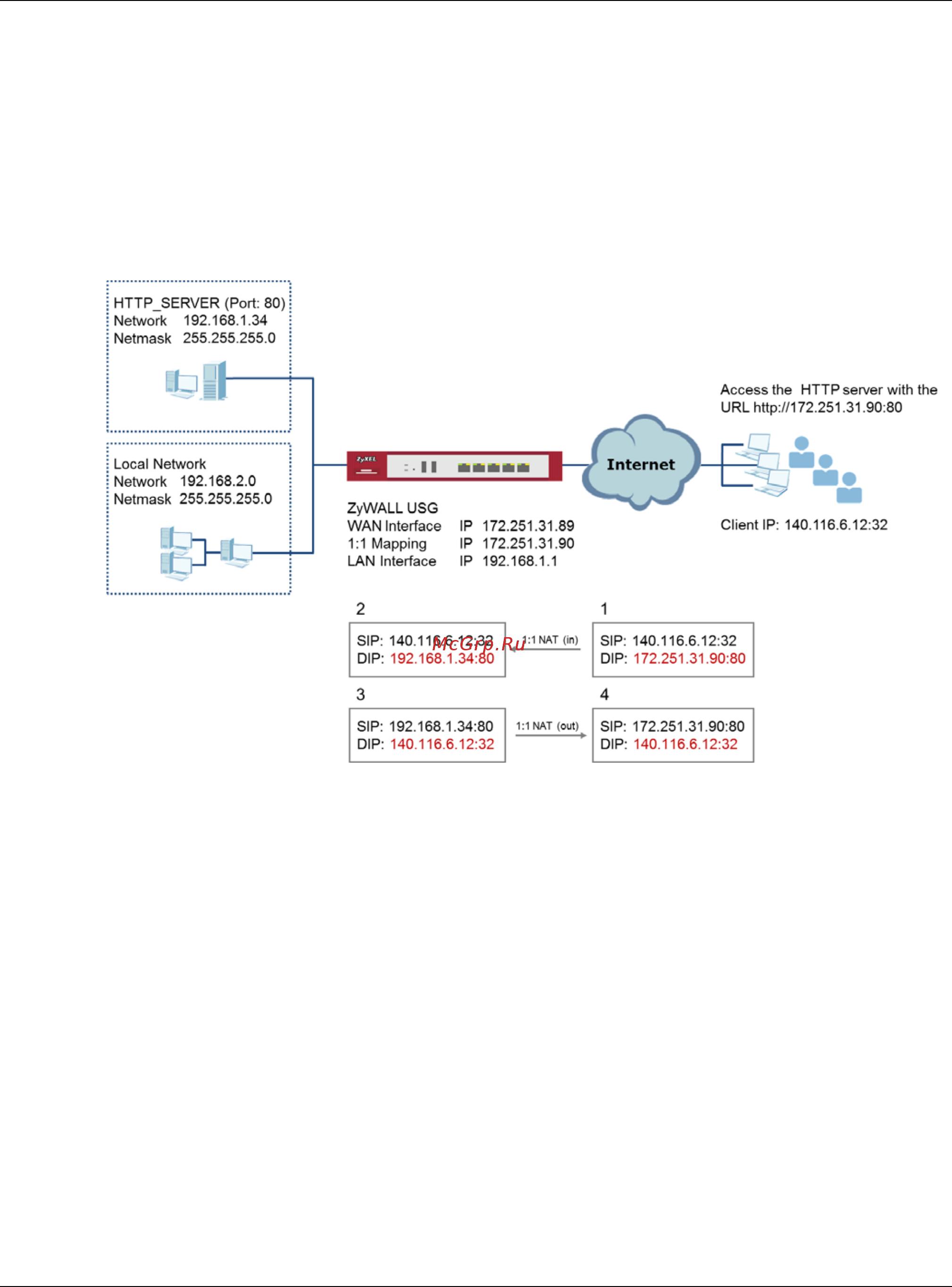

Figure 29 ZyWALL/USG enables Public Access to a Server with NAT
Note: All network IP addresses and subnet masks are used as examples in this article.
Please replace them with your actual network IP addresses and subnet masks.
This example was tested using USG310 (Firmware Version: ZLD 4.13).
