Chapter 4 Create Site-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

210

4.9.4 Hub_HQ Concentrator

In the ZyWALL/USG, go to CONFIGURATION > VPN > IPSec VPN > Concentrator, add a VPN

Concentrator rule. Select VPN tunnels to the same member group and click Save.

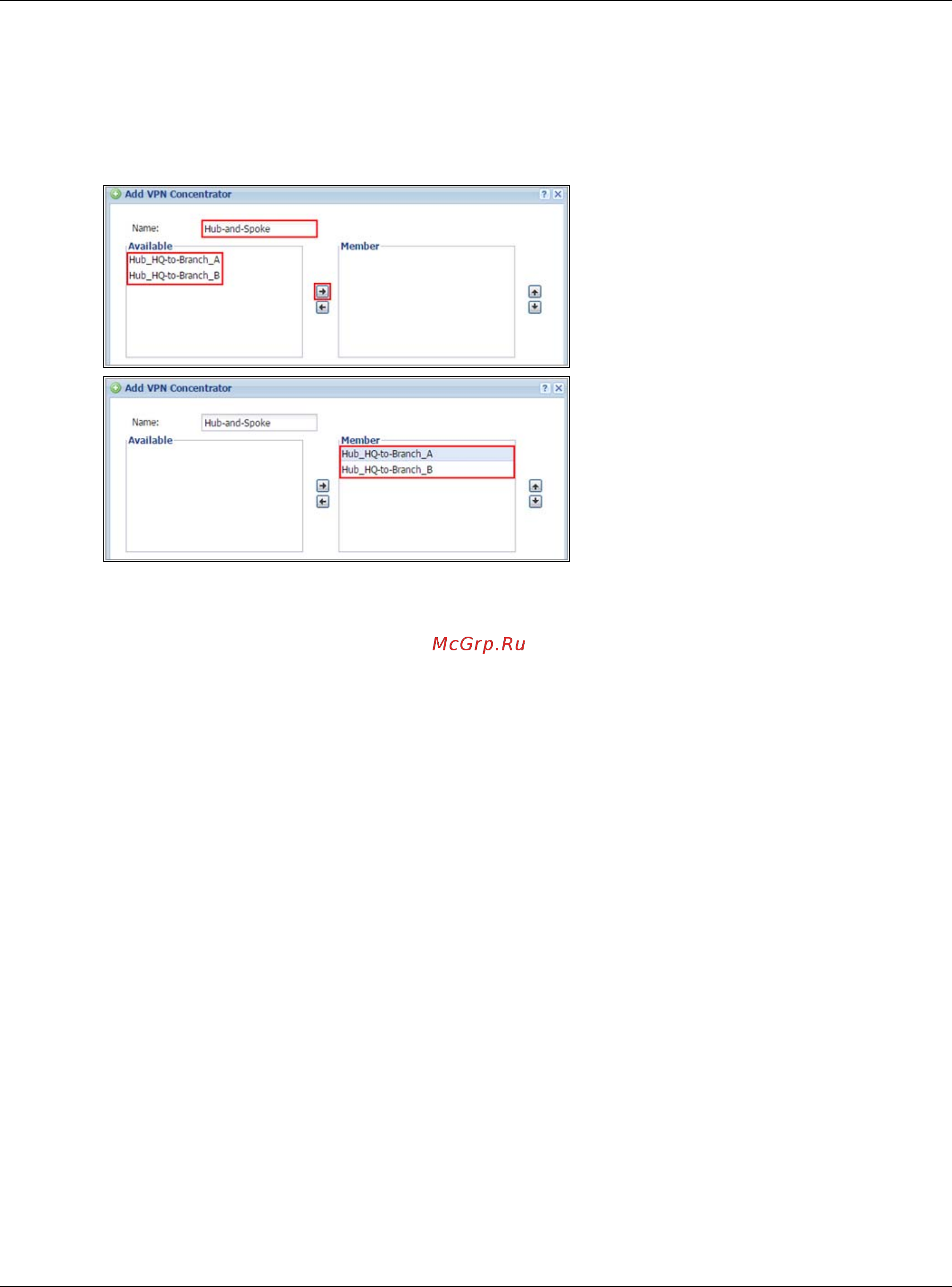

Figure 442 Add a VPN Concentrator Rule
