Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
196
4.8.11 Hub_HQ-to-Branch_B
1 Go to CONFIGURATION > VPN > IPSec VPN > VPN Gateway, select Enable. Type the VPN
Gateway Name used to identify this VPN gateway.
Then, configure the Secure Gateway IP as the Branch B’s Gateway IP address (in the example,
172.16.30.1). Type a secure Pre-Shared Key (8-32 characters) which must match your Branch
B’s Pre-Shared Key and click OK.

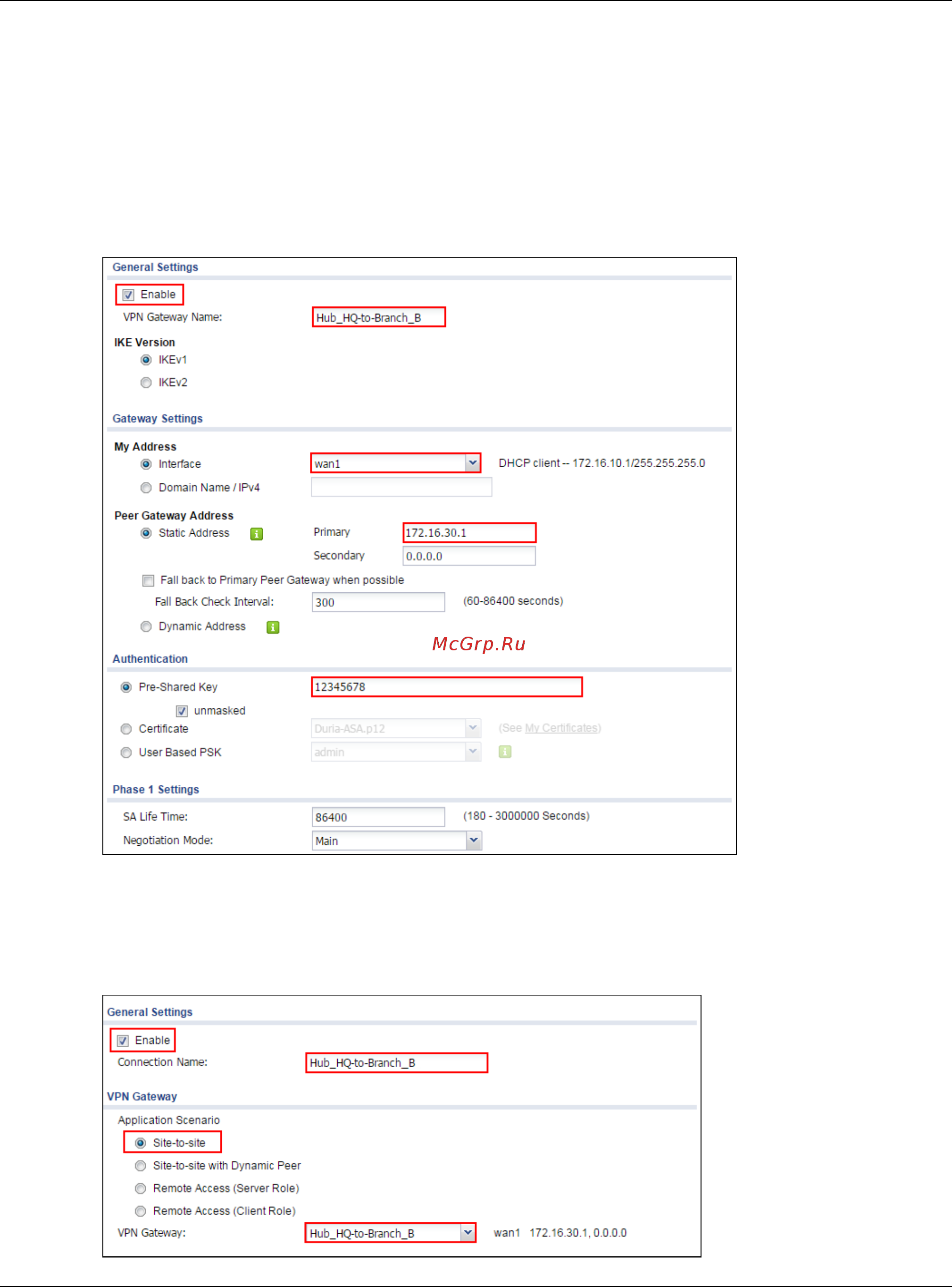

Figure 412 CONFIGURATION > VPN > IPSec VPN > VPN Gateway
2 Go to CONFIGURATION > VPN > IPSec VPN > VPN Connection and select Enable. Type the
Connection Name used to identify this VPN connection. Select scenario as Site-to-site and VPN
Gateway which is configured in Step 1.
Figure 413 CONFIGURATION > VPN > IPSec VPN > VPN Connection > General Settings
and VPN Gateway
