Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
52
3.1.2 Device Registration
Click Device Registration in the navigation panel to open the screen. Use this screen to register
your device with myZyXEL.com.
Enter the device’s (first) MAC Address and Serial Number, which can be found on the sticker on
the back of the device. Click Submit.
If you access myZyXEL.com from the Registration screen of your ZyXEL device’s Web
Configurator, the device MAC Address and Serial Number displays automatically.

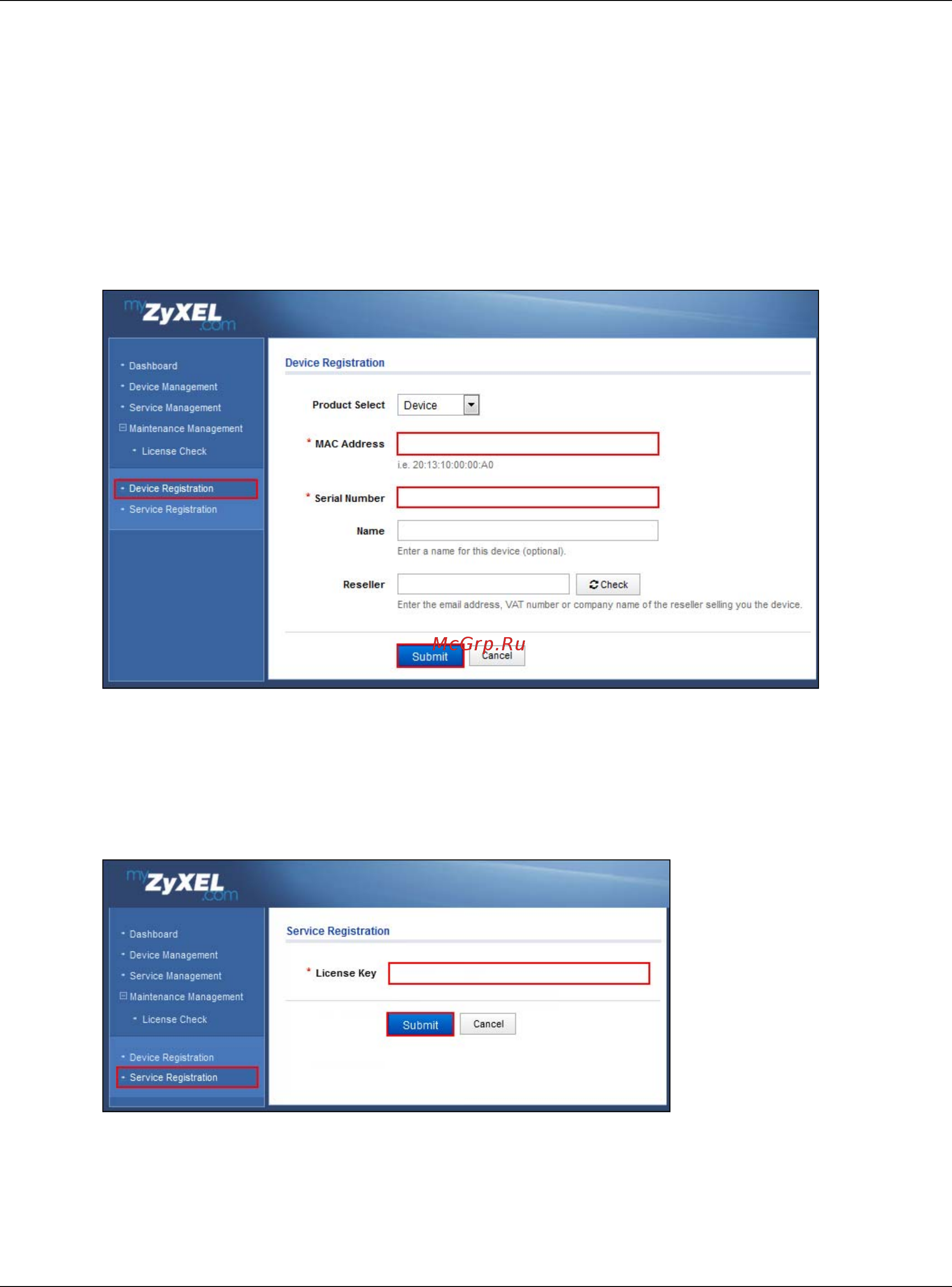

Figure 76 Configure Device Registration Settings
3.1.3 Service Registration (In the Case of Standard License)
1 Click Service Registration in the navigation panel to open the screen. Fill in the License Key as
shown on E-iCard License.
Figure 77 Fill in the License Key for Service Registration
