Chapter 2 Set Up WiFi
ZyWALL/USG Series Handbook
46
2.3.3 Set Up the Security Policy on the ZyWALL/USG
In the ZyWALL/USG, go to CONFIGURATION > Security Policy > Policy > Add
corresponding. Configure a Name for you to identify the Security Policy profile. Set From: LAN
and To: any (Excluding ZyWALL). Set Service to be the service rule for Wi-Fi guest
(wifi_guest_access in this example). Set User to be the Wi-Fi guest user (ad-users in this
example). Select Log type to be log alert in order to view the result later.

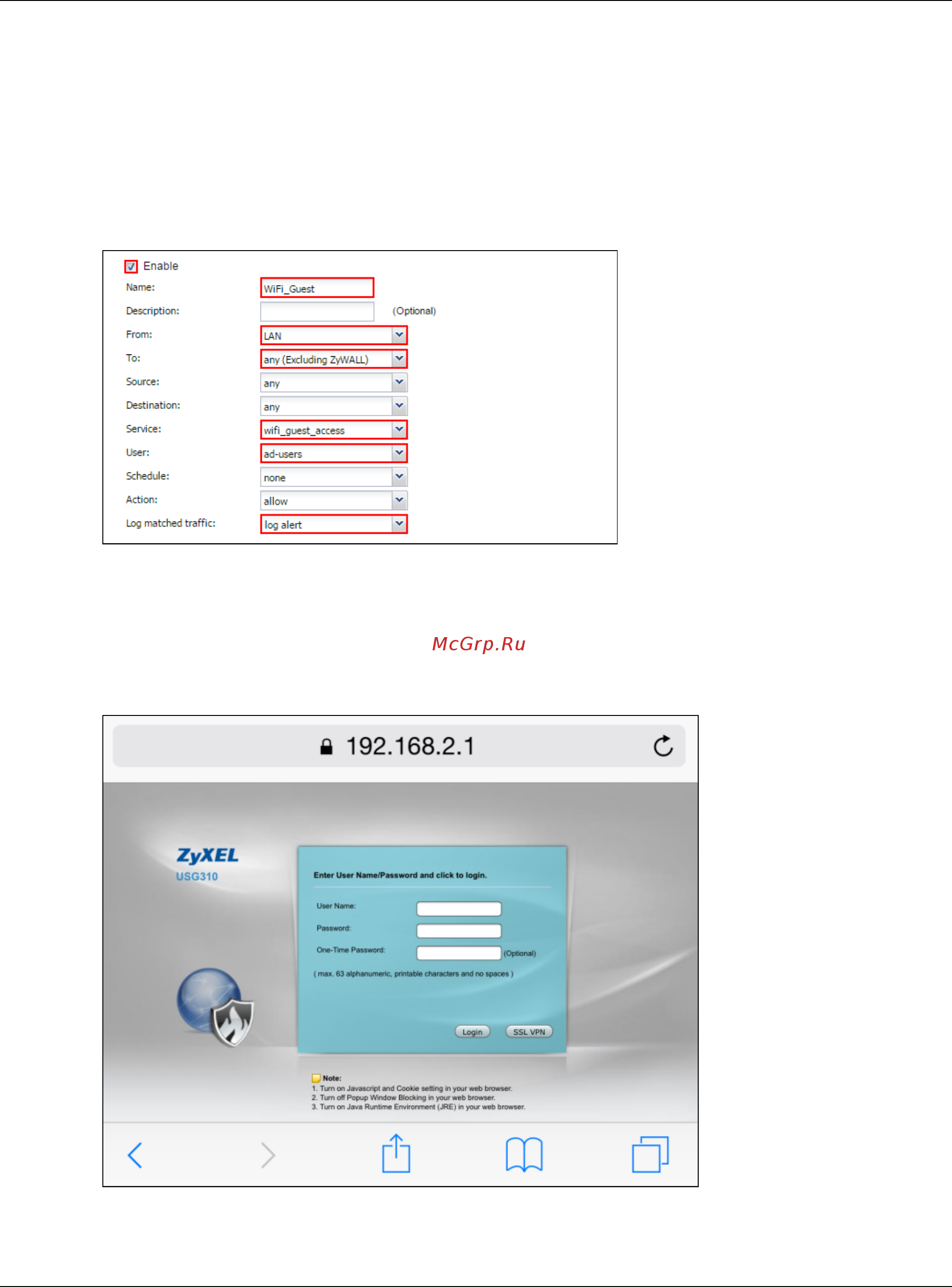

Figure 63 CONFIGURATION > Security Policy > Policy > Add corresponding
2.3.4 Test the Result
1 Using a mobile device to connect to the AP which is connected to the ZyWALL/USG. When you try to
access the Internet, it will redirect to the user login screen.
Figure 64 User Login Screen
