Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
148
4.5.2 Set Up the IPSec VPN Tunnel on the WatchGuard
1 Go to Dashboard > Network Interfaces to check your External IP Address (the Internet-
facing interface) and Trusted IP Address (the Local IP address).

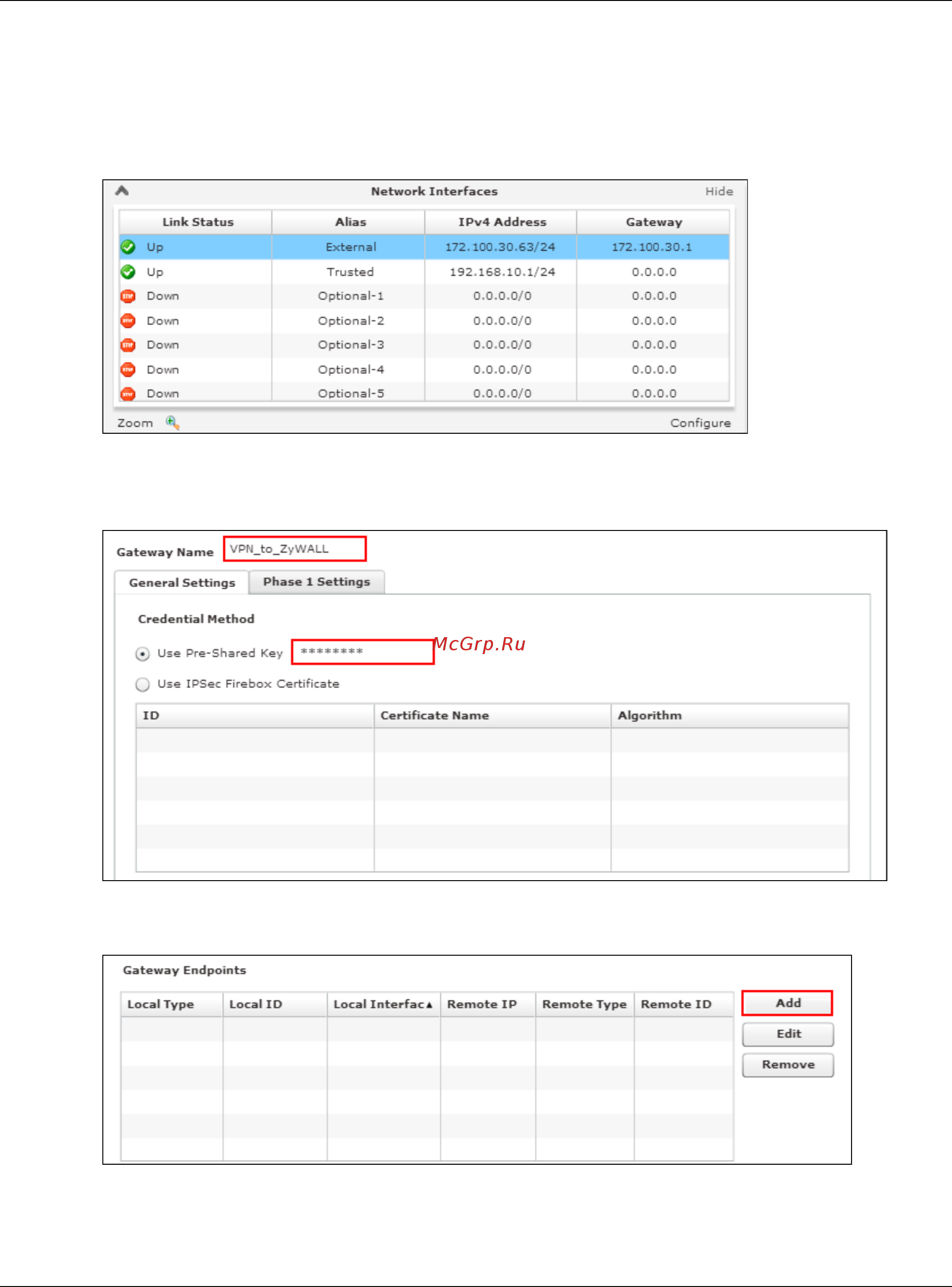

Figure 310 Dashboard > Network Interfaces
2 In the WatchGuard VPN > Branch Office VPN > Gateway > General Settings create a Site-to-
site VPN Gateway Name and set a secure Pre-Shared Key.
Figure 311 VPN > Branch Office VPN > Gateway > General Settings > Credential Method
3 To add a Gateway Endpoint, click Add.
Figure 312 VPN > Branch Office VPN > Gateway > General Settings > Gateway Endpoints
