Chapter 1 Set Up Your Network
ZyWALL/USG Series Handbook
31
1.3.2 Test the Result
1 Check the Interface Statistics, you can see br1 Status is up, Tx B/s displays the transmission
speed and Rx B/s displays the reception speed. IntServer1 and PublicWAN are configured in the
same vlan1 but using different IP address.

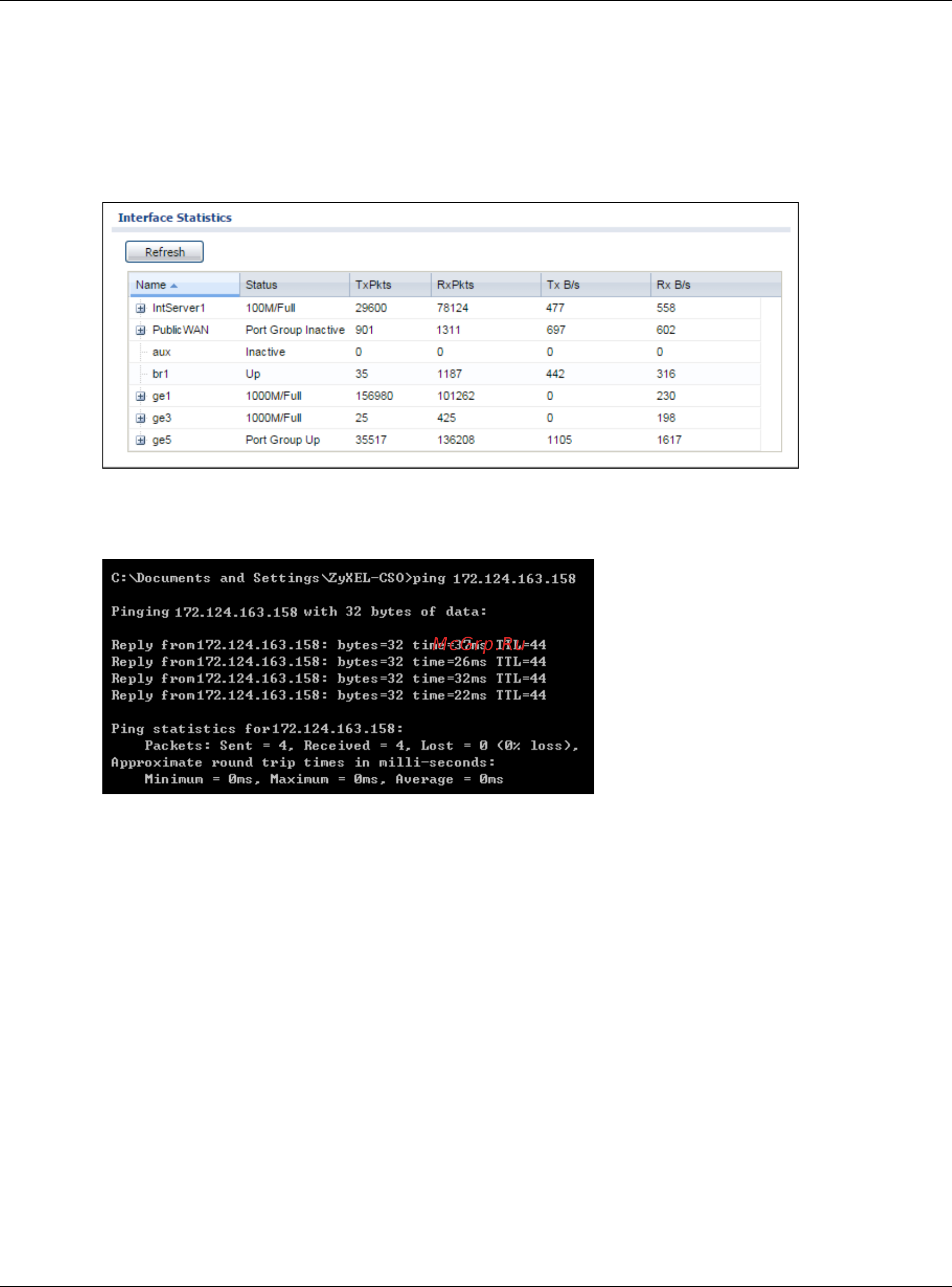

Figure 27 MONITOR > Interface Status > Interface Statistics
2 Server can access Internet successfully by using its IP address (172.124.163.158 in this example)
and Internet users can also reach this server by this public address as well.
Figure 28 Windows 7 > cmd > ping 172.124.163.158
1.3.3 What Could Go Wrong?
If you cannot configure a particular bridge IP address, please check is this IP address already
created on other Ethernet interface.
