Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
105
3 In the ZyWALL/USG, go to CONFIGURATION > UTM Profile > Anti-Virus > Profile > Profile
Management > Add rule and configure a Name for you to identify the Anti-Virus Profile.
Select Log type to be log alert in order to view the result later.
Make sure you select Check Black List and click OK.

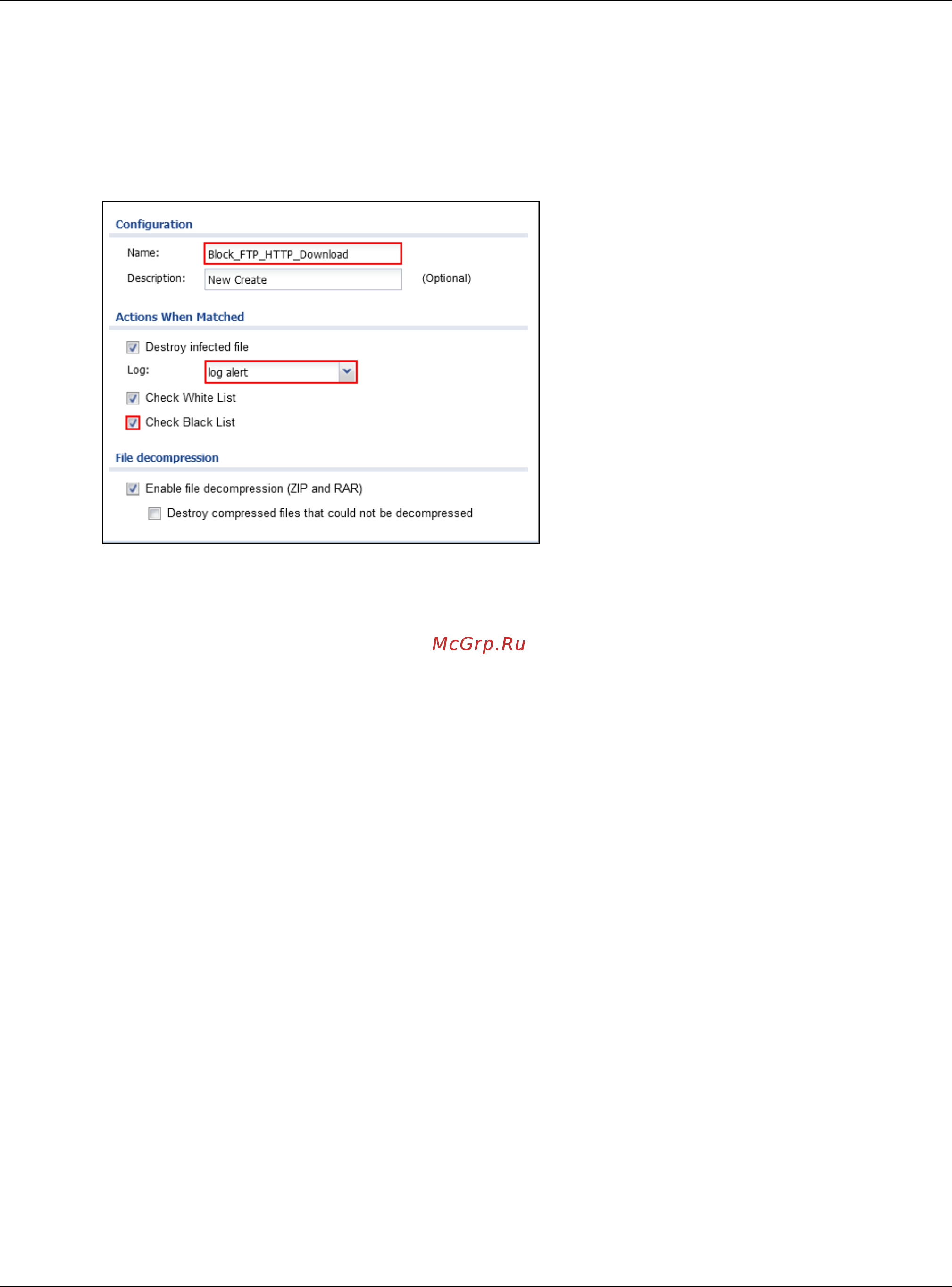

Figure 200 CONFIGURATION > UTM Profile > Anti-Virus > Black/White List > Black List >
General Settings
3.11.2 Set Up the Security Policy on the ZyWALL/USG
In the ZyWALL/USG, go to CONFIGURATION > Security Policy > Policy Control, configure a
Name for you to identify the Security Policy profile. For From and To policies, select the direction
of travel of packets to which the policy applies.
