Chapter 5 Create Client-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
282
5.8 How To Configure SSL VPN for Remote Access Mobile
Devices
This is an example of using the ZyWALL/USG SSL VPN for remote access mobile devices to securely
connect to the File Sharing Server behind the ZyWALL/USG.

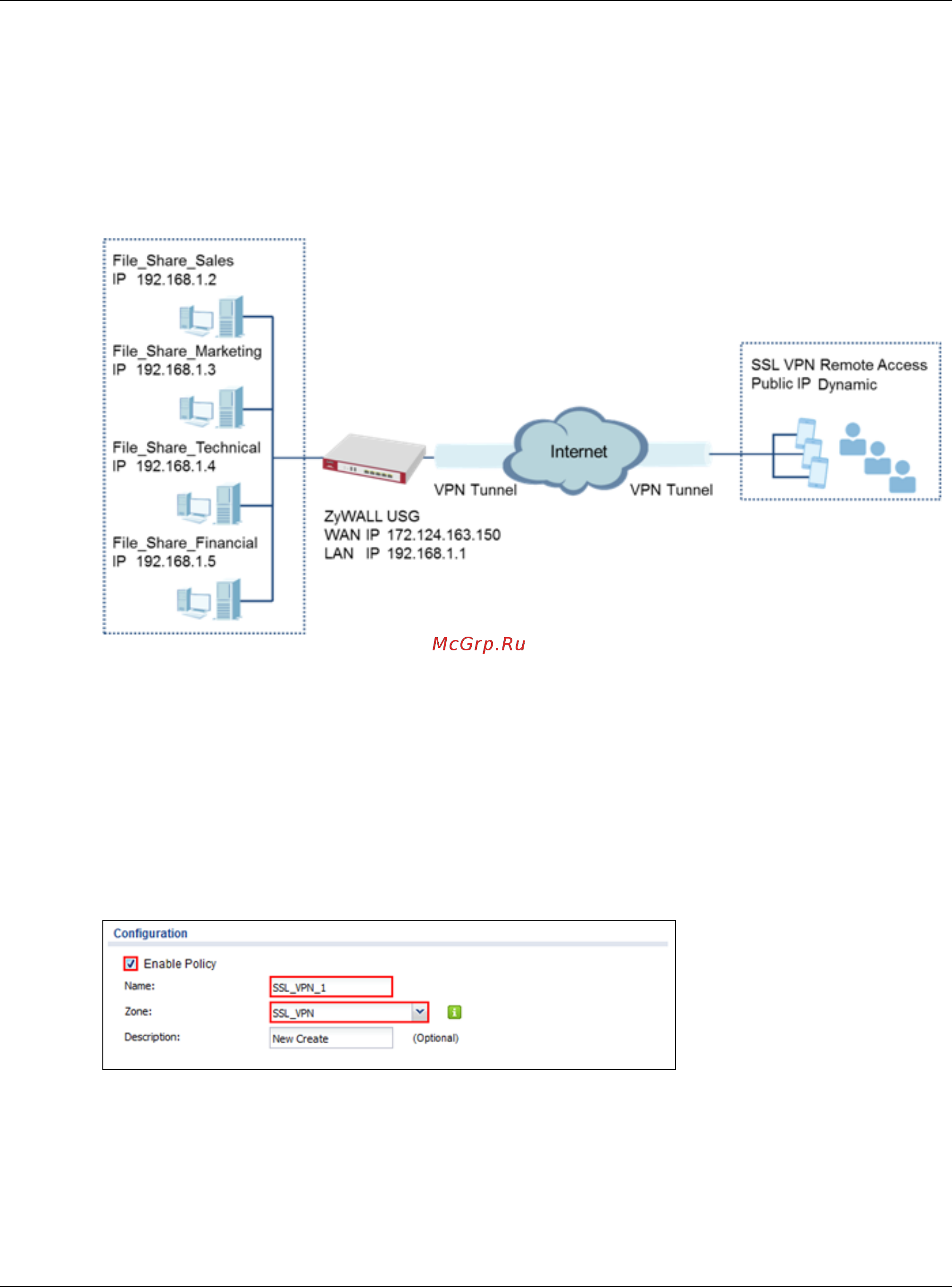

Figure 614 ZyWALL/USG SSL VPN for Secure External Access to Network Resources
Note: All network IP addresses and subnet masks are used as examples in this article.
Please replace them with your actual network IP addresses and subnet masks. This
example was tested using USG1900 (Firmware Version: ZLD 4.13).
5.8.1 Set Up the SSL VPN Tunnel on the ZyWALL/USG
1 In the ZyWALL/USG, go to CONFIGURATION > VPN > SSL VPN > Access Privilege to add an
Access Policy. Configure a Name for you to identify the SSL VPN configuration.
Figure 615 CONFIGURATION > VPN > SSL VPN > Access Privilege > Access Policy >
Configuration
