Chapter 7 Manage Your Network Traffic
ZyWALL/USG Series Handbook
314
7.4.1 Set Up the NAT Rule on the ZyWALL/USG
In the ZyWALL/USG, go to CONFIGURATION > Network > NAT. Configure the Virtual Server to
forward the traffic from WAN to Internal Server (192.168.1.33). Click OK.

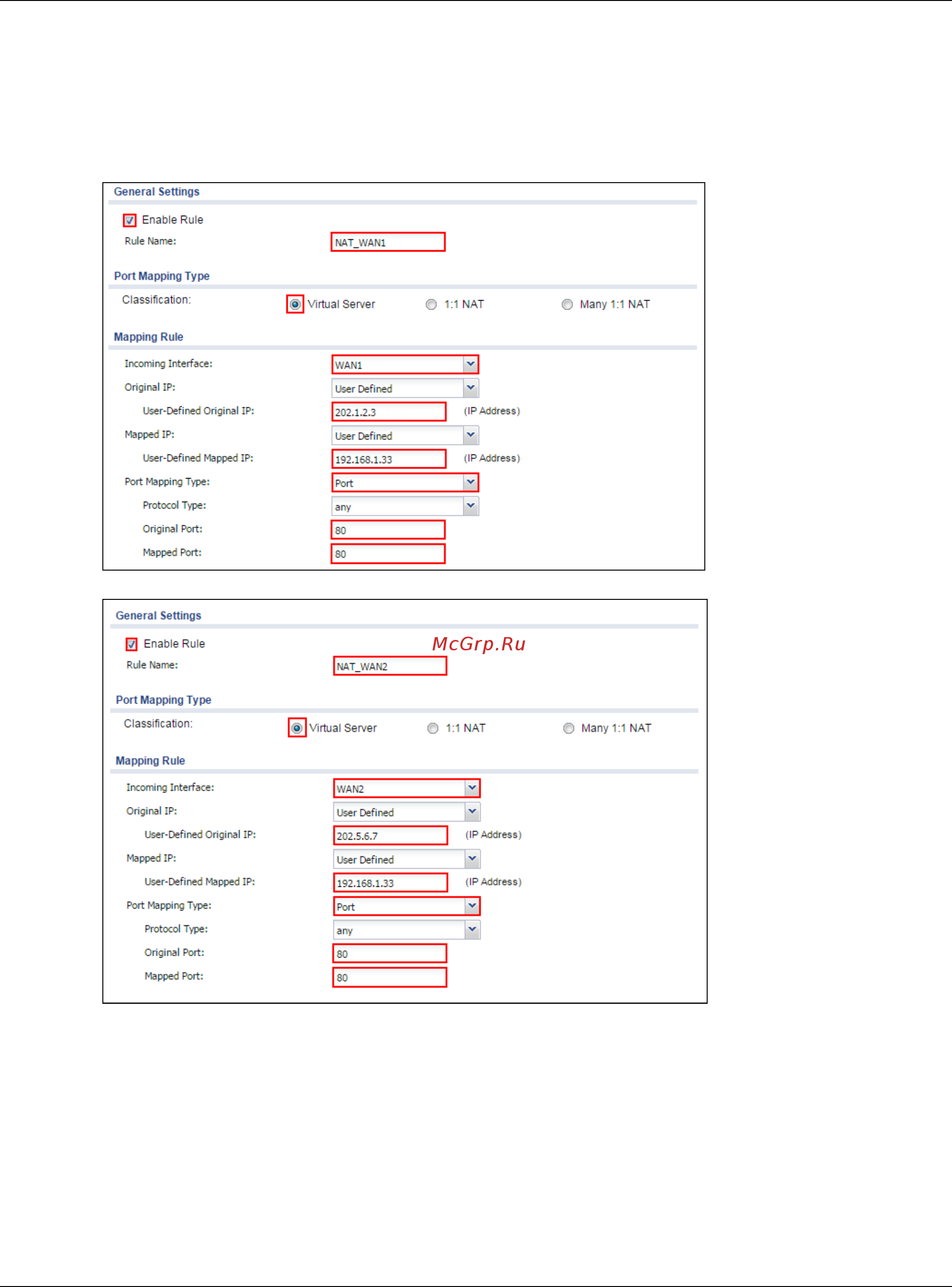

Figure 669 CONFIGURATION > Network > NAT
Figure 670 Configure Virtual Server to Forward WAN2 Traffic to An Internal Server
7.4.2 Test the Result
1 Open the browser and query http://zyxel.for-our.info/.
2 Create a Security Policy in order to view the testing result. Set Destination to be the Internal
Server IP address (192.168.1.33 in this example) and set Log type to be the Log Alert.
