Chapter 1 Set Up Your Network
ZyWALL/USG Series Handbook
23
1.1.4 Set Up the Wireless Settings Wizard on the ZyWALL/USG
1 In the Wireless Settings page, select Yes if you want the ZyWALL/USG to enable AP Controller
feature in your network; select No if you want to skip this setting. Click Next.

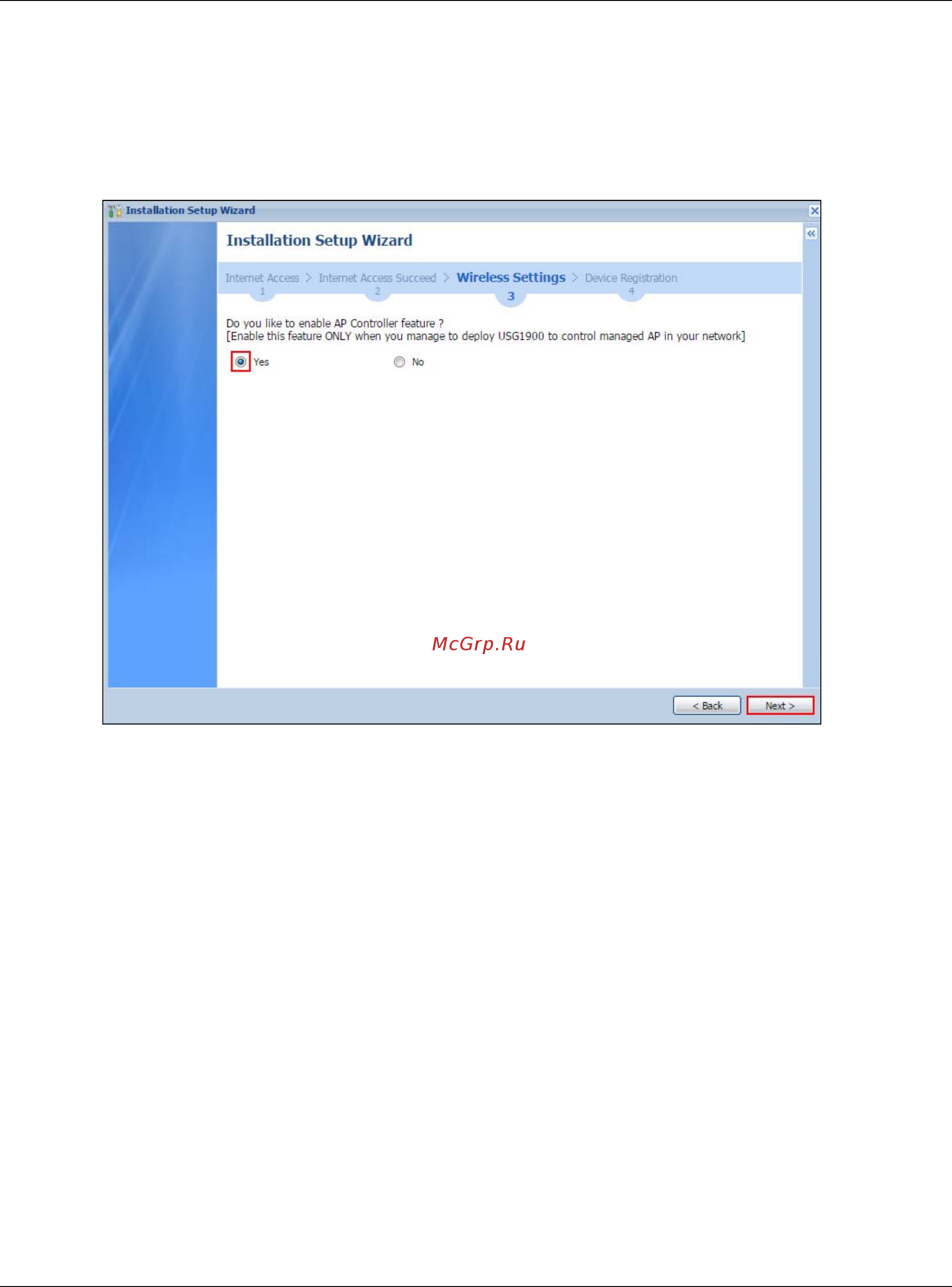

Figure 14 Installation Setup Wizard > Welcome > Internet Access > Internet Access
Succeed > Wireless Settings
