Chapter 5 Create Client-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
257
5.5 How to Configure the L2TP VPN with Apple MAC OS X
10.11 Operating System
This is an example of using the L2TP VPN and VPN client software included in Apple MAC OS X
10.11 El Capitan operating systems. When the VPN tunnel is configured, users can securely access
the network behind the ZyWALL/USG and allow traffic from L2TP clients to go to the Internet from
an Apple computer.

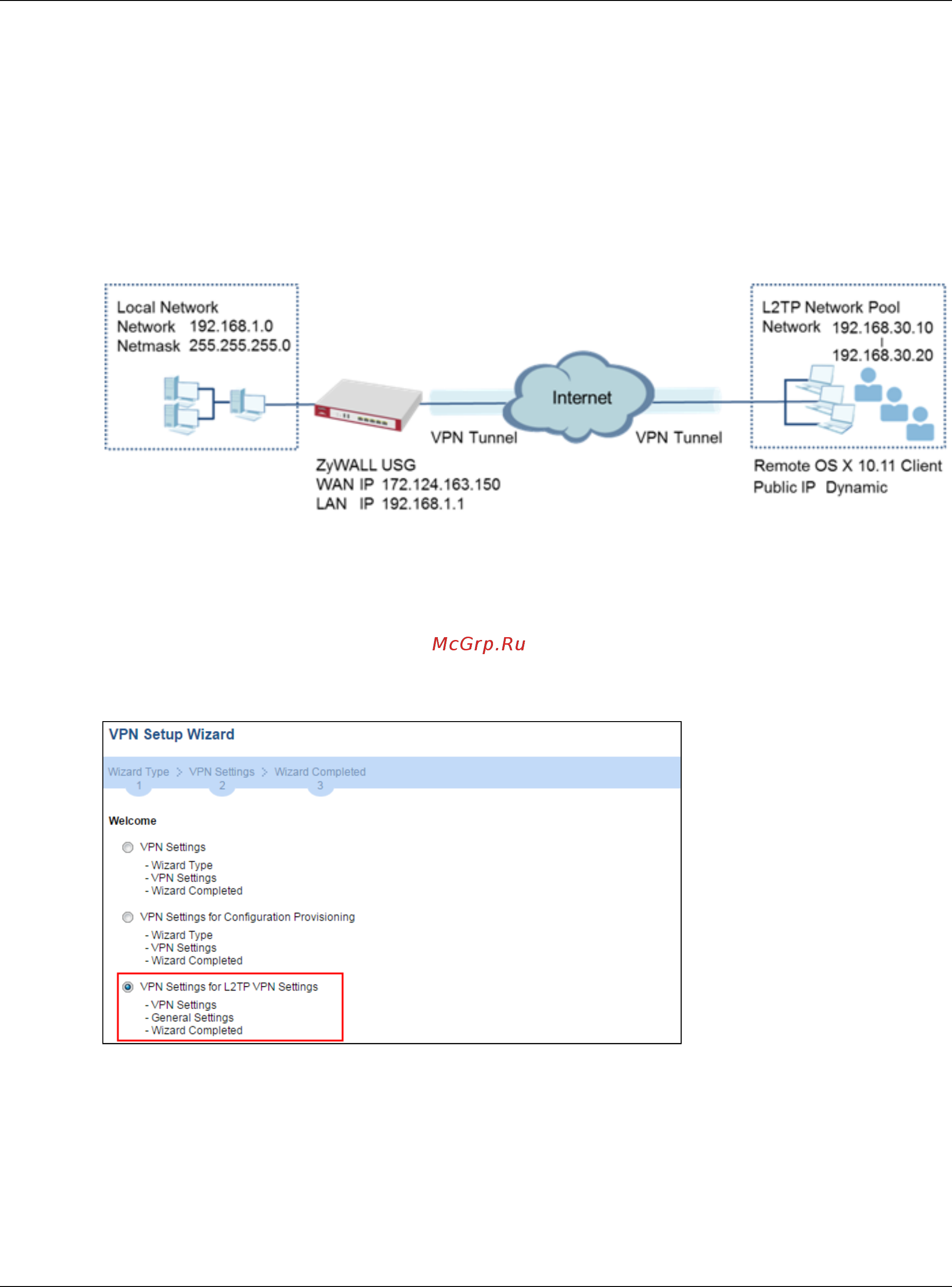

Figure 560 ZyWALL/USG L2TP VPN with Apple MAC OS X 10.11 El Capitan
5.5.1 Set Up the L2TP VPN Tunnel on the ZyWALL/USG
1 In the ZyWALL/USG, go to CONFIGURATION > Quick Setup > VPN Setup Wizard, use the VPN
Settings for L2TP VPN Settings wizard to create a L2TP VPN rule that can be used with the MAC
OS X clients. Click Next.
Figure 561 Quick Setup > VPN Setup Wizard > Welcome
