Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
130

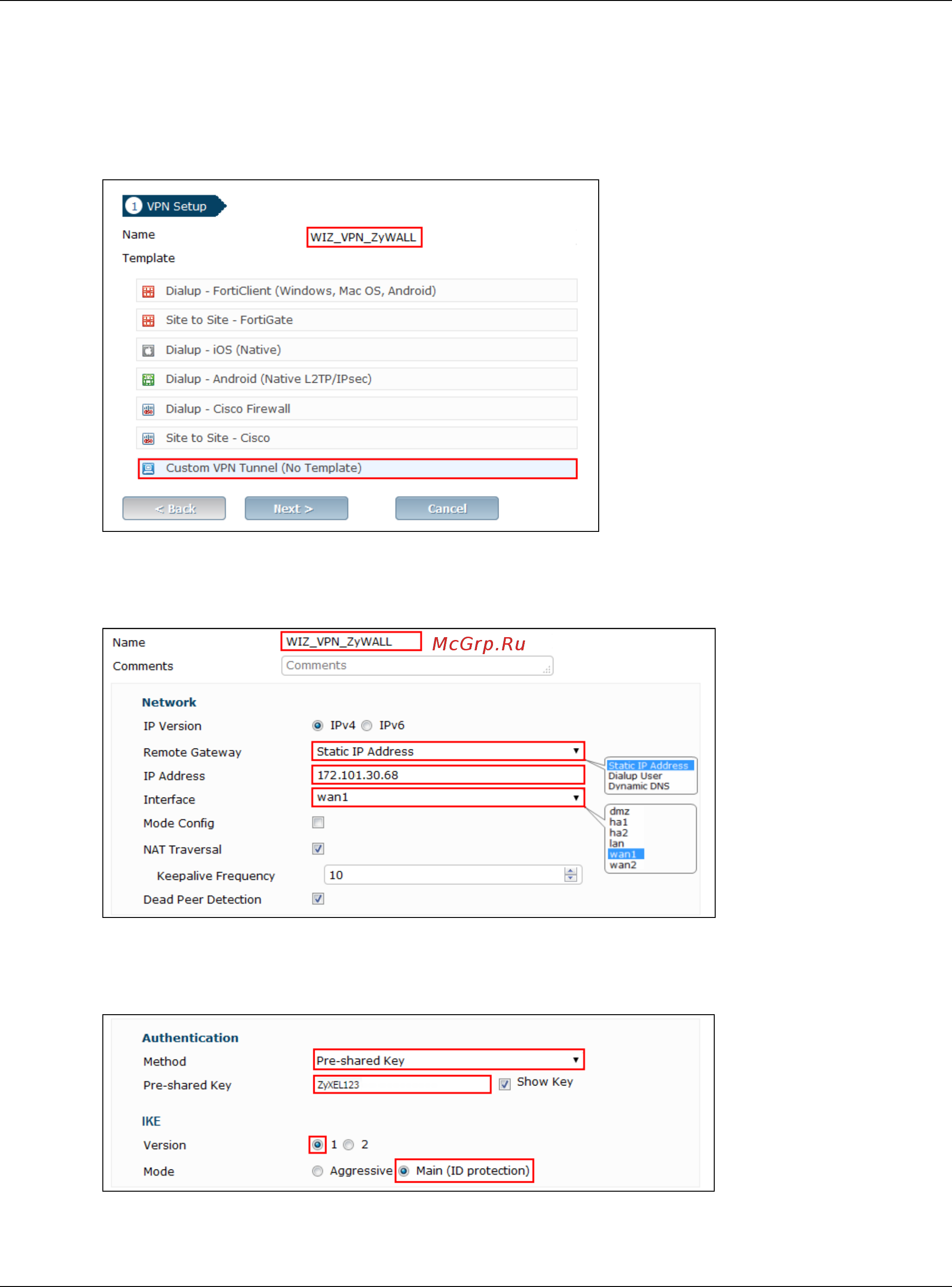

4.3.2 Set Up the IPSec VPN Tunnel on the FortiGate
1 In the FortiGate VPN > IPsec > Wizard > Custom VPN Tunnel (No Template), use the VPN
Setup to create a Site-to-site VPN rule Name.
Figure 266 VPN > IPsec > Wizard > Custom VPN Tunnel (No Template)
2 Type the Name used to identify this VPN connection, configure Remote Gateway IP as the peer
ZyWALL/USG’s WAN IP address. Select the Interface which is connected to the Internet.
Figure 267 VPN > IPsec > Wizard > Custom VPN Tunnel (No Template) > Network
3 Go to Authentication section, enter Pre-shared Key and choose negotiation Mode the same as
the peer ZyWALL/USG’s.
Figure 268 VPN > IPsec > Wizard > Custom VPN Tunnel (No Template) > Authentication
