Chapter 1 Set Up Your Network

ZyWALL/USG Series Handbook

1.1.3 Set Up the Internet Access (PPTP) Wizard on the ZyWALL/USG

1 In the ZyWALL/USG Installation Setup Wizard Welcome page, click Next to start configuring for

Internet. Click the double arrow in the upper right corner to display (<<) or hide (>>) the help.

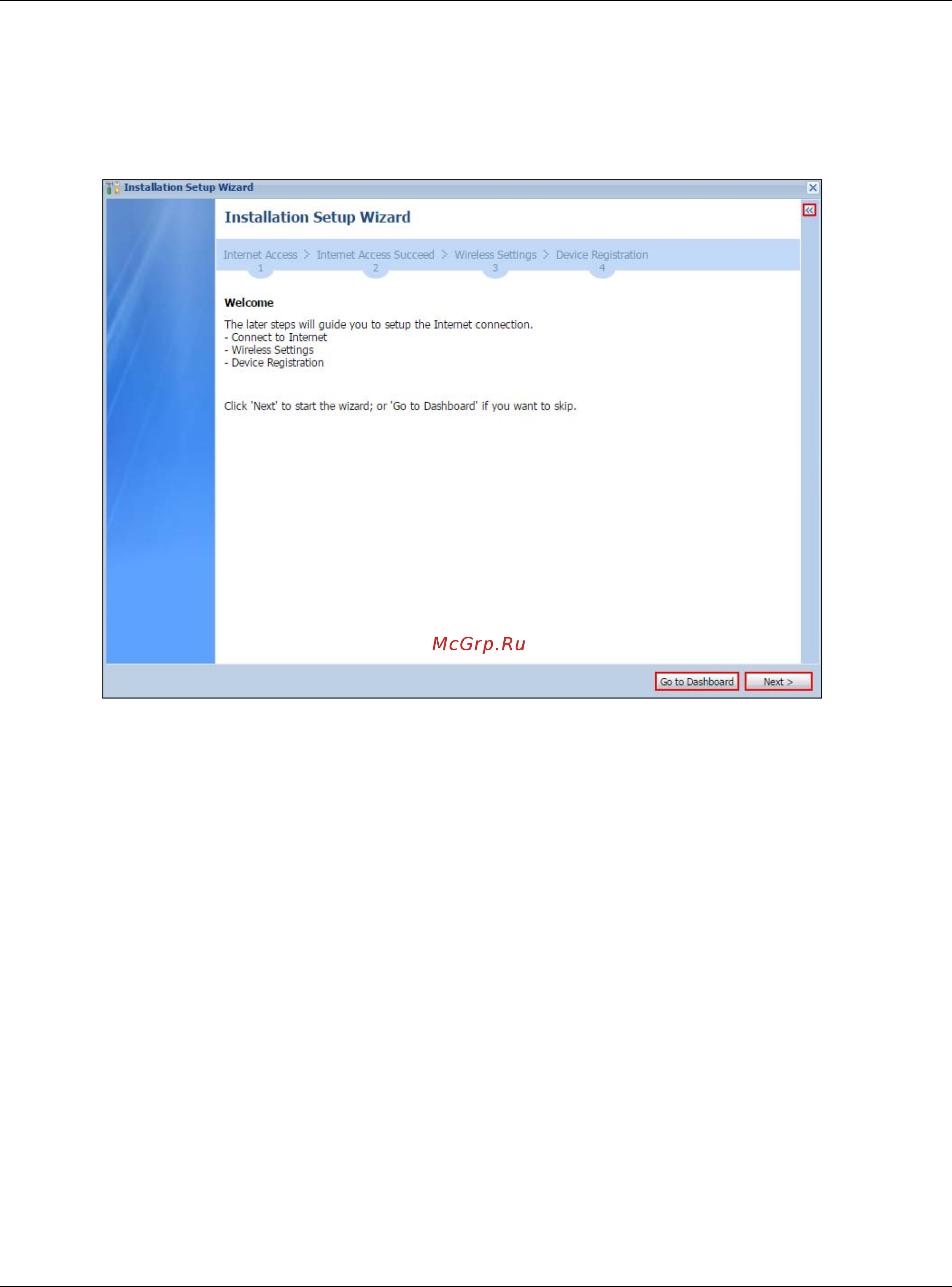

Figure 10 Installation Setup Wizard > Welcome
