Chapter 8 Maintain Your Device
ZyWALL/USG Series Handbook
327

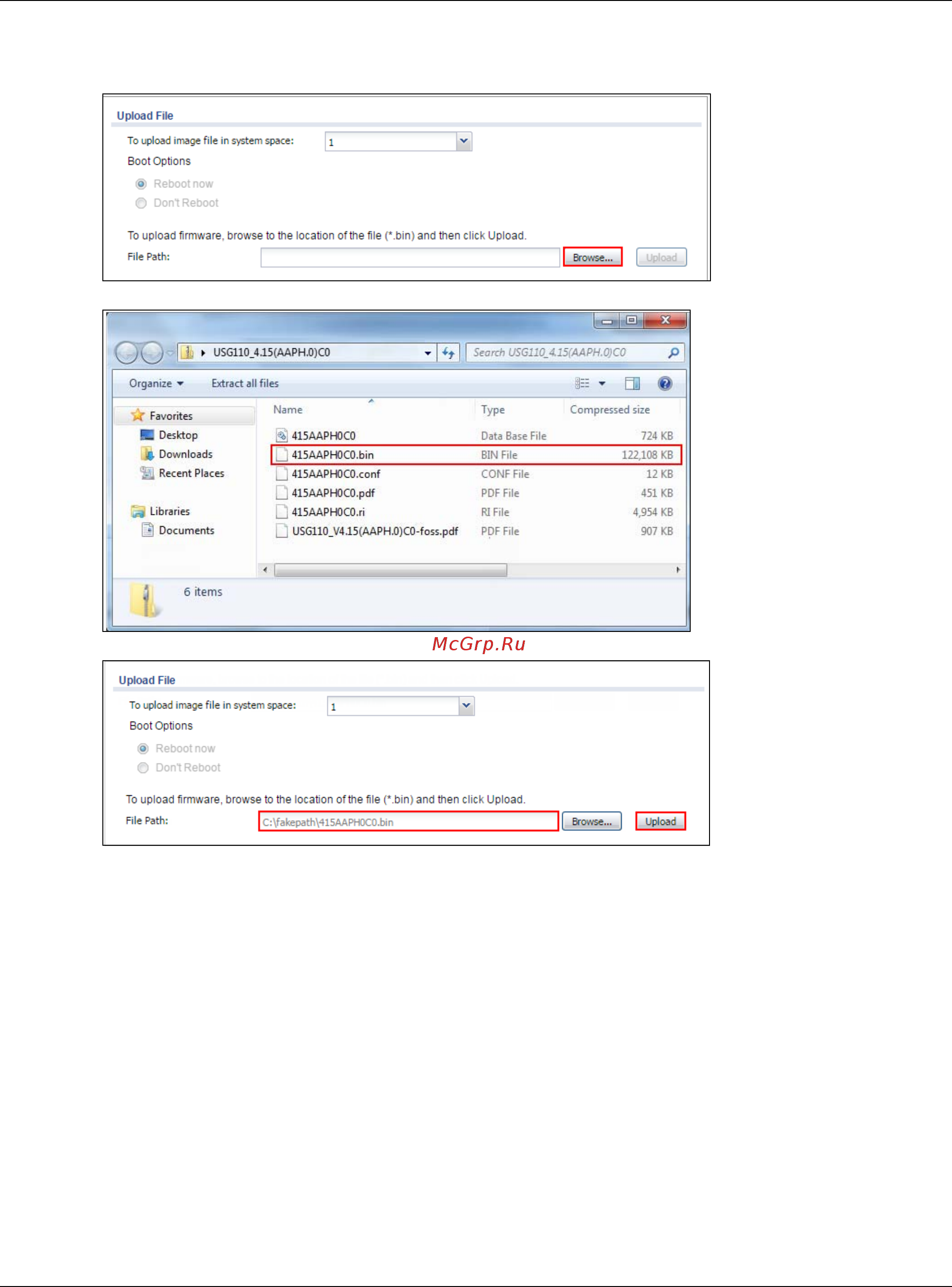

2 To upload firmware, click Browse to the location of the file (*.bin) and then click Upload.
Figure 699 Browse to Firmware Location
Figure 700 Select bin File
Figure 701 Upload bin File to ZyWALL/USG
Note: The default Running system space is (1), the Standby system space is (2). If
you select the Standby firmware and click Reboot now or you upload file to
Standby system space (2) and select Boot Options to be Reboot now. After
reboot process complete, the Running system space will be (2). Standby system
space will be (1).
8.2.3 What Could Go Wrong?
If you cannot download the firmware, please check if you enable the Destroy compressed files
that could not be decompressed function in Anti-Virus. ZyWALL/USG firmware package is ZIP
file, the ZyWALL/USG classifies the firmware package as not being able to decompress will delete it.
Please disable this option while downloading the firmware package.
