Chapter 5 Create Client-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
284
4 Then, move the just created address object to Selected User/Group Objects. Similarly, in SSL
Application List (Optional) move the servers you want available to SSL users to Selected
Application Objects.

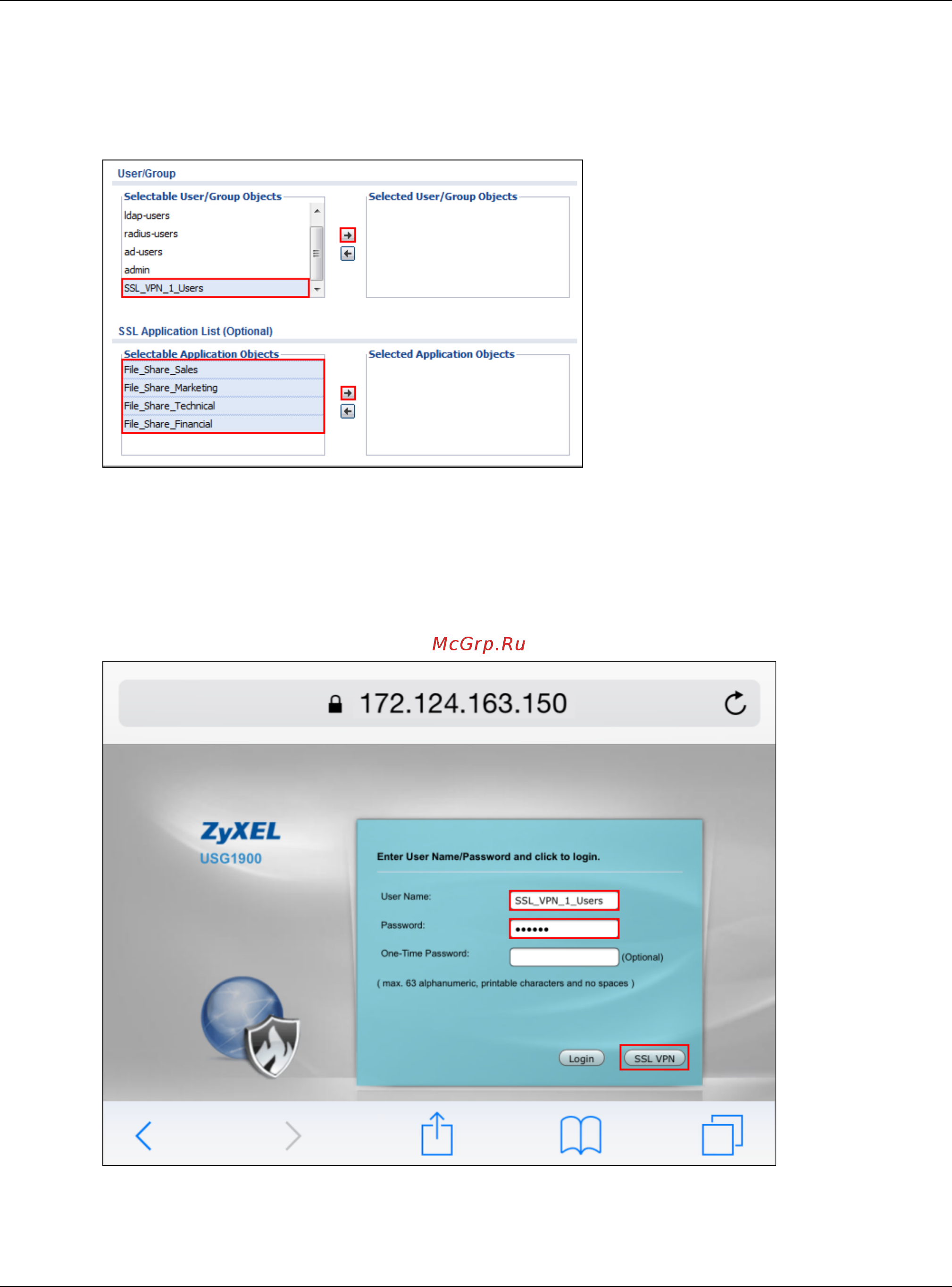

Figure 618 CONFIGURATION > VPN > SSL VPN > Access Privilege > Access Policy > User/
Group & SSL Application
5.8.2 Test the SSL VPN Tunnel
1 Type the ZyWALL/USG’s WAN IP into the browser, then the login screen appears. Enter User Name
and Password to be the same as your ZyWALL/USG SSL VPN Selected User/Group name and
password (SSL_VPN_1_Users/zyx168 in this example). Click SSL VPN.
Figure 619 Login Screen
