Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
86
3.7.3 Set Up the Security Policy on the ZyWALL/USG
In the ZyWALL/USG, go to CONFIGURATION > Security Policy > Policy Control, configure a
Name for you to identify the Security Policy profile. For From and To policies, select the direction
of travel of packets to which the policy applies.
Scroll down to UTM Profile, select Content Filter and select a profile from the list box
(Facebook_Block in this example). Then, select SSL Inspection and select a profile from the list
box (Facebook_Block in this example).

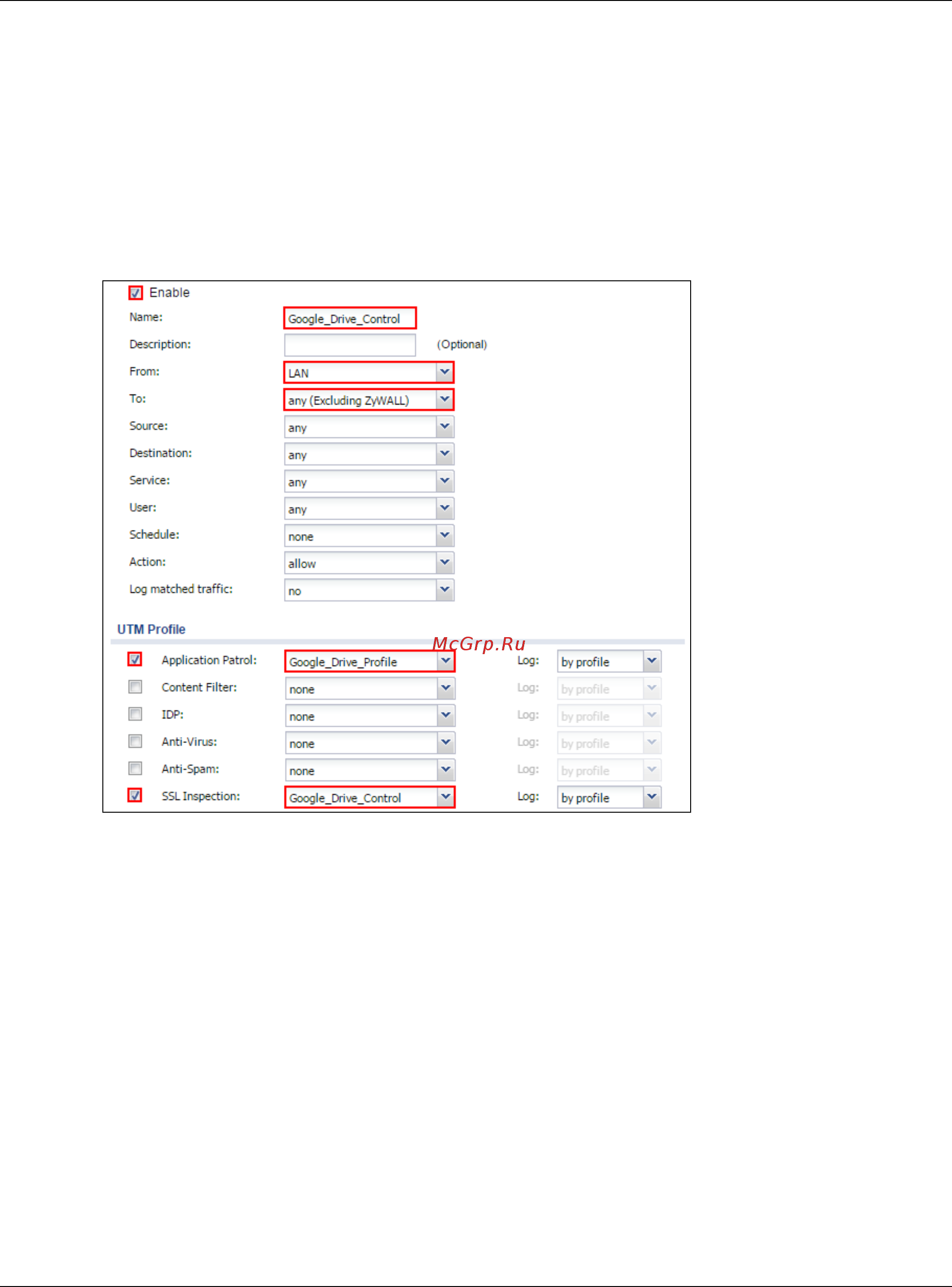

Figure 152 CONFIGURATION > Security Policy > Policy Control
3.7.4 Export Certificate from ZyWALL/USG and Import it to Windows 7
Operation System
1 When SSL inspection is enabled and an access website does not trust the ZyWALL/USG certificate,
the browser will display a warning page of security certificate problems.
