Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
70
3 Click the Protocol Anomaly tab. A Name is automatically generated that you can edit. Enable or
disable individual rules by selecting a row and clicking Activate or Inactivate. Edit the default log
options and actions by selecting a row and making a selection in the Log or Action drop-down
menus. Click OK.

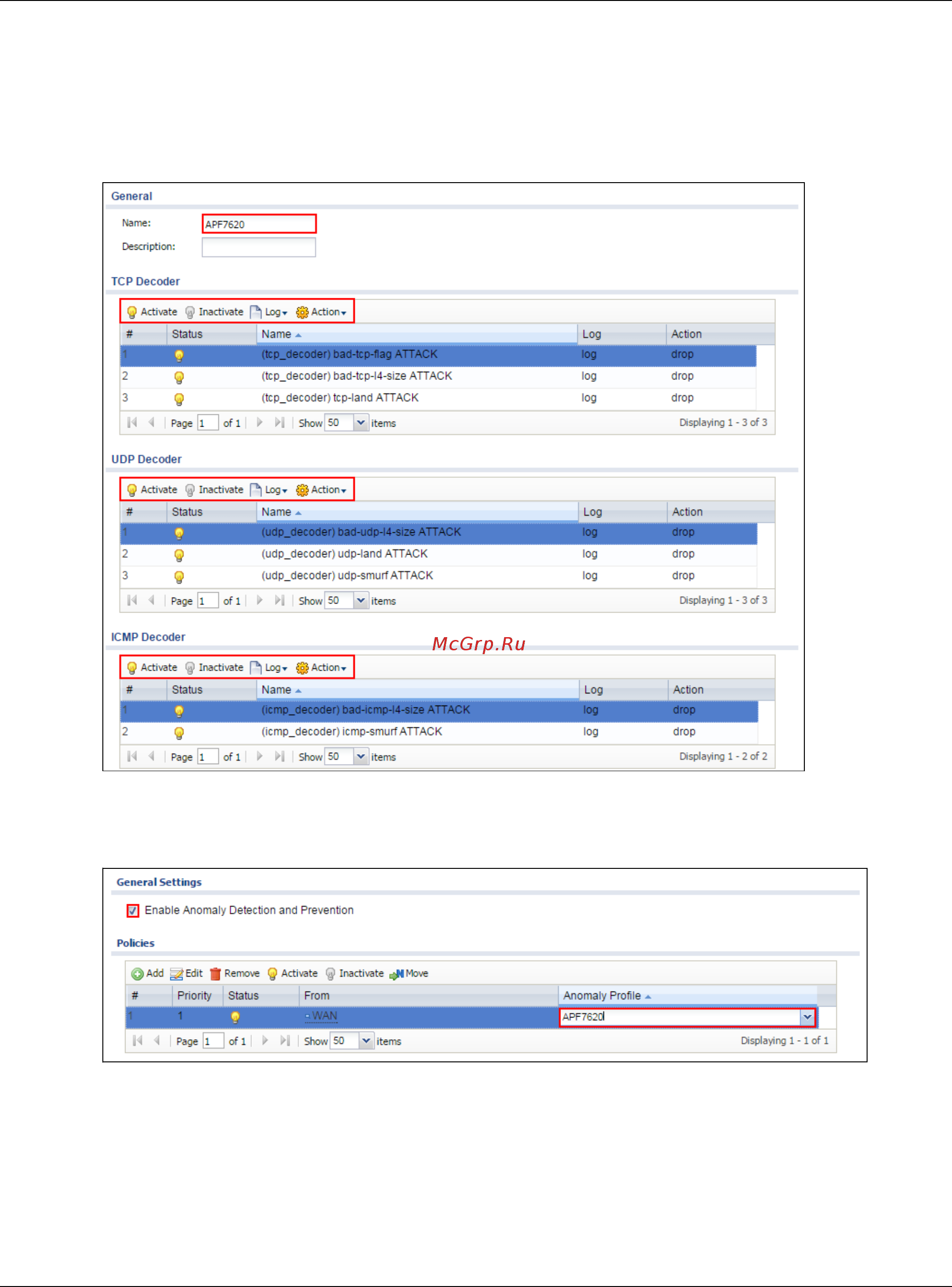

Figure 115 CONFIGURATION > Security Policy > ADP > Profile > Base Profile > Protocol
Anomaly
4 Go to CONFIGURATION > Security Policy > ADP > General, select Enable Anomaly
Detection and Prevention. Then, select the just created Anomaly Profile and click Apply.
Figure 116 CONFIGURATION > Security Policy > ADP > General
3.4.2 Test the Result
1 Download Nmap free security scanner for testing the result: https://nmap.org/download.html
