Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
132
6 This screen provides a summary of the VPN tunnel. Click OK to exit the configuration page.

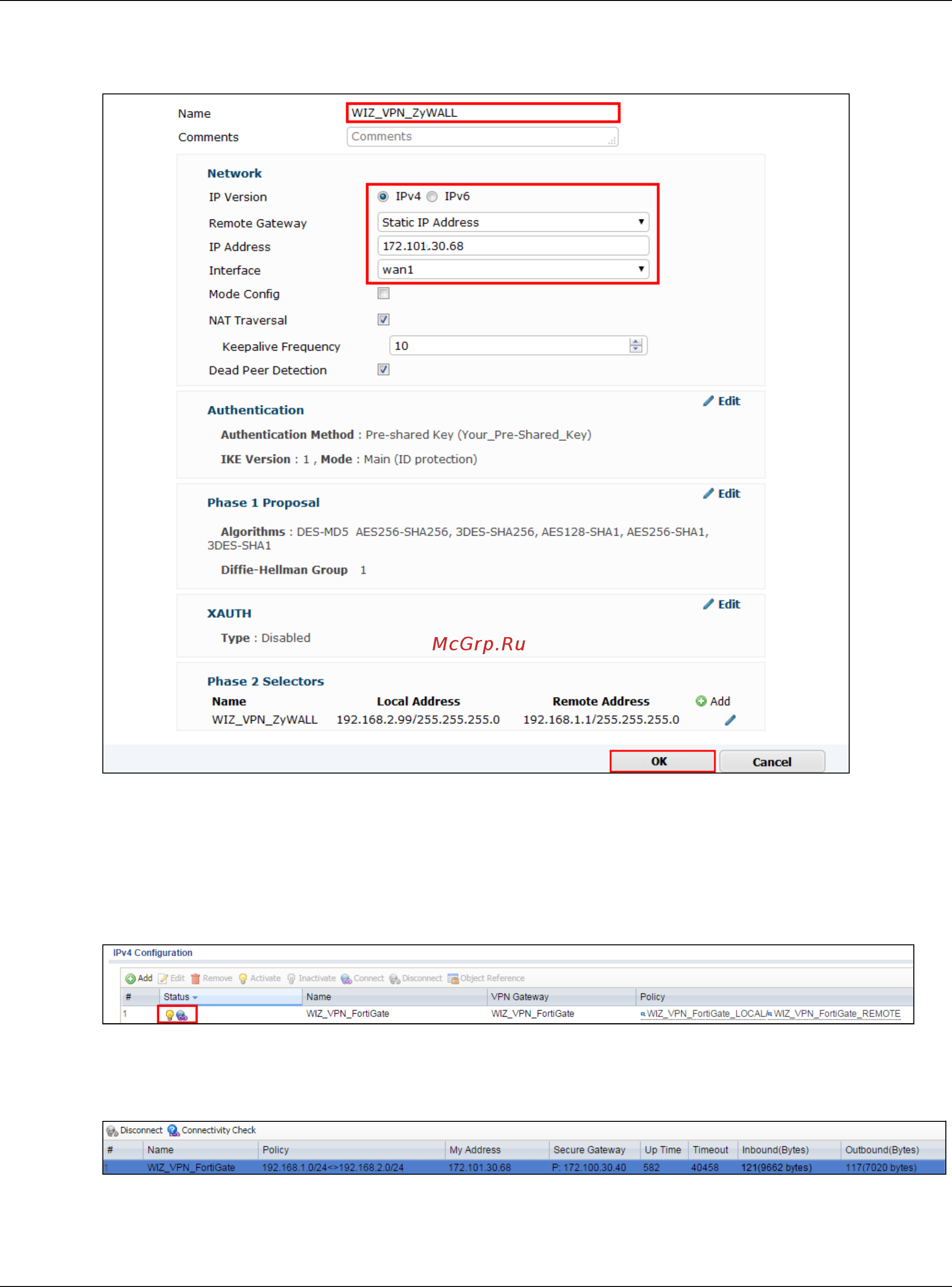

Figure 271 VPN > IPsec > Wizard > Custom VPN Tunnel (No Template)
4.3.3 Test the IPSec VPN Tunnel
1 Go to ZyWALL/USG CONFIGURATION > VPN > IPSec VPN > VPN Connection, click Connect
on the upper bar. The Status connect icon is lit when the interface is connected.
Figure 272 CONFIGURATION > VPN > IPSec VPN > VPN Connection
2 Go to ZyWALL/USG MONITOR > VPN Monitor > IPSec and verify the tunnel Up Time and
Inbound(Bytes)/Outbound(Bytes) traffic.
Figure 273 MONITOR > VPN Monitor > IPSec
