Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
194
4.8.9 Set Up the IPSec VPN Tunnel of ZyWALL/USG without Using VPN
Concentrator
4.8.10 Hub_HQ-to-Branch_A
1 Go to CONFIGURATION > VPN > IPSec VPN > VPN Gateway and select Enable. Type the VPN
Gateway Name used to identify this VPN gateway.
Then, configure the Secure Gateway IP as the Branch A’s Gateway IP address (in the example,
172.16.20.1). Type a secure Pre-Shared Key (8-32 characters) which must match your Branch
A’s Pre-Shared Key and click OK.

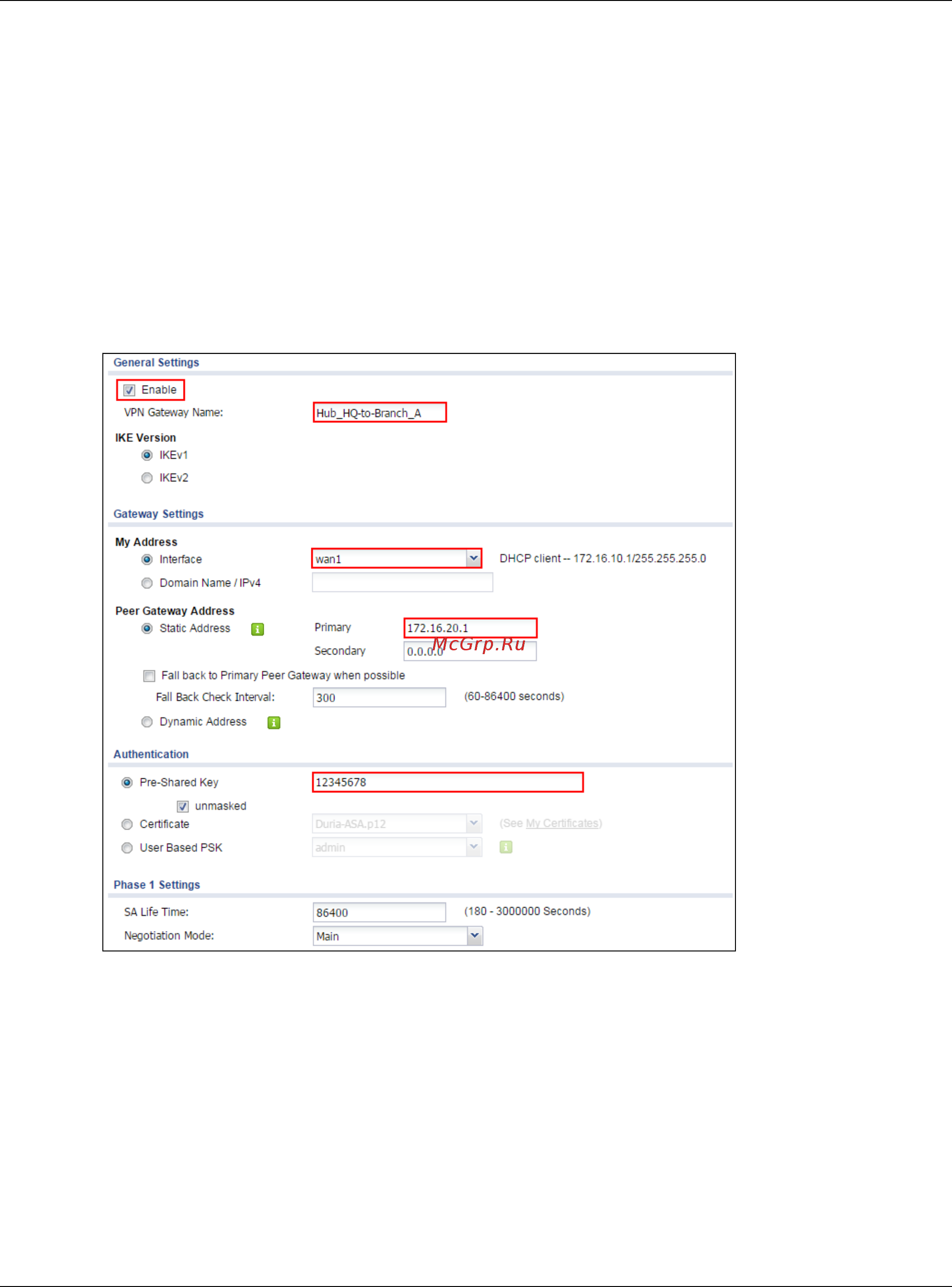

Figure 408 CONFIGURATION > VPN > IPSec VPN > VPN Gateway
