Chapter 5 Create Client-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
241
5.3.2 Set Up the L2TP VPN Tunnel on the iOS Device
1 To configure L2TP VPN in an iOS 8.4 device, go to Menu > Settings > VPN > Add VPN
Configuration and configure as follows.
2 Description is for you to identify the VPN configuration.
Set Server to the ZyWALL/USG’s WAN IP address (172.124.163.150 in this example).
Enter Account and Password which the same as Allowed User created in ZyWALL/USG
(L2TP_Remote_Users/zyx168 in this example).
Set Secret to the Pre-Shared Key of the IPSec VPN gateway the ZyWALL/USG uses for L2TP VPN
over IPSec (zyx12345 in this example).

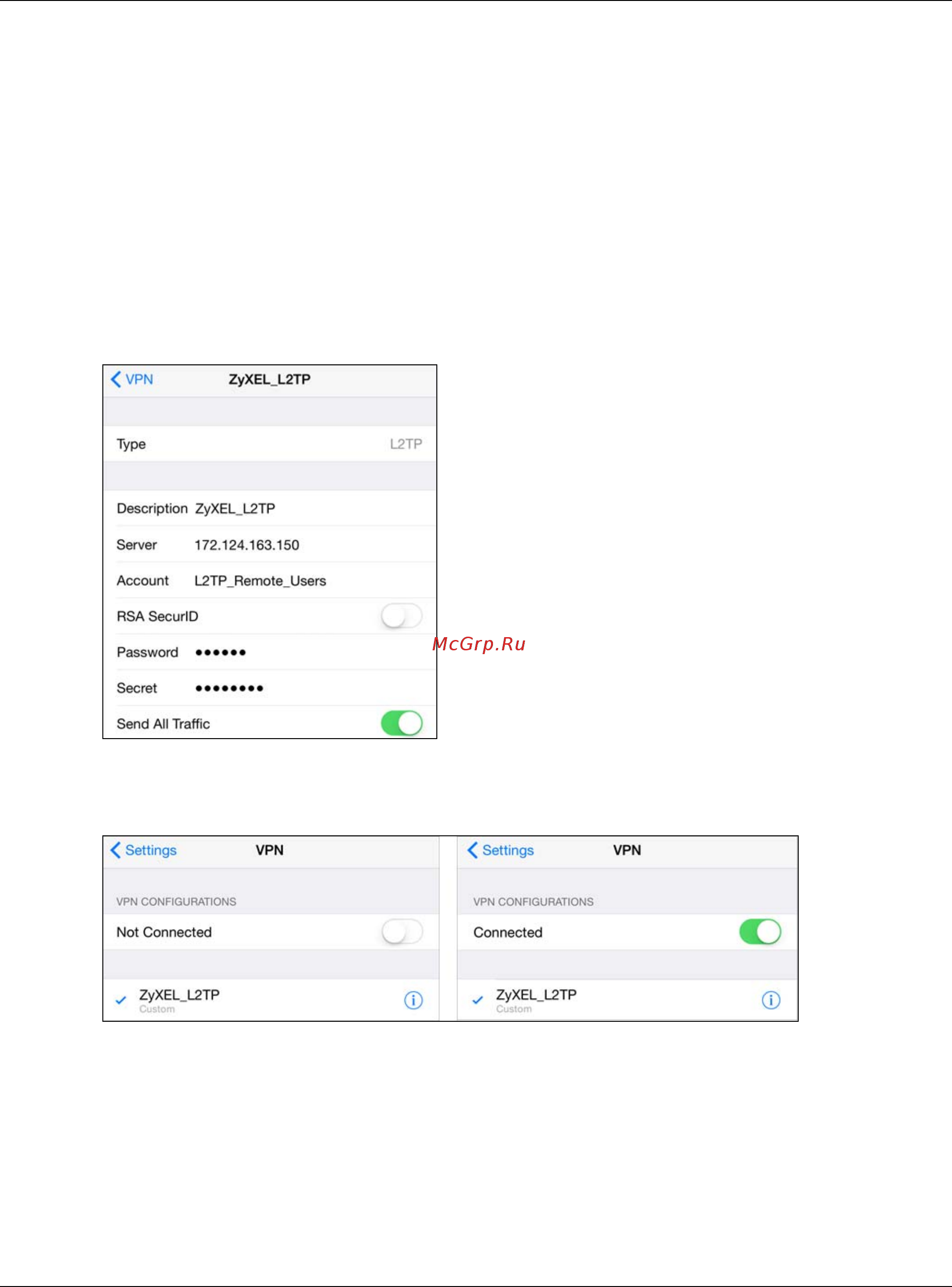

Figure 518 Set the Pre-Shared Key of the IPSec VPN gateway
3 After you create a VPN configuration, slide the button right to the on position to initiate L2TP VPN
session.
Figure 519 Initiate the L2TP VPN Session
