Zyxel ZyWALL 1100 [299/327] What could go wrong
![Zyxel ZyWALL 310 [299/327] What could go wrong](/views2/1169223/page299/bg12b.png)
Chapter 6 Configure IPv6
ZyWALL/USG Series Handbook
299
3 Your computer should get an IPv6 IP address (starting with 2002:7a64:dcee:1: for this example)
from the ZyWALL/USG.

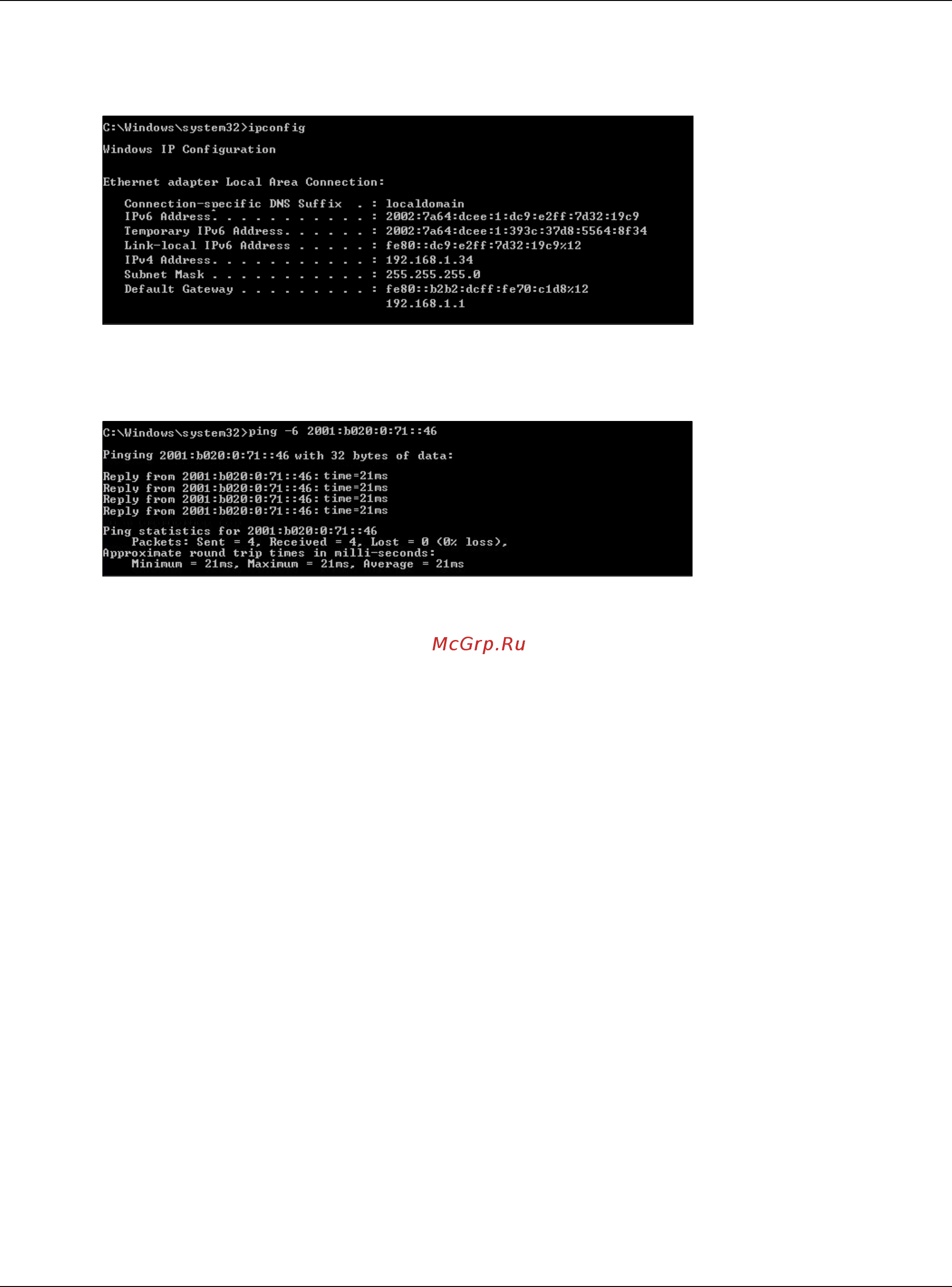

Figure 642 Window 7 > cmd > ipconfig
4 Use the ping -6 [IPv6 IP address] command in a Command Prompt to test whether you can ping a
computer behind ZyWALL/USG_Y. You should get a response.
Figure 643 Window 7 > cmd > ping -6 2001:b020:0:71::46
6.3.5 What Could Go Wrong?
1 If your IPv6 connection is not working, please make sure you enable the WAN1 IPv4 interface. In
IPv6-in-IPv4, the ZyWALL/USG uses the WAN1 IPv4 interface to forward your 6to4 packets to the
IPv4 network.
2 In Windows, some IPv6 related tunnels may be enabled by default such as Teredo and 6to4
tunnels. It may cause your computer to handle IPv6 packets in an unexpected way. It is
recommended to disable those tunnels on your computer.
