3.3.2 Set Up the Security Policy on the ZyWALL/USG for Executives
1 In the ZyWALL/USG, go to CONFIGURATION > Object > User/Group > Add A User to create
User Name/Password for each executive.

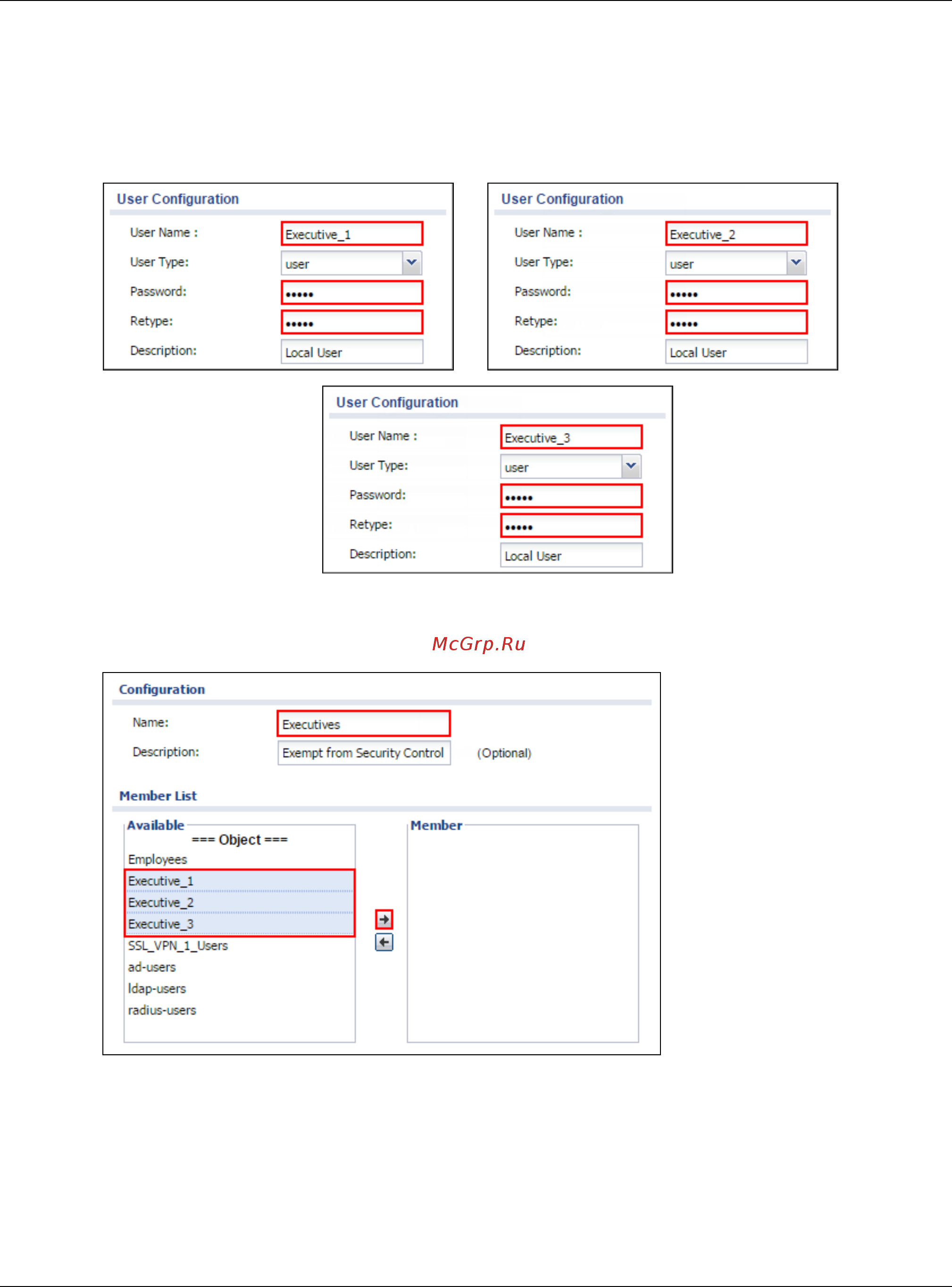

Figure 106 CONFIGURATION > Object > User/Group > Add A User
2 Then, go to CONFIGURATION > Object > User/Group > Group > Add Group to create a
Group Members’ Name and move the just created executives user object to Member.
Figure 107 CONFIGURATION > Object > Address Group > Add Address Group Rule
