Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
106
Scroll down to UTM Profile, select Anti-Virus and select a profile from the list box
(Block_FTP_HTTP_Download in this example).

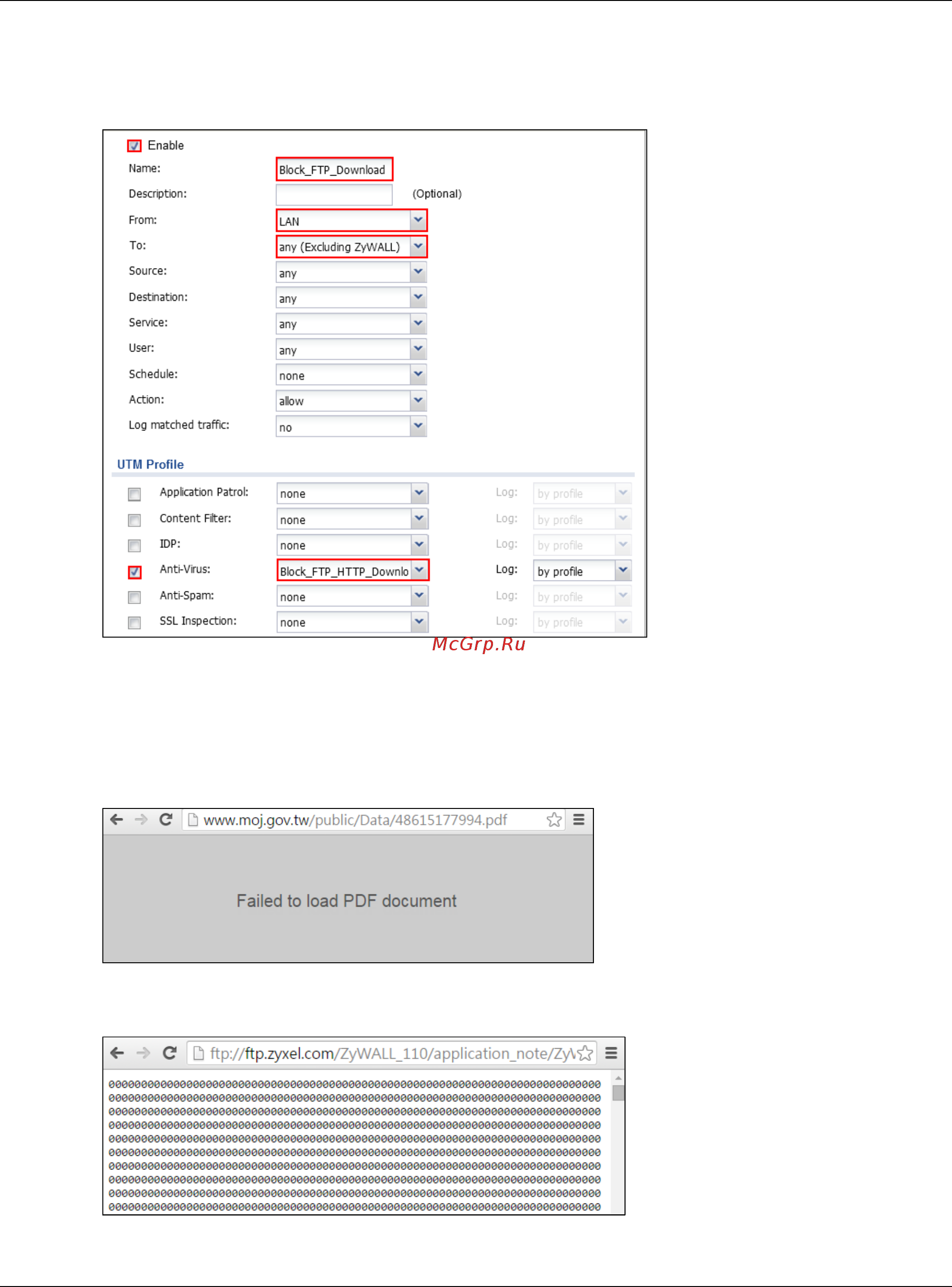

Figure 201 CONFIGURATION > Security Policy > Policy Control
3.11.3 Test the Result
1 When you download a PDF file from the HTTP server, the browser will display: Failed to load PDF
document.
Figure 202 Failed to Load PDF Document
2 When you download a PDF file from the FTP server, the browser won’t be able to display content.
Figure 203 No Content Displays When Downloading a PDF File from the FTP Server
