Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
208
4.9.3 Hub_HQ-to-Branch_B
1 Go to CONFIGURATION > VPN > IPSec VPN > VPN Gateway, select Enable. Type the VPN
Gateway Name used to identify this VPN gateway.
Then, configure the Primary Gateway IP as the Branch B’s wan1 IP address (in the example,
172.16.30.1) and Secondary Gateway IP as the Branch B’s wan2 IP address (in the example,
172.100.130.1). Select Fall back to Primary Peer Gateway when possible and set desired Fall
Back Check Interval time.
Type a secure Pre-Shared Key (8-32 characters) which must match your Branch A’s Pre-Shared
Key and click OK.

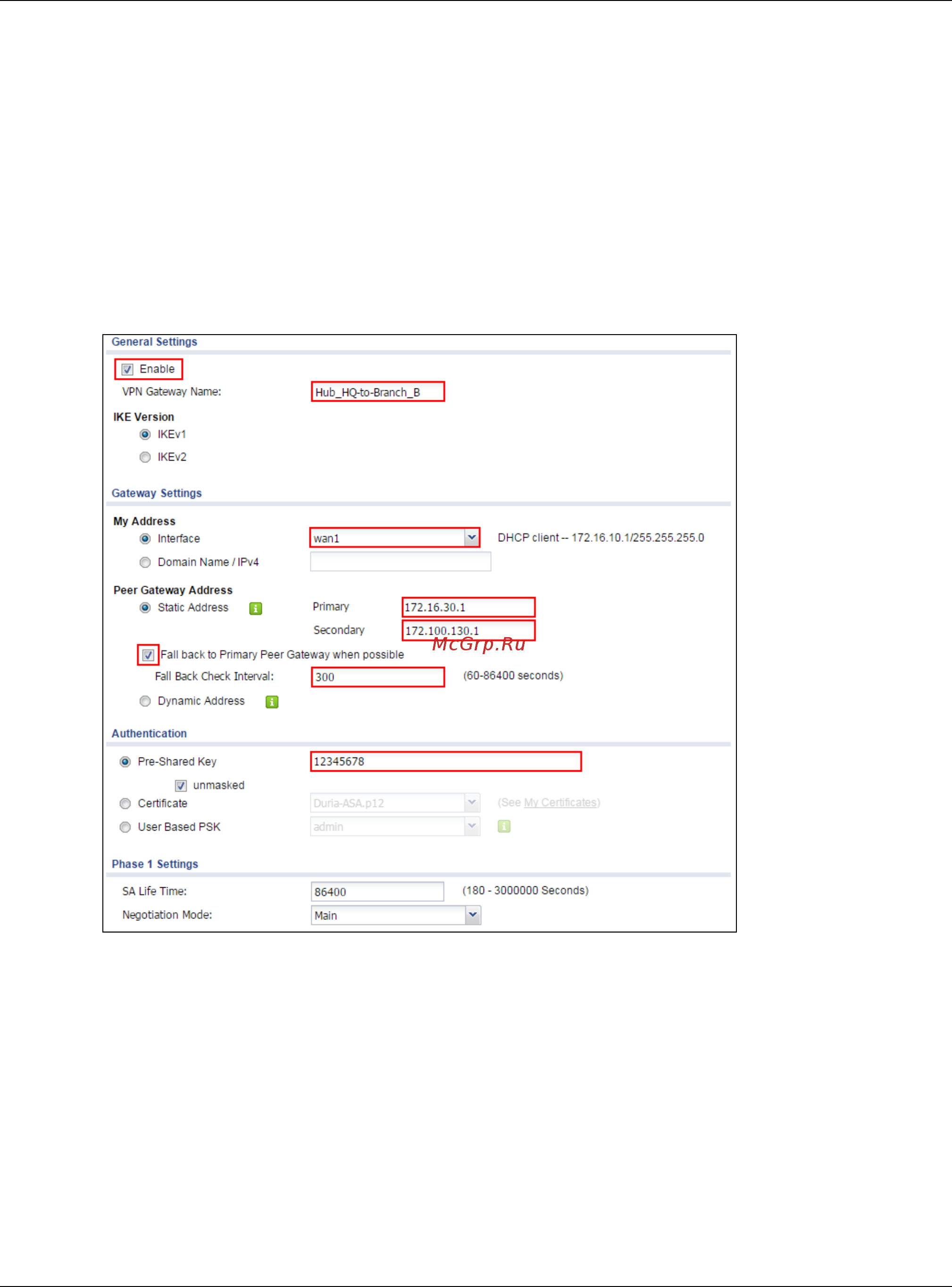

Figure 438 CONFIGURATION > VPN > IPSec VPN > VPN Gateway
