Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
174
For Gateway type, select VPN. For VPN type, select Policy-based. For Resource Group, the
resource group is determined by the Virtual Network that you select. For Location, make sure it's
showing the location that both your Resource Group and VNet exist in.

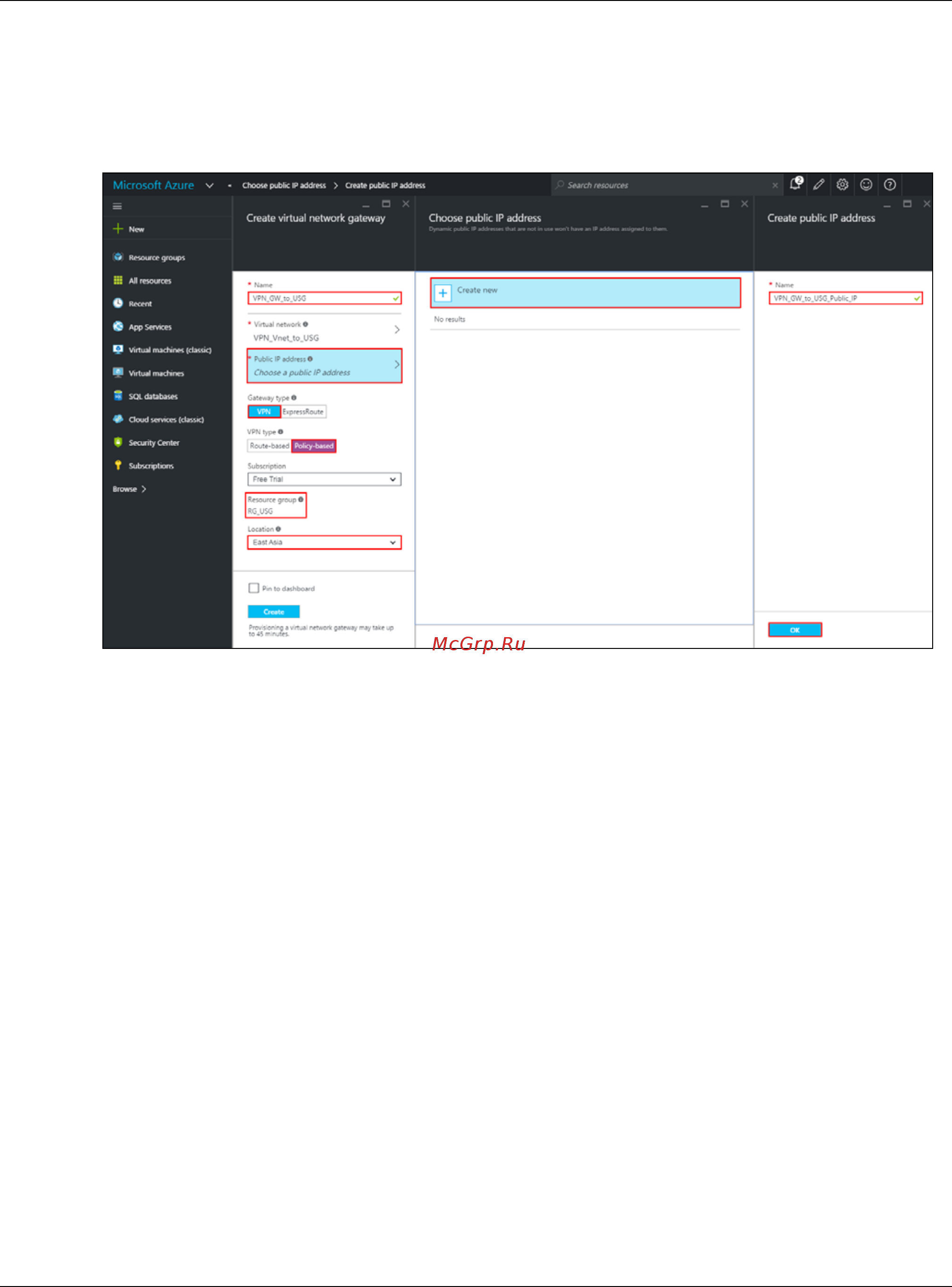

Figure 358
New > Networking > Create virtual network gateway > Choose
public IP address > Create public IP address
6 In the Azure Portal, navigate to New > Networking > Local network gateway. The local
network gateway refers to your ZyWALL/USG public IP and local subnet settings.
On the Create local network gateway blade, specify a Name for your ZyWALL/USG gateway object.
Specify public IP address of your ZyWALL/USG. It cannot be behind NAT and has to be reachable by
Azure. Address space refers to the address ranges on your ZyWALL/USG local network. For
Resource Group, select the resource group that you created before. For Location, if you are
creating a new local network gateway, you can use the same location as the virtual network
gateway. But, this is not required. The local network gateway can be in a different location.
