Zyxel ZyWALL 1100 [191/327] Test the ipsec vpn tunnel
![Zyxel ZyWALL 110 [191/327] Test the ipsec vpn tunnel](/views2/1169223/page191/bgbf.png)
Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
191
4.8.7 Test the IPSec VPN Tunnel
1 Go to ZyWALL/USG CONFIGURATION > VPN > IPSec VPN > VPN Connection, click Connect
on the upper bar. The Status connect icon is lit when the interface is connected.

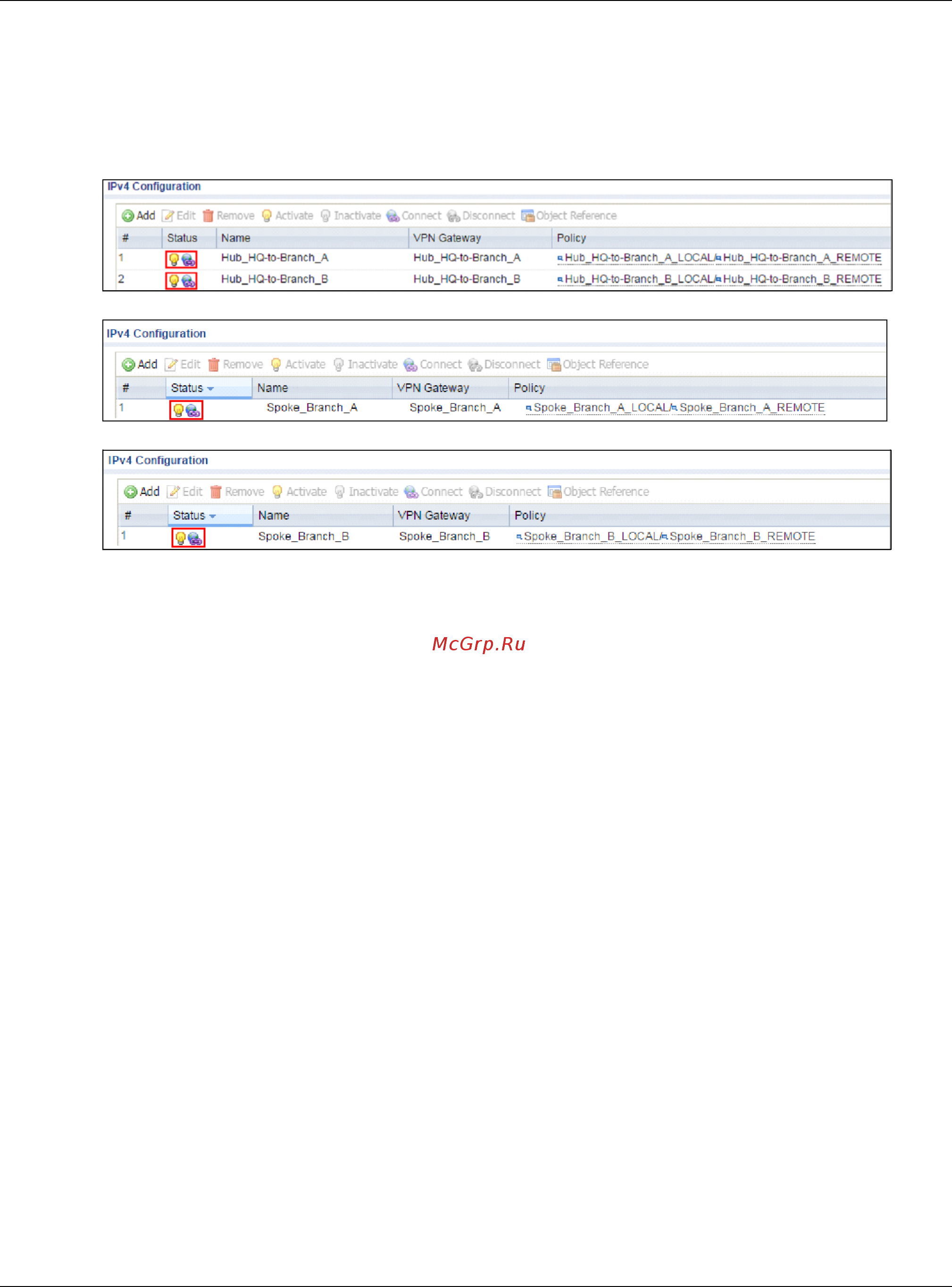

Figure 399 Hub_HQ > CONFIGURATION > VPN > IPSec VPN > VPN Connection
Figure 400 Spoke_Branch_A > CONFIGURATION > VPN > IPSec VPN > VPN Connection
Figure 401 Spoke_Branch_B > CONFIGURATION > VPN > IPSec VPN > VPN Connection
