Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
118
7 Go to CONFIGURATION > VPN > IPSec VPN > VPN Gateway and click Show Advanced
Settings. Configure Authentication > Peer ID Type as Any to let the ZyWALL/USG does not
require to check the identity content of the remote IPSec router.

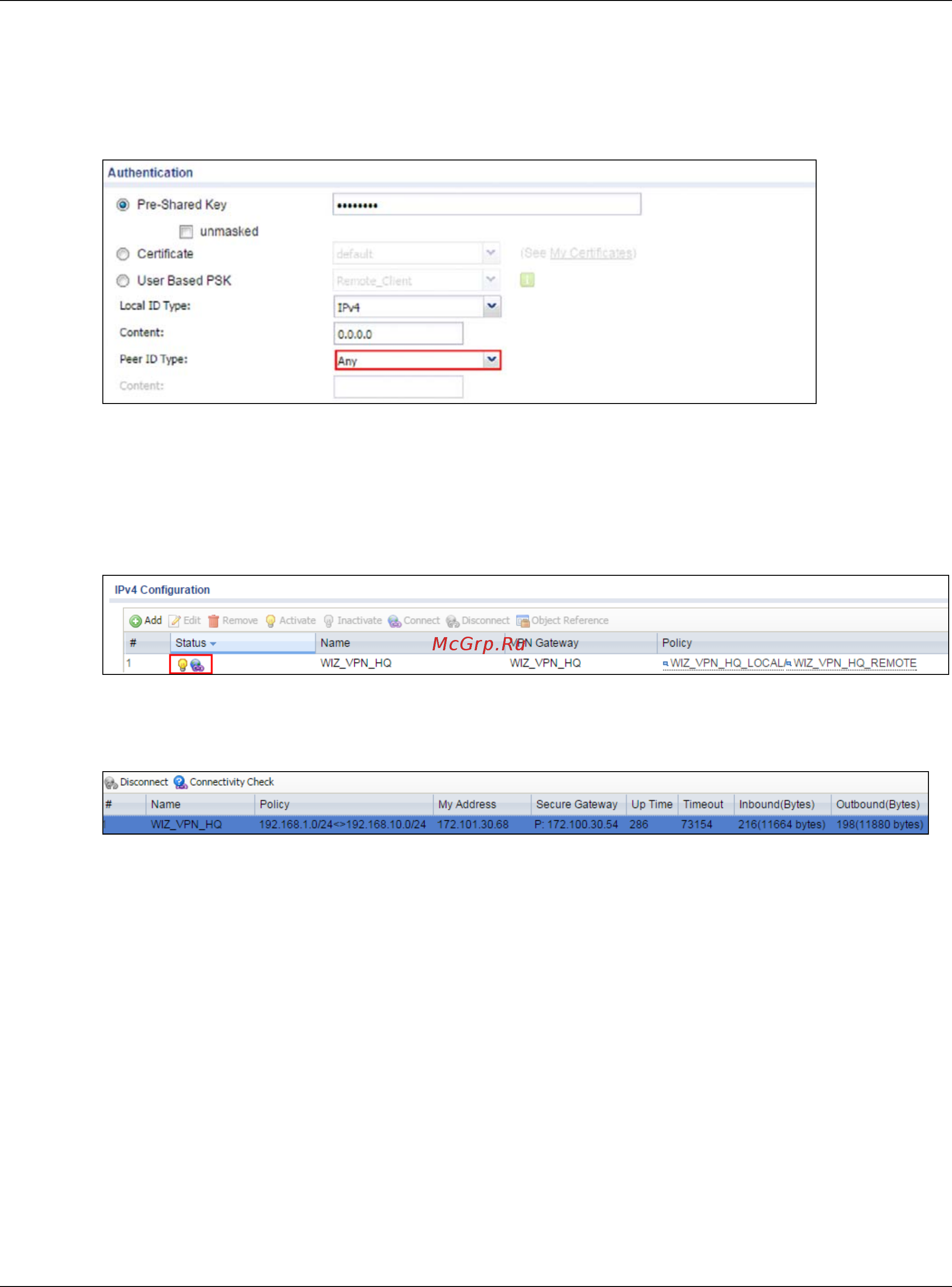

Figure 229 CONFIGURATION > VPN > IPSec VPN > VPN Gateway > Show Advanced
Settings > Authentication > Peer ID Type
4.1.3 Test the IPSec VPN Tunnel
1 Go to ZYWALL/USG CONFIGURATION > VPN > IPSec VPN > VPN Connection, click Connect
on the upper bar. The Status connect icon is lit when the interface is connected.
Figure 230 CONFIGURATION > VPN > IPSec VPN > VPN Connection
2 Go to ZyWALL/USG MONITOR > VPN Monitor > IPSec and verify the tunnel Up Time and
Inbound(Bytes)/Outbound(Bytes) Traffic.
Figure 231 MONITOR > VPN Monitor > IPSec
