Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
198
4.8.12 Spoke_Branch_A
1 Go to CONFIGURATION > VPN > IPSec VPN > VPN Gateway, select Enable. Type the VPN
Gateway Name used to identify this VPN gateway.
Then, configure the Secure Gateway IP as the Hub_HQ’s Gateway IP address (in the example,
172.16.10.1). Type a secure Pre-Shared Key (8-32 characters) which must match your
Hub_HQ’s Pre-Shared Key and click OK.

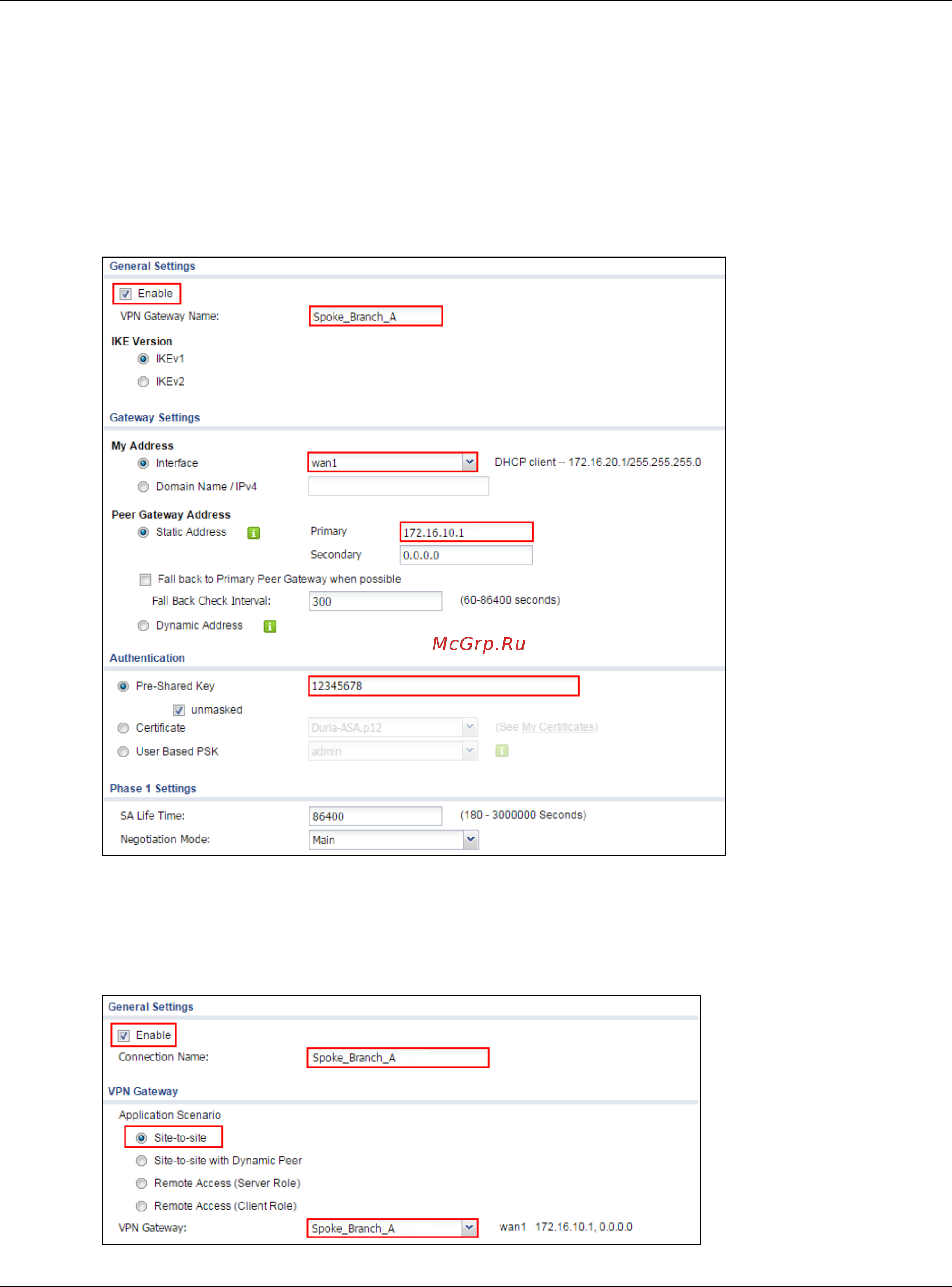

Figure 416 CONFIGURATION > VPN > IPSec VPN > VPN Gateway
2 Go to CONFIGURATION > VPN > IPSec VPN > VPN Connection and select Enable. Type the
Connection Name used to identify this VPN connection. Select scenario as Site-to-site and VPN
Gateway which is configured in Step 1.
Figure 417 CONFIGURATION > VPN > IPSec VPN > VPN Connection > General Settings
and VPN Gateway
